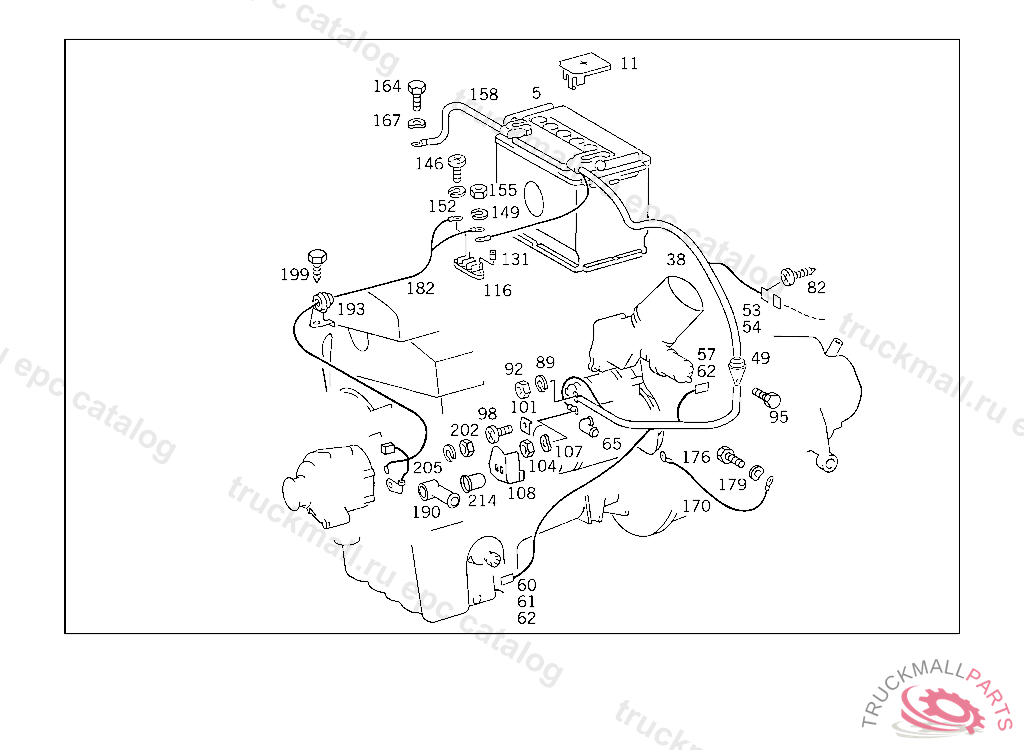

Поз.
Артикул
Описание
5
BATTERY74 AH
11
BOOT POS. POLE
38
POSITIVE CABLE FROM BATTERY TO STARTING MOTOR, FROM MODEL YEAR'89
49
BRACKET
53
PLUG HOUSING INBOARD CABLE HARNESS PLUG-CONNECTION
54
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
57
PIN BUSHING HOUSING SPEED TRANSMITTER
60
PLUG. PIN BUSHING HOUSING NTC FEELER
61
GROMMETTO 014 545 07 28
62
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
65
BOOT CABLE TO STARTING MOTOR,TERMINAL 30, 003 078976 086 003333 EXCEPT FOR 002924,002958,002959,002981,003004,003013,003017,003025,003114,003171,003282-003298,003300-003332.
82
SHEET METAL SCREW , Replaced By: N007981004233
89
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
92
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
95
SCREW PUMP TO BRACKET
98
SCREW ELECTRIC CABLE TO HORN
101
MOUNTING BOW CABLE TO STARTING MOTOR,TERMINAL 50
116
SOCKET-TERMINAL STRIP SPRING DOME
131
LOCK FRONT PANEL,LATERAL RIGHT,9/87
146
SCREW , Replaced By: N007985004107
146
SCREW COVER PLATE TO COVER PLATE M 6 X 10
146
SCREW STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET M4X10
149
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
152
LOCK WASHER T-FITTING TO BRACKET
155
NUT BALL PIVOT TO LEVER
158
NEG. CABLE FROM BATTERY NEG. POLE TO GROUND 220 MM
164
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
167
SPRING WASHER , Replaced By: N000137008212
170
NEG. CABLE , Replaced By: A9015400741
176
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
179
SPRING WASHER , Replaced By: N000137008212
182
CABLE HARNESS FROM ALTERNATOR TO CABLE CONNECTOR 70 A
190
BOOT ALTERNATOR,TERMINAL B+
193
BRACKET
199
SHEET METAL SCREW BRACKET TO CAB FLOOR
202
NUT , Replaced By: N304032008006
202
NUT
202
NUT TACHOGRAPH TO BRACKET
205
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
205
LOCK WASHER T-FITTING TO BRACKET
