Mercedes N914130006606 - Болт

300 TE JAPAN 124.090 FROM 09/89

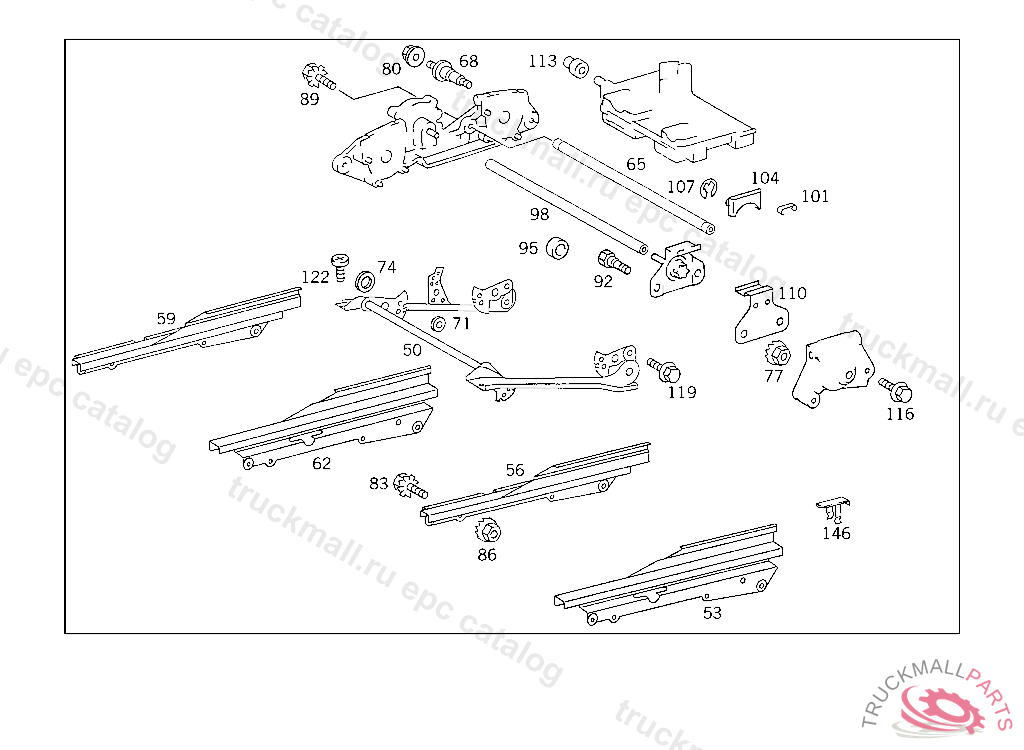

91 FRONT SEATS - 090 SEAT ADJUSTER IL. 2

Поз.
Артикул
Описание
50
A1249407464
SEAT ADJUSTER RIGHT FRONT SEAT,6/90
50
A1249407764
SEAT ADJUSTER ELECTRIC,WITH PROGRAMMING,LEFT,F 149521
50
A1249405764
SEAT ADJUSTER ELECTRIC,WITH PROGRAMMING,LEFT FOR STEERING COLUMN ADJUSTMENT,F 149520 NOT FOR SAUDI-ARABIA
50
A1249405464
SEAT ADJUSTER ELECTRIC,RIGHT,F 149520
53
A1249101789
GUIDE RAIL OUTSIDE LEFT
56
A1249101589
GUIDE RAIL INSIDE LEFT
59
A1249101889
GUIDE RAIL OUTSIDE RIGHT
62
A1249101689
GUIDE RAIL RIGHT SEAT,LEFT,FOR ELECTRIC SEAT ADJUSTMENT
65
A1249100696
CONNECTION
68
A1249190115
PIN ,A 297973
71
A0039907640
WASHER
74
A0009906440
WASHER ,4 315876
77
N913013008000
NUT BRACKET TO PARTITION PANEL,1.9.89 B 065822 F 122353
80
A0009902350
NUT
83
N914114006006
SCREW
83
N914112005003
SCREW
86
N913013006001
NUT
89
N914114008015
SCREW
92
A0009901604
SCREW TO BEARING
95
A1249190128
BUSHING
98
A1249190498
SHAFT ,A 297973
101
A2019190325
GUIDE ,A 297973
104
A2019190125
GUIDE
107
N006799009002
LOCK PLATE
110
A2019190042
SUPPORT
110
A2019190142
SUPPORT
113
A0079977981
GROMMET
116
A0009909522
SCREW
119
A2019900422
SCREW HORN TO BRACKET
122
N914130006606
SCREW VALVE TO BRACKET,5 465030
146
A1249100087
STOP ELECTRIC FRONT SEAT ADJUSTMENT
