300 TE JAPAN
124.090 FROM 09/89

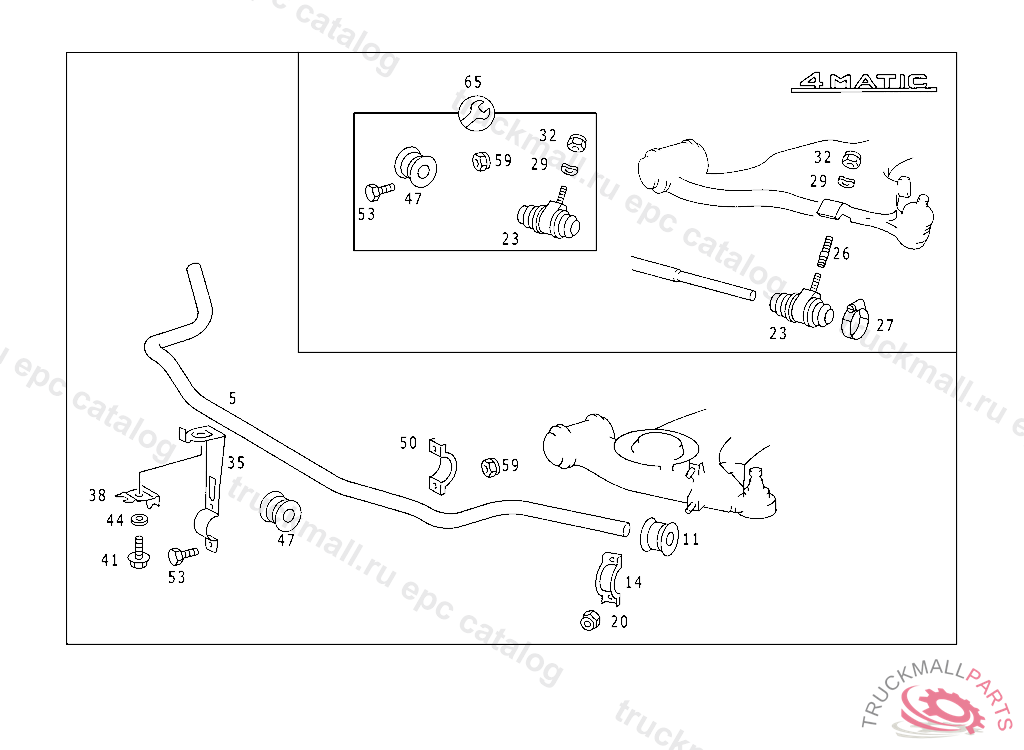

35 REAR AXLE
001 REAR AXLE WITH A S D ON VEHICLES WITH, OR LESS, A B S (FOR TYPE 140, SEE STANDAR IL.2

Mercedes N304017008021 - АВТОЗАПЧАСТЬ

300 TE JAPAN 124.090 FROM 09/89

35 REAR AXLE - 001 REAR AXLE WITH A S D ON VEHICLES WITH, OR LESS, A B S (FOR TYPE 140, SEE STANDAR IL.2

Поз.
Артикул
Описание
5
A1243236865
TORSION BAR FRONT
5
A1243237765
TORSION BAR FRONT, F 042994
11
A1243235085
RUBBER MOUNTING TORSION BAR TO CONTROL ARM
11
A1243235185
RUBBER MOUNTING TORSION BAR TO CONTROL ARM, ONLY APPLICABLE TO VEHICLES WITH SPORTS UNDERCARRIAGE
14
A2013232340
BRACKET TORSION BAR TO CONTROL ARM
20
N913023008003
NUT HORN TO BRACKET M8
35
A1243230426
CLAMP TORSION BAR TO FRAME,LEFT
35
A1243230526
CLAMP TORSION BAR TO FRAME,RIGHT
38
A1243230025
PLATE BRACKET TO SIDE MEMBER
41
N914125010319
SCREW BRACKET TO SIDE MEMBER
44
N000125010532
WASHER RADIATOR TO RUBBER MOUNTING
47
A1243234685
RUBBER MOUNTING TORSION BAR TO FRAME, F 042994
47
A1243234585
RUBBER MOUNTING TORSION BAR TO FRAME, F 042993
50
A1243231140
BRACKET
53
N304017008021
SCREW PIPE CLAMP
59
N913023008003
NUT HORN TO BRACKET M8
