Главная
›
Mercedes
›
CAR
›
S 430 4MATIC
›
220.083
›

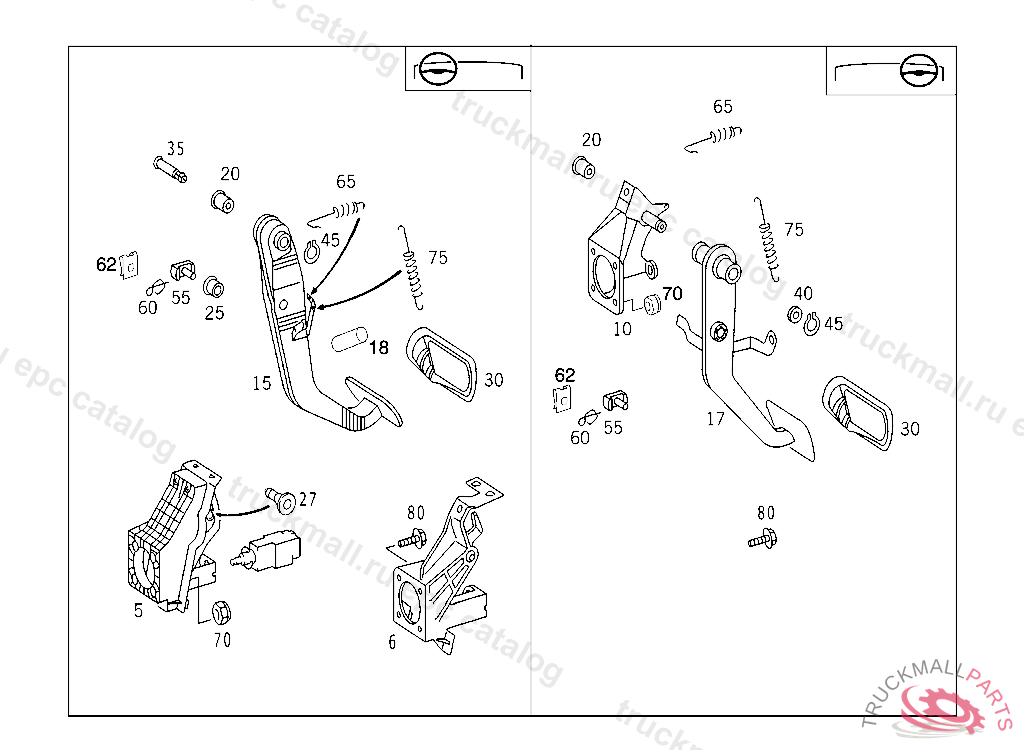

29 PEDAL ASSEMBLY
›
015 PEDAL ASSEMBLY WITH BEARING
Mercedes A2032920174 - Болт
S 430 4MATIC 220.083
29 PEDAL ASSEMBLY - 015 PEDAL ASSEMBLY WITH BEARING
Поз.
Артикул
Описание
5
A2202901119
BEARING BRACKET
10
A2202900719
BEARING BRACKET
15
A2202902918
PEDAL
15
A2202902718
BRAKE PEDAL , Replaced By: A2202902918
17
A2202901918
BRAKE PEDAL , Replaced By: A2202903118
17
A2202903118
PEDAL
18
A0009970581
GROMMET5.0 MM
20
A1242920050
BUSHING BRAKE PEDAL
25
A2102920150
BUSHING PEDAL ASSEMBLY
27
A1682910055
PLUG
30
A1232910082
PAD BRAKE PEDAL
35
A1682910374
PIN CLUTCH PEDAL TO BEARING BRACKET
40
A1152910076
WASHER PEDALS TO PIVOT PINS
45
A0079942041
LOCK STOP TO BEARING BRACKET
55
A2032920174
PIN BRAKE PEDAL TO BRAKE BOOSTER
60
N912011008000
LOCK ROD TO BRAKE PEDAL,L 01.03.07B 01.03.07
62
N912002008003
LOCK PULL TO FASTENER
65
A2209930510
SPRING BRAKE PEDAL
70
N000000003175
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
70
N913023008003
NUT HORN TO BRACKET M8
75
A1409930510
SPRING BRAKE PEDAL RELEASE SPRING
75
A2209930010
SPRING BRAKE PEDAL RELEASE SPRING
