Mercedes A0069977348 - КОЛЬЦО

E 300 TURBODIESEL/4MATIC 124.393 200-320 FROM 10/92, 250D-300D FROM 7/93

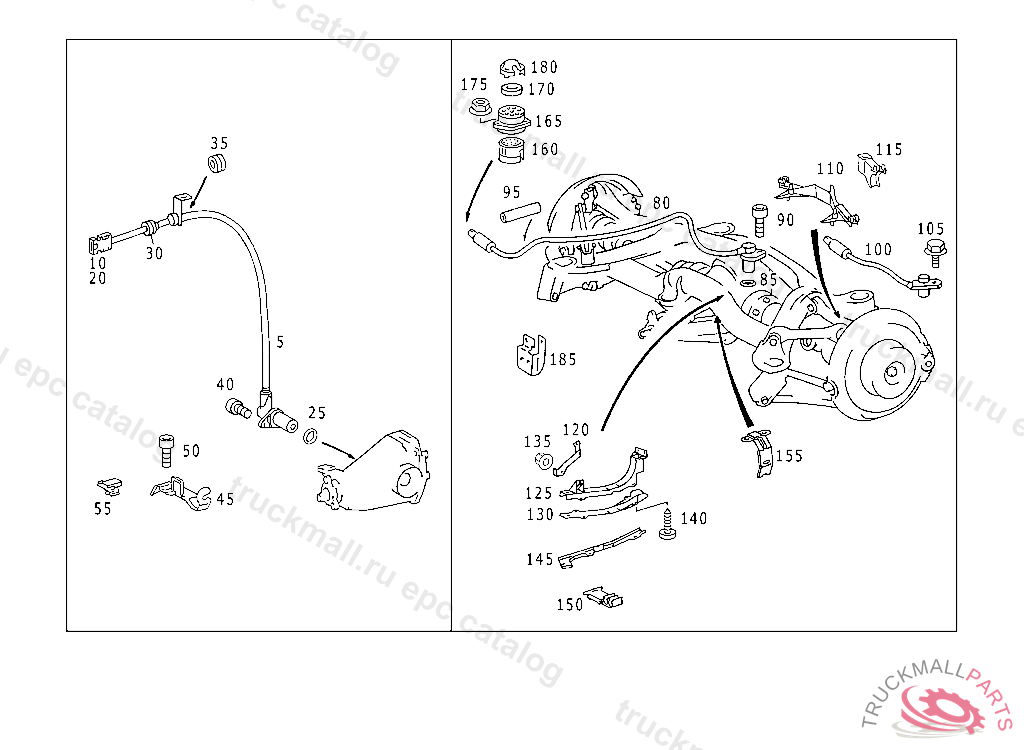

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 680 REAR AXLE WIRING

Поз.
Артикул
Описание
5
A1245401917
SENDER UNIT REAR AXLE,F 005650
10
A0125450428
PIN BUSHING HOUSING BIPOLAR
20
A0135457928
PLUG PIN , 107.042 L.H.D. A 005252 107.042 R.H.D. A 007245 123. L.H.D. A 154544,F 019237 123. R.H.D. A 118487,F 020926
25
A0069977348
SEAL RING
25
A0149979748
SEAL RING USED WITH STEEL VERSION,F 005650
30
A0019971481
GROMMET , UP TO CHASSIS123.A 182585 F 027779 126.A 087563
35
A0009973181
GROMMET BREATHER LINE
40
N914125006502
SCREW SPEED SENSOR TO REAR AXLE HOUSING
165
A0005402724
CASE REAR AXLE TRANSFER CASE PLUGCONNECTION
170
A0005453880
GASKETTO 000 540 27 24
175
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
180
A0005451246
COVERING CLIPPED ONTO REAR AXLE PLUG DISTRIBUTOR
