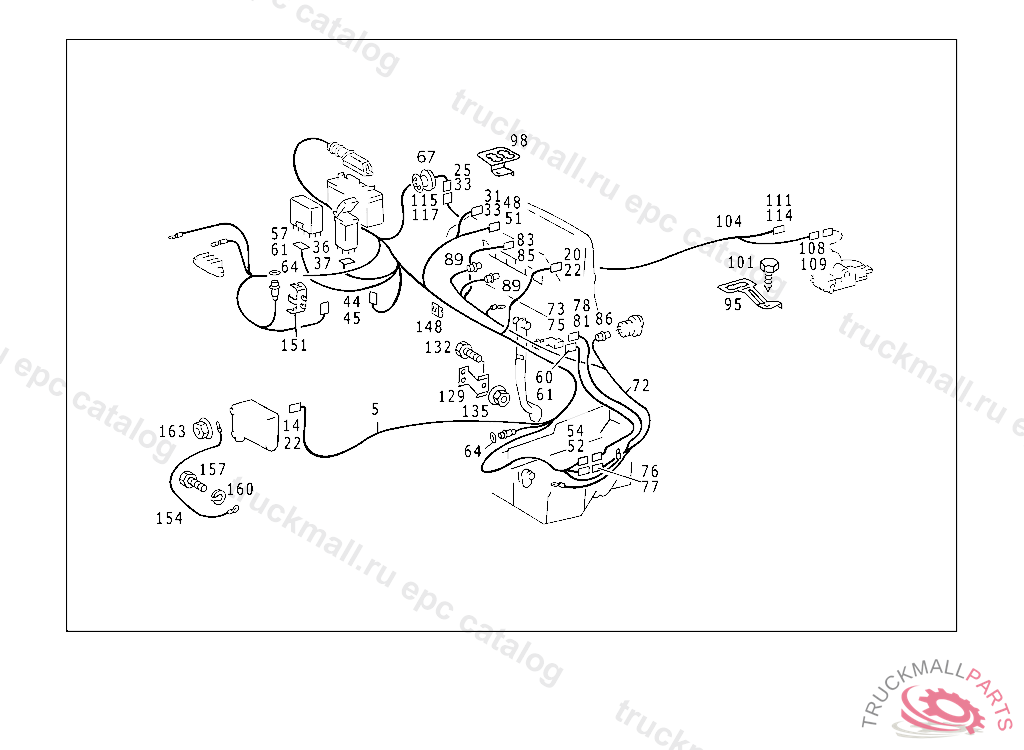

E 300 TURBODIESEL/4MATIC - 124.393 200-320 FROM 10/92, 250D-300D FROM 7/93 - 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
Поз.
Артикул
Описание
73
CASE 4-POLE
75
ROUND PIN BUSHING2.5 MM2
83
COVER
83
PLUG HOUSING
85
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
86
ROUND PIN BUSHING LIGHT SWITCH
89
SOCKET
148
CLIP
151
BRACKET ABS PLUG-CONNECTION, C 009356 ALSO INSTALLED ON B 891779 - C 009354 WITH CODE 859
154
NEG. CABLE
157
SCREW COVER PLATE TO COVER PLATE M 6 X 12
160
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
163
NUT HOOK TO BRACKET
