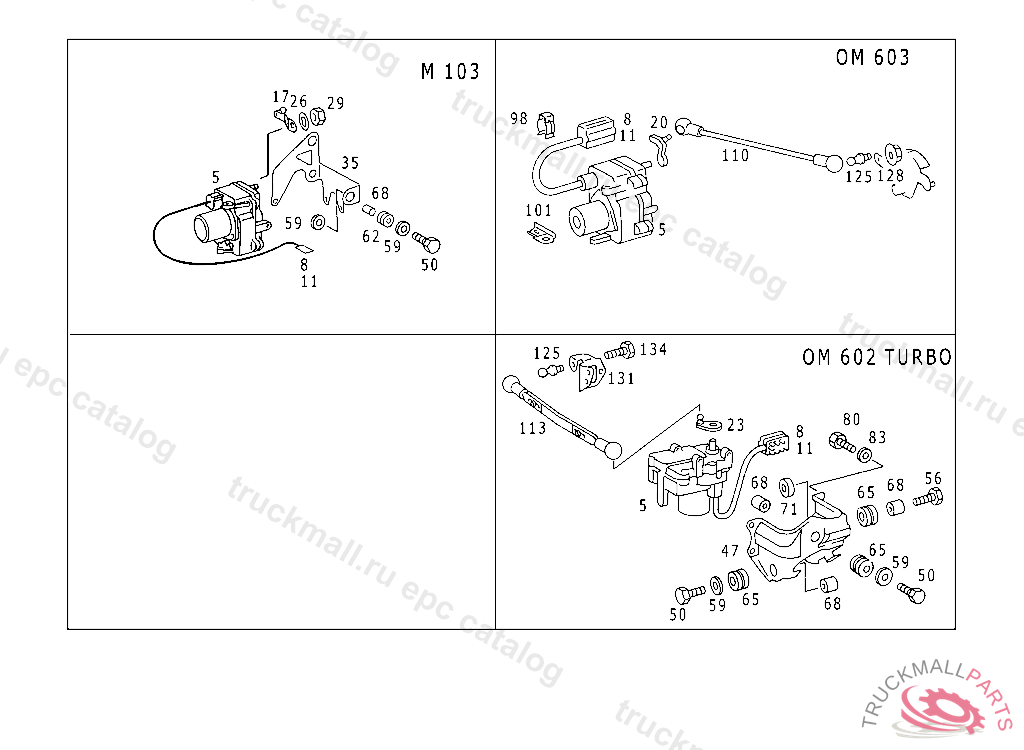

E 300 TURBODIESEL/4MATIC - 124.393 200-320 FROM 10/92, 250D-300D FROM 7/93 - 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
Поз.
Артикул
Описание
5
CONTROL UNIT ACTUATOR
8
COVERTO 006 545 81 28
8
PLUG HOUSING FINAL CONTROL ELEMENT, 8-POLE
11
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
20
LEVER
26
LOCK
29
NUT
50
SCREW 3/2-WAY VALVE TO BRACKET
59
WASHER AIR BAFFLE AND BRACKET TO RADIATOR
65
GROMMET FINAL CONTROL ELEMENT TO BRACKET
68
SPACER TUBE ACTUATOR TO BRACKET
68
SPACER ACTUATOR TO BRACKET, Replaced By: A0009923760
98
BRACKET ELECTRIC CABLE TO HEATING WATER HOSE
110
ROD
