Поз.
Артикул
Описание

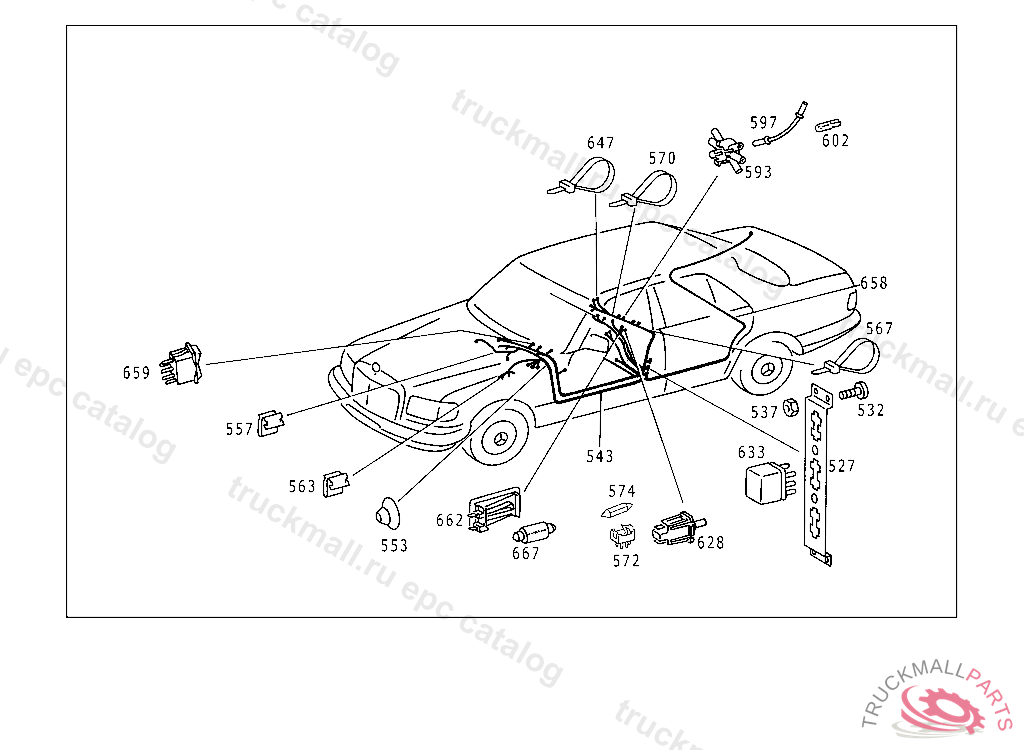

527
BRACKET RELAY
532
SCREW ELECTRIC CABLE TO FUSE BOX
537
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
543
CABLE HARNESS PARTITION PANEL
543
ELECTRIC CABLE
543
CABLE HARNESS PARTITION PANEL
543
ELECTRIC CABLE
553
GROMMET , Replaced By: A1109971581
557
CLIP (HOSE LINE TO BRAKE BOOSTER)
563
CLIP ATTACHMENT,BRANCH-OFFS
567
LOOM TIE
570
LOOM TIE TO MOUNT PLASTIC PIPING
572
FUSE BOX AT FUSE BOX
574
FUSE25 A
593
BRACKET
597
LIGHT GUIDE ROCKER SWITCH LIGHT GUIDE
602
BULB , Replaced By: A6885447093
602
BULB , Replaced By: N000000001061
628
SWITCH DOOR CONTACT
633
RELAY , 123.003,028 105805 123.026 106004 123.030 032306 123.033 090757 123.053 023337 123.086 007202 123.093 009553 123.120 262872 123.102,103,125 255626 123.123 254722 123.105,132 240923 123.130 240457 123.183 016222 123.190 022642 123.200 040194 123.220 031448 123.223 040309 123.243 006912 123.280 001558 123.283 005502
633
RELAY
647
LOOM TIE LINE MOUNTING 280 MM
647
LOOM TIE , UP TO CHASSIS: 108.012 UNTIL PRODUCTION STOP 108.016 042417 108.018,019 043374 109.016 002452
658
ELECTRIC CABLE SLIDING ROOF
659
SWITCH SLIDING ROOF,FRONT
662
INTERIOR LAMP GLOVE COMPARTMENT
667
BULB12V/5W
999
COVER AT WINDOW RUN,LATERAL LEFT AND RIGHT, FRONT
999
COVER AT WINDOW RUN,LATERAL LEFT AND RIGHT, REAR
999
DUCT TOP RIGHT, FROM CHASSIS:126.023078014033039681037028347
999
DUCT TOP LEFT, FROM CHASSIS:126.023078014033039681037028347
