Поз.
Артикул
Описание
5

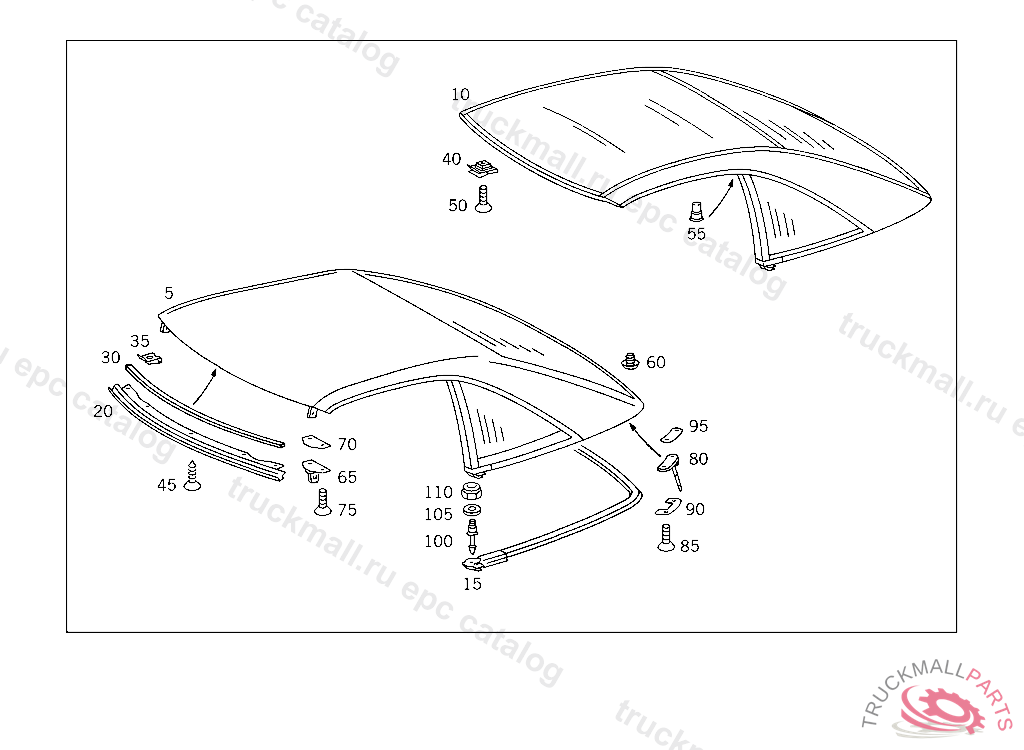

HARDTOP USED WITH STEEL VERSION,F 107603 WHEN ORDERING, PLEASE STATE IDENT (CHASSIS) NO. WHEN ORDERING PLEASE STATE OUTSIDE PAINT,EQUIPMENT CODE,AND SPECIAL EQUIPMENT
10
HARDTOP USED WITH GLASS VERSION,F 107603 WHEN ORDERING, PLEASE STATE IDENT (CHASSIS) NO. WHEN ORDERING PLEASE STATE OUTSIDE PAINT,EQUIPMENT CODE,AND SPECIAL EQUIPMENT
15
SEAL BOTTOM
20
RAIL USED WITH STEEL VERSION
20
RAIL USED WITH GLASS VERSION
30
SEALING CORD , ORDER BY THE METER
35
LOCK AT BRACKET,F 029921
40
NUT RETAINER COVERING TO BODY
45
SHEET METAL SCREW ORNAMENTAL COVER TO DOOR
50
SCREW USED WITH GLASS VERSION
55
NUT USED WITH GLASS VERSION
60
PLUG , Replaced By: A0009972020
65
PIN HARDTOP,FRONT
70
PAD PIVOT TO FOLDING TOP RAIL
75
SCREW PIVOT TO FOLDING TOP RAIL
80
PIN HARDTOP LOCK,REAR RIGHT
80
PIN HARDTOP LOCK,REAR LEFT
80
PIN HARDTOP LOCK,REAR LEFT,F 034121
80
PIN HARDTOP LOCK,REAR RIGHT,F 034121
85
SCREW PIVOT TO FOLDING TOP RAIL
90
PLATE PIVOT TO BOTTOM FRAME
95
PLATE BETWEEN JOURNAL AND HARDTOP
100
PIN ON BOTTOM FRAME,SERVING AS SEAT IN B-PILLAR MOUNTING
105
WASHER RADIATOR TO RUBBER MOUNTING
110
NUT BRACKET TO CROSS MEMBER
