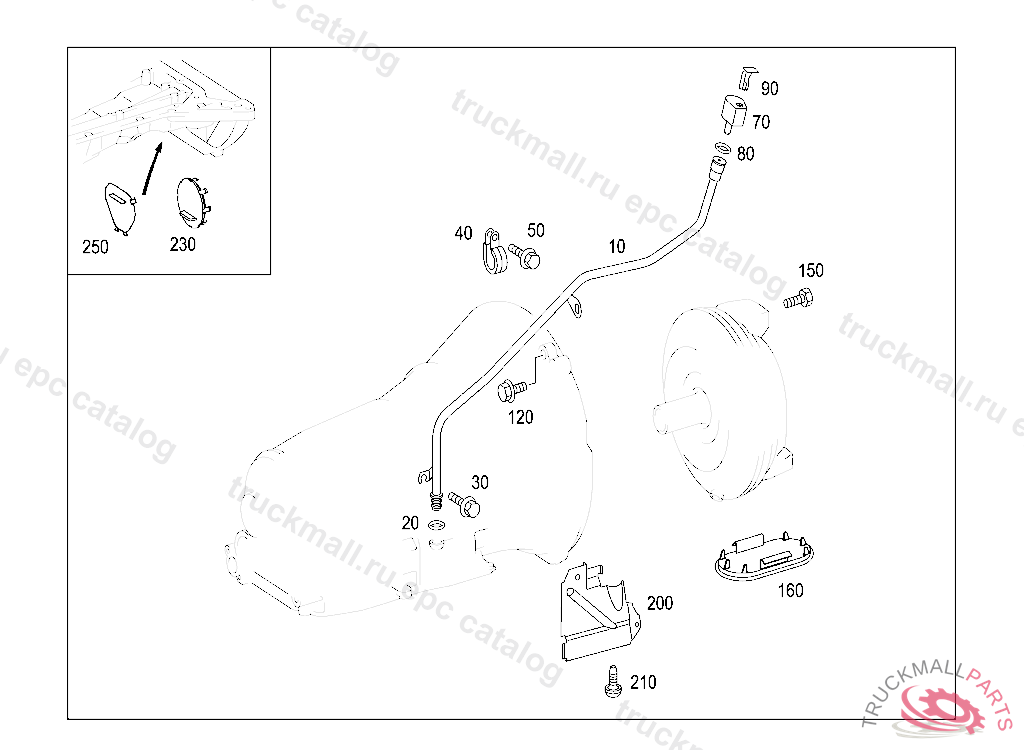

Поз.
Артикул
Описание
10
OIL FILLER PIPE
10
OIL FILLER PIPE , A 59748720030929 E 02000020070101
20
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
30
HEXAGON HEAD BOLT
40
MOUNTING CLAMP OIL FILLER TO ENGINE
40
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
50
HEXAGON HEAD BOLT
70
COVER OIL FILLER PIPE
80
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
90
DOWEL PIN OIL FILLER PIPE
120
SCREW PLATE TO FRAME M 10X45
120
HEXALOBULAR BOLT ENGINE-TRANS. CONNECTION W. BRACKET FOR EXHAUST MANIFOLD M10X50
150
SCREWM 8X18
200
COVER AT TRANSMISSION CASE, A 00008819990924
200
COVER AT TRANSMISSION CASE, F 45787220091213
210
BOLT. SCREW CAN NEUTRAL POINT ON EQUIPMENT PLATE M 6X15/10
210
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
250
EXPANSION PLUG MOUNTING OPENING FOR TRANSDUCER
