Главная
›
Mercedes
›
CAR
›
SLK 200 KOMPRESSOR
›
171.445
›
35 REAR AXLE
›

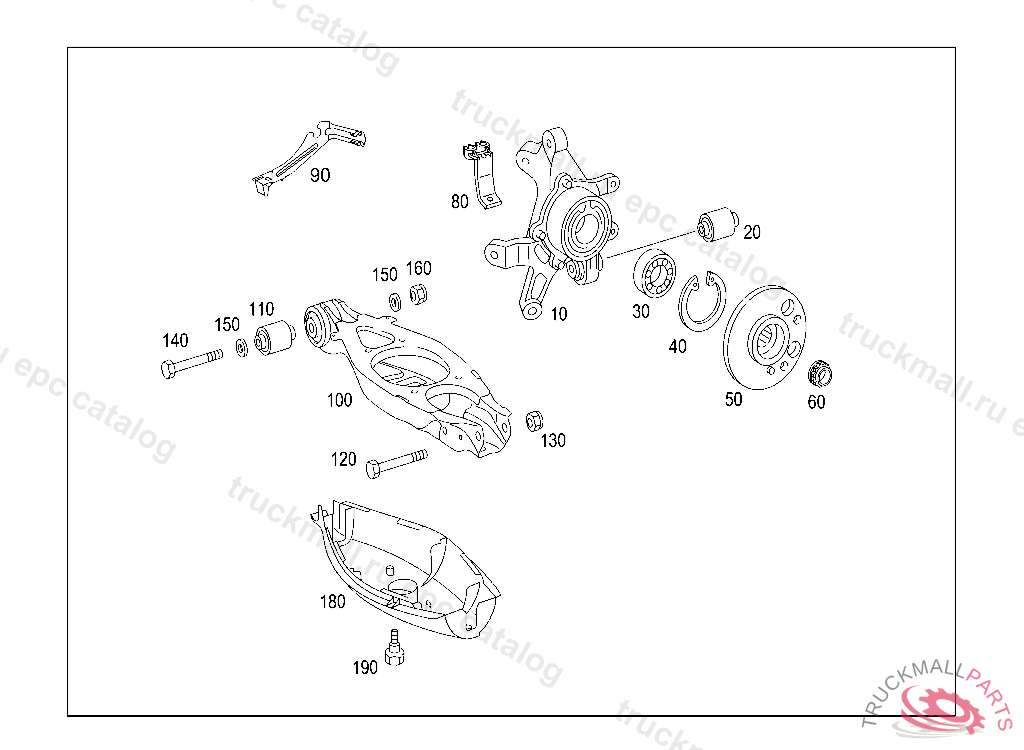

075 REAR AXLE SUSPENSION IL. 1
Mercedes A2019941641 - КОЛЬЦО
SLK 200 KOMPRESSOR 171.445
35 REAR AXLE - 075 REAR AXLE SUSPENSION IL. 1
Поз.
Артикул
Описание
10
A2033501408
WHEEL CARRIER RIGHT
10
A2033501308
WHEEL CARRIER LEFT
20
A2203520227
JOINT
30
A2029810127
ANGULAR CONTACT BEARING LEFT AND RIGHT
40
A2019941641
LOCK
50
A2033570108
FLANGE
60
A0019903850
COLLAR NUT F SHAFT INTERMEDIATE LEVER TO STEERING SUPPORT
80
A2035461443
BRACKET UNDER MOUNTING BOLT OF BRAKE CABLE
100
A2023500206
CONTROL ARM SPRING CONTROL ARM
110
A2023520165
RUBBER MOUNTING
120
A2109900504
SCREW SPRING CONTROL ARM TO WHEEL BEARING
130
N000000003281
HEXAGON NUT STEER. KNUCKLE TO TRAN. CON. ARM RIGHT M14X1,5
140
N308765012023
SCREW SPRING CONTROL ARM TO REAR SUBFRAME
150
A2103570275
WASHER SPRING CONTROL ARM TO REAR SUBFRAME
160
N910113012003
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
180
A2033520088
COVERING SPRING CONTROL ARM
190
A2109900336
SCREW PROTECTIVE PLATE TO SPRING CONTROL ARM
