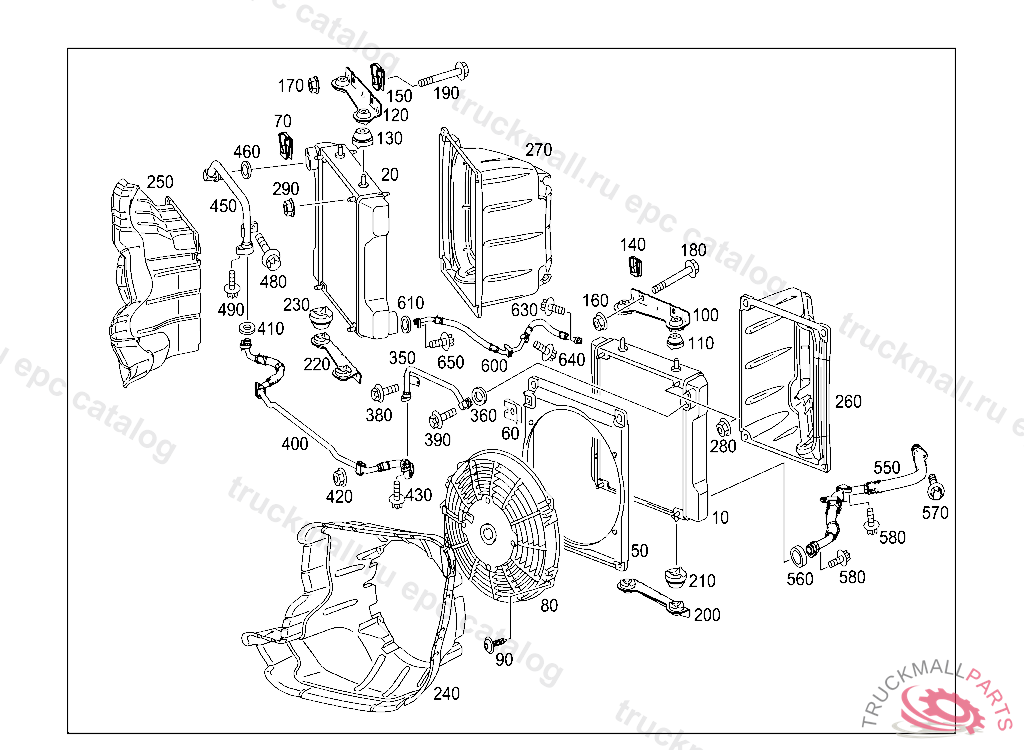

Поз.
Артикул
Описание
10
OIL COOLER IN WHEEL ARCH RIGHT
20
OIL COOLER IN WHEEL ARCH RIGHT
50
AIR DUCT LEFT
60
NUT RETAINER. LOCK LEFT AND RIGHT SPOILER AT CENTER PIECE
70
NUT RETAINER. LOCK LEFT AND RIGHT SPOILER AT CENTER PIECE
80
BLOWER ADDITIONAL RADIATOR IN RIGHT WHEELHOUSE, A 02588520100630
90
HEXALOBULAR BOLT SPLASH GUARD TO FENDER M6X20
100
BRACKET TOP LEFT
110
INTERMEDIATE BEARING , F 53236820100411MF 502825
120
BRACKET TOP RIGHT
130
INTERMEDIATE BEARING , F 53236820100411MF 502825
140
LOCK NUT. SPRING NUT MOUNTING PARTS
150
LOCK NUT. SPRING NUT MOUNTING PARTS
160
NUT , Replaced By: N913023006001
170
NUT , Replaced By: N913023006001
180
HEXALOBULAR BOLTM 6 X 60
190
HEXALOBULAR BOLTM 6 X 60
200
BRACKET BOTTOM LEFT
210
INTERMEDIATE BEARING , F 53236820100411MF 502825
220
BRACKET BOTTOM RIGHT
230
INTERMEDIATE BEARING , F 53236820100411MF 502825
240
AIR DUCT LEFT
240
AIR BAFFLE LEFT
250
AIR DUCT RIGHT
250
AIR BAFFLE RIGHT
260
AIR DUCT REAR LEFT
270
AIR DUCT REAR LEFT
280
NUT , Replaced By: N913023006001
290
NUT , Replaced By: N913023006001
350
OIL LINE FEED LINE,LEFT
360
SEAL RING OIL LINE TO OIL FILTER
380
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
390
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
400
OIL LINE FEED LINE
410
SEAL RING OIL LINE TO OIL FILTER
420
NUT , Replaced By: N913023006001
430
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
450
OIL LINE FEED LINE,RIGHT
460
SEAL RING OIL LINE TO OIL FILTER
480
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
490
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
550
OIL LINE FROM ENGINE TO OIL COOLER
560
SEAL RING OIL LINE TO OIL FILTER
570
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
580
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
600
OIL LINE RIGHT RETURN LINE
610
SEAL RING OIL LINE TO OIL FILTER
630
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
640
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
650
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
