Mercedes N912011006000 - ПРЕДОХРАНИТЕЛЬ

190 D 2.5 TURBODIESEL 201.128 FROM 09/88

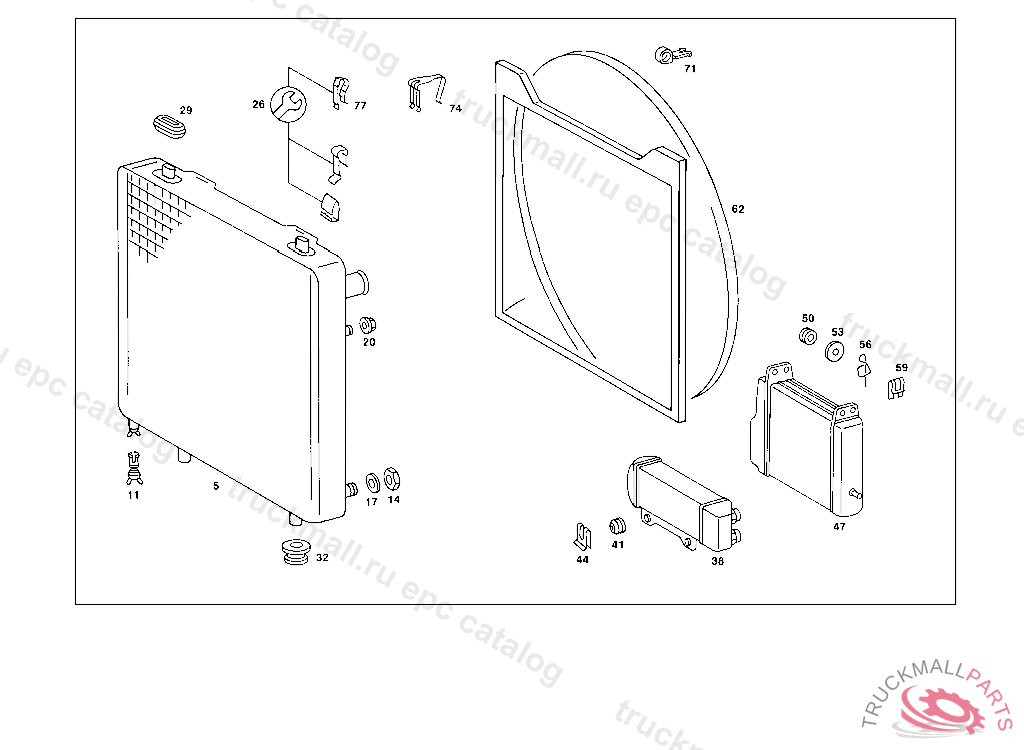

50 RADIATOR - 015 RADIATOR,MOUNTING,AND COVERING IL. 1

Поз.
Артикул
Описание
5
A2015009103
RADIATOR
5
A2015006803
RADIATOR , Replaced By: A2015009103
11
A2015000085
SCREW , Replaced By: A0005000185
11
A0005000185
SCREW WATER DRAIN
14
A0039901651
NUT RADIATOR MOUNTING
17
A0039907740
WASHER RADIATOR MOUNTING
29
A2015040712
RUBBER MOUNTING RADIATOR TO CENTRAL STIFFENING
32
A2015040812
RUBBER MOUNTING , Replaced By: A1295040112
32
A1295040112
RUBBER MOUNTING RADIATOR TO SUPPORT
47
A2015000000
RADIATOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.F 691470, Replaced By: A2015018101
47
A2015018101
OIL COOLER ENGINE
50
A1265040212
RUBBER MOUNTING OIL COOLER
53
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
53
N009021006205
WASHER , Replaced By: N009021006208
56
N912011006000
LOCK OIL COOLER
59
N912002006002
LOCK BRACKET TO SHIFT LEVER,K 032407
62
A2015000155
FAN SHROUD
71
A2015050073
LOCK FAN SHROUD
77
A1235040246
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
999
A0005010176
WASHER WATER DRAIN
