Mercedes A2025050073 - Замок

C 230 202.023

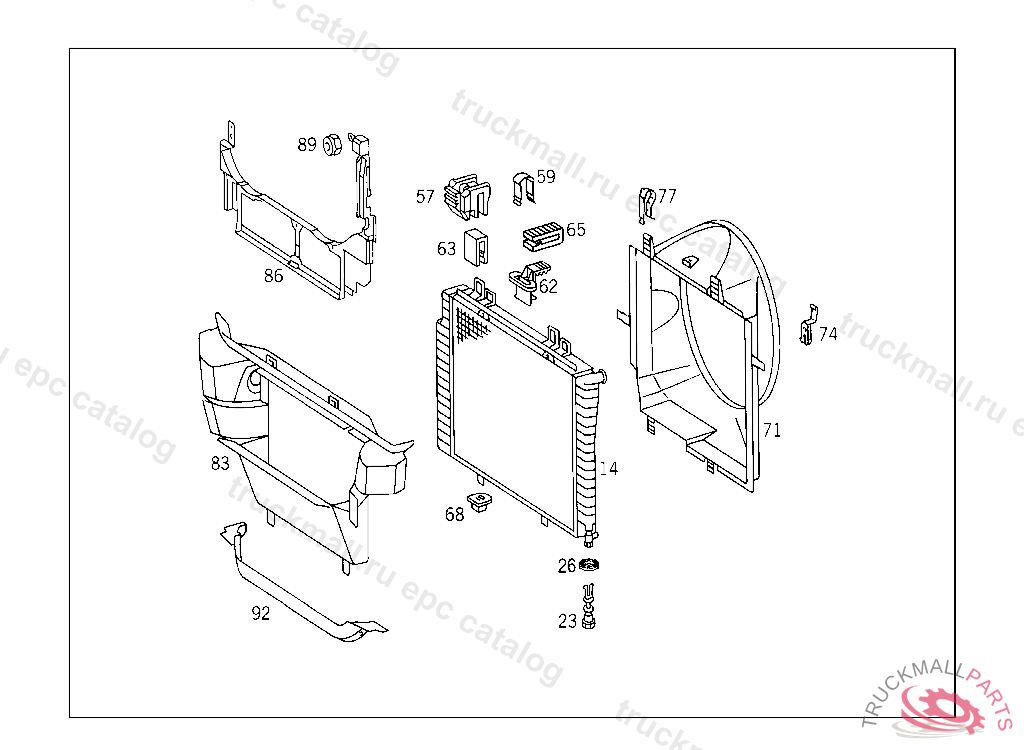

50 RADIATOR - 015 RADIATOR,MOUNTING,AND COVERING IL. 1

Поз.
Артикул
Описание
14
A2025002203
RADIATOR
23
A0005000185
SCREW WATER DRAIN
26
A0005010176
WASHER WATER DRAIN
57
A2105040146
CLAMP RADIATOR TO CENTRAL STIFFENING
59
A2025040246
CLAMP RADIATOR TO CENTRAL STIFFENING
62
A2025050073
LOCK , Replaced By: A2105040146, +002A2105040412
63
A2105040412
RUBBER MOUNT RADIATOR TO CENTRAL STIFFENING
65
A2025041112
RUBBER MOUNTING , Replaced By: A2105040412, +002A2105040146
68
A1405040212
RUBBER MOUNTING RADIATOR TO SUPPORT
77
A1235040246
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
86
A2025050730
AIR BAFFLE , A 436536 F 483848 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 436535, F 483847 WITH CODE 807
89
N910104006000
NUT-AND-WASHER ASSEMBLY. NUT ABS MOUNTING ON BRACKET ASSEMBLY
