Mercedes A1110940020 - ТЕПЛОВОЙ ЭКРАН

C 200 KOMPRESSOR 202.087

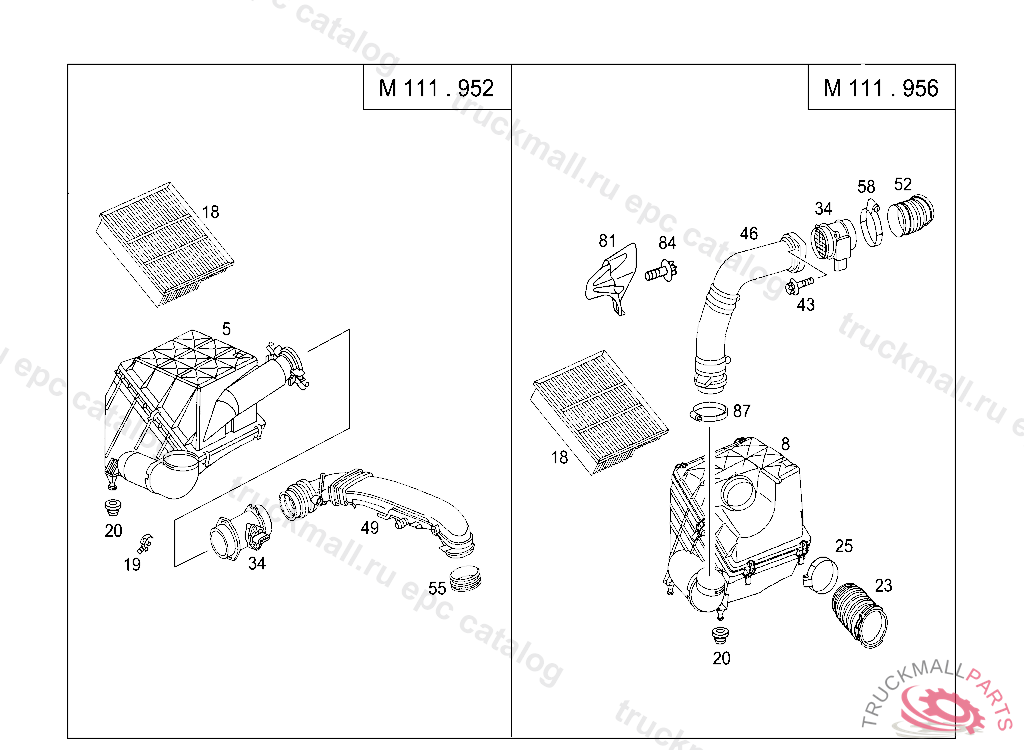

52 CHASSIS SHEET METAL - 140 AIR INTAKE,GASOLINE VEHICLES IL. 1

Поз.
Артикул
Описание
8
A1110900801
AIR CLEANERKNECHT
18
A6040941304
FILTER ELEMENT
18
A6040941404
FILTER ELEMENT
19
A0000943955
FASTENER
20
A6040940085
ELASTOMER BEARING. RUBBER BUFFER HYDRAULIC UNIT TO BRACKET, A 519674 F 619721 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO A 519673, F 619720 WITH CODE 808
23
A1110981083
HOSE FROM MUFFLER TO AIR CLEANER
25
A0069970790
CLAMP CHARGE AIR LINE TO MIXER HOUSING 60-80 MM
34
A1110940148
MASS AIRFLOW SENSOR. AIR MASS SENSOR
43
A0019846429
SCREW W COLLAR A DRIVEM5X35
46
A1111411104
PIPE FROM AIR DUCT TO AIR MASS SENSOR
52
A1110941191
BOOT AIR-MASS SENSOR
58
A0069970790
CLAMP CHARGE AIR LINE TO MIXER HOUSING 60-80 MM
81
A1110940020
SCREENING AIR INTAKE PIPE
84
N910143006000
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
87
A0069972690
LOOM TIE. CLAMP HOSE FASTENING
