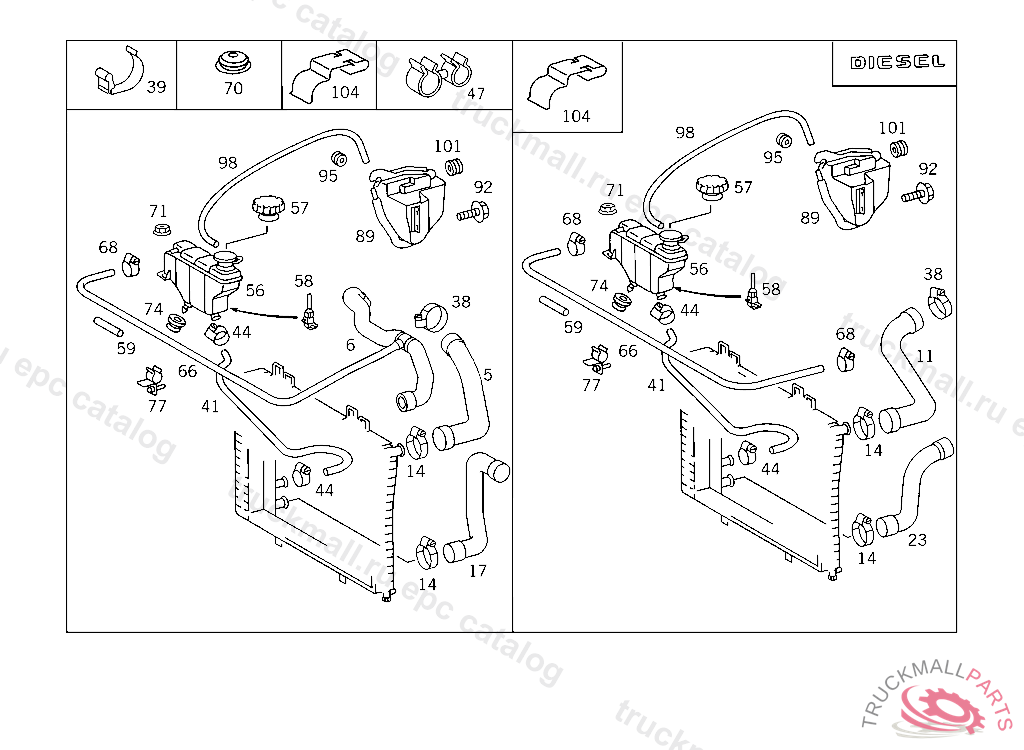

Поз.
Артикул
Описание
11
HOSE TOP
14
LOOM TIE
23
HOSE BOTTOM, A 686499 F 791313
23
HOSE BOTTOM, A 686500 F 791314
38
LOOM TIE
38
LOOM TIE. CLAMP HOSE FASTENING
41
HOSE
44
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK
44
CLAMP HOSE FASTENING 28-35 MM,V 207570
56
TANK EXPANSION TANK
57
CLOSING COVER RADIATOR
58
SWITCH,AUTOMATIC EXPANSION TANK, A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
59
HOSE OVERFLOW 530 MM, ORDER BY THE METER
66
HOSE ENGINE BREATHING 8X15X2550MM, TO BE ADAPTED DURING ASSEMBLY
68
HOSE CLAMP8-16
68
CLAMP HOSE FASTENING 14-16 MM
71
NUT EXPANSION TANK TO WHEELHOUSE
74
RUBBER MOUNTING EXPANSION TANK TO WHEELHOUSE
77
BRACKET BREATHER LINE
104
BRACKET BREATHER LINE
