Mercedes A2033200772 - ПРОВОД

C 320 203.264

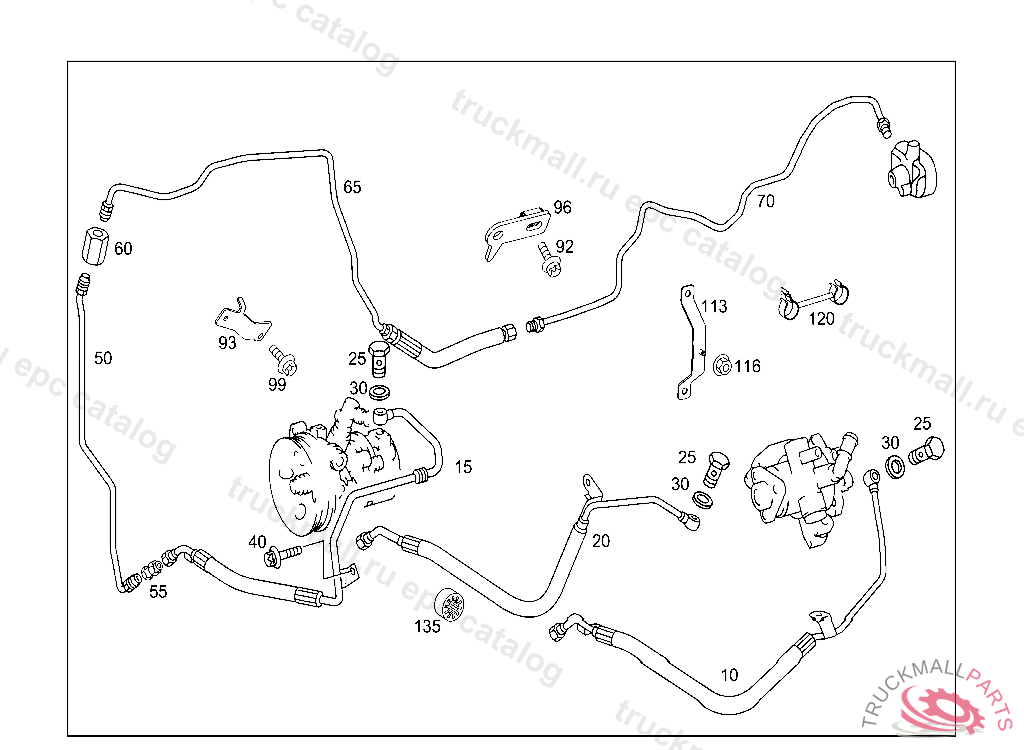

32 SPRINGS, SUSPENSION AND HYDRAULIC SYSTEM - 265 REAR LINE ARRANGEMENT IN CASE OF SELF-LEVELLING DEVICE IL. 1

Поз.
Артикул
Описание
20
A2033203272
LINE DELIVERY LINE TO HYDRAULIC PUMP
20
A2033201572
LINE DELIVERY LINE TO HYDRAULIC PUMP, Replaced By: A2033202672
20
A2033202672
LINE DELIVERY LINE TO HYDRAULIC PUMP, Replaced By: A2033203272
25
N915036008100
HOLLOW SCREW OIL DELIVERY LINE TO MANUAL PUMP A8
30
N007603012111
SEAL RING LINE CONNECTION
50
A2033202972
LINE HIGH PRESSURE HOSE
50
A2033201872
LINE HIGH PRESSURE HOSE, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. F 16307220010531, Replaced By: A2033202972
55
A1269970134
RETAINING SCREWM10X1
55
A0004280472
RETAINING SCREW. NUT
60
A1233270088
COUPLING PIECE
65
A2033200572
LINE HIGH-PRESSURE EXP. AND CONNECTING HOSE TO LONGITUDINAL MEMBER, NO LONGER AVAILABLE
70
A2033200772
LINE FROM HEIGHT CONTROL VALVE TO DISTRIBUTOR
120
A2033201072
LINE FROM DISTRIBUTOR TO RIGHT REAR SPRING LOAD ACCUMULATOR
120
A2033200543
BRACKET
