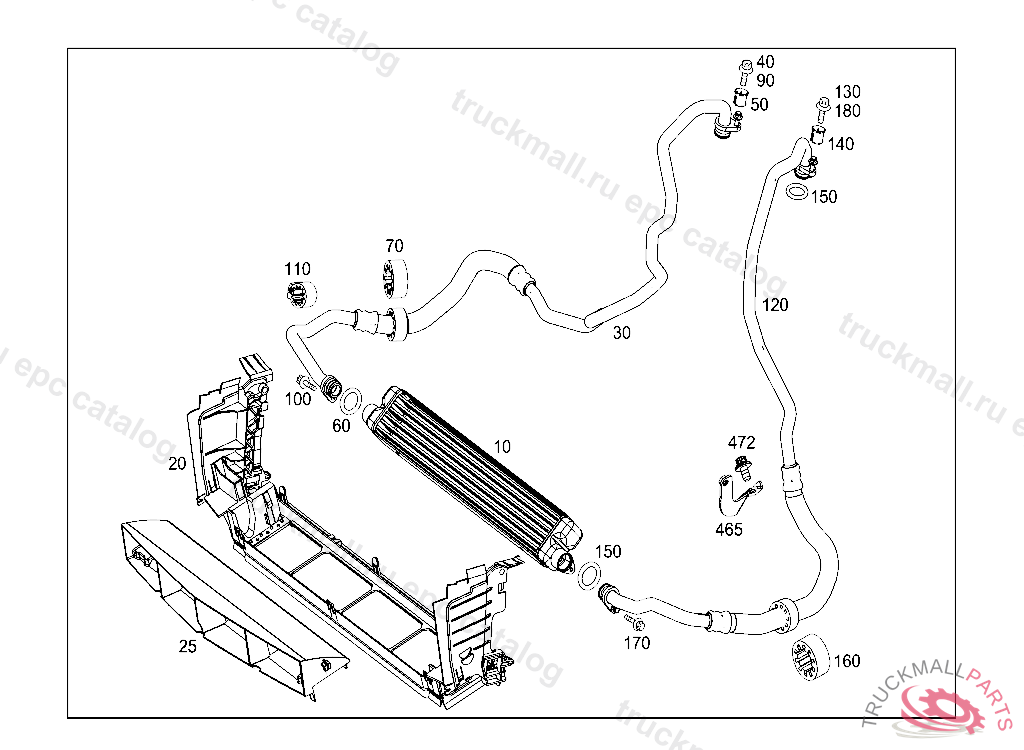

Поз.
Артикул
Описание
10
OIL COOLER FRONT
20
SUPPORTING FRAME LOWER AIR DUCTING
25
AIR DUCT TO OIL COOLER
30
OIL LINE TO OIL COOLER RIGHT
40
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
50
PILOT BUSHING OIL LINE
60
SEAL RING OIL LINE TO OIL FILTER
70
RUBBER RING
90
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
100
HEXALOBULAR BOLT. SCREW
110
SPACER RING OIL LINE
120
OIL LINE TO OIL COOLER LEFT
130
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
140
PILOT BUSHING OIL LINE
150
SEAL RING OIL LINE TO OIL FILTER
160
RUBBER RING
170
HEXALOBULAR BOLT. SCREW
180
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
465
BRACKET INLET LINE TO COMPRESSOR
472
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
