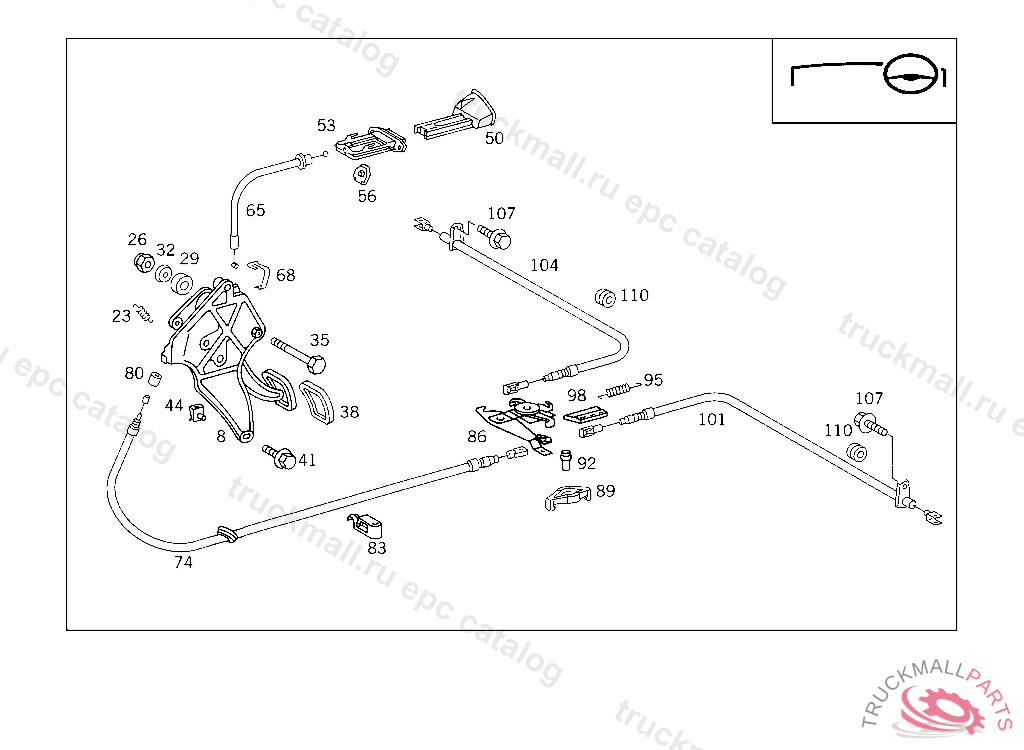

Поз.
Артикул
Описание
8
PARKING BRAKE
23
SPRING
26
NUT OIL TANK TO BRACKET
29
DAMPING RING
32
WASHER COMPRESSED AIR LINE TO BRACKET
35
SCREWM6 X 38
38
PAD PEDAL
41
SCREW FOOT OPERATED PARKING BRAKE TO FIRE WALL
41
HEXALOBULAR BOLT TORSION BAR TO CARRIER M8X16
44
NUT RETAINER MOUNTING FRAME TO SUPPORT,V 202043
50
HANDLE RELEASE FOR FOOT OPERATED PARKING BRAKE
53
GUIDE UNLOCKING FOOT OPERATED PARKING BRAKE
56
LOCK
65
BRAKE CABLE PARKING BRAKE
68
CLIP
74
BRAKE CABLE FRONT
80
HOSE FRONT BRAKE CABLE TO PARKING BRAKE 12 MM, ORDER BY THE METER
83
CLAMP FRONT BRAKE CABLE TO TUNNEL
83
CLAMP ,A 181986
86
ADJUSTER
89
CLIP
92
PIN
95
SPRING
98
GUIDE
101
BRAKE CABLE REAR LEFT
104
BRAKE CABLE REAR RIGHT
107
SCREW BRAKE CABLE TO REAR AXLE
110
GROMMET BRAKE CABLE TO REAR AXLE
