Поз.
Артикул
Описание

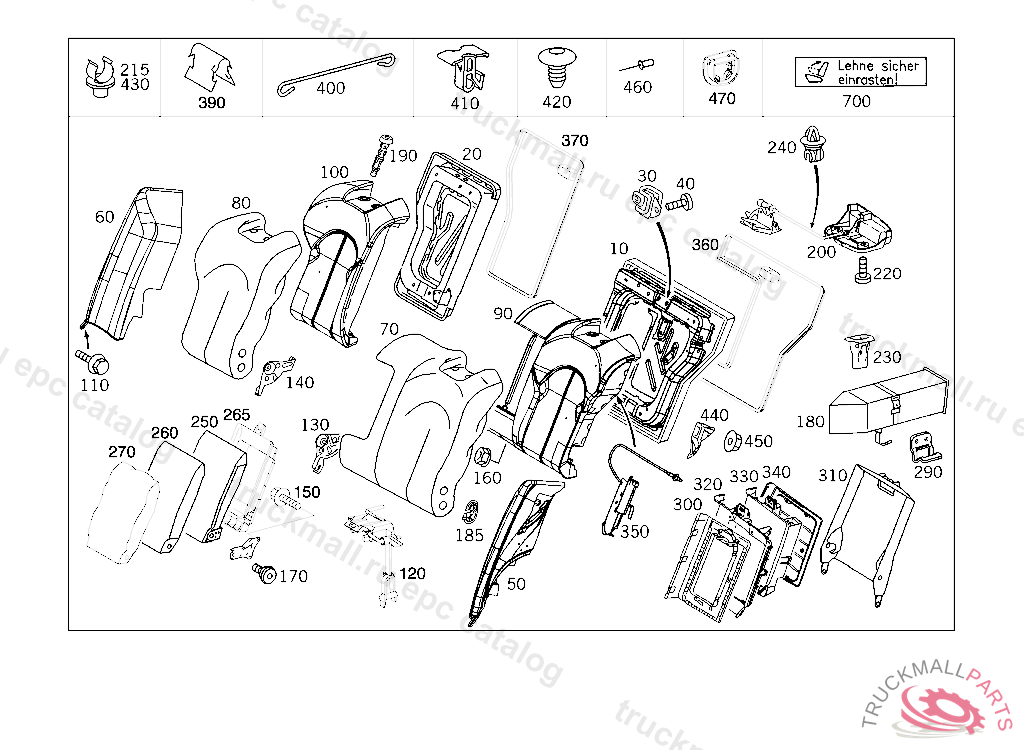

10
BACKREST FRAME LEFT
20
BACKREST FRAME RIGHT
30
CLAMP TO BACKREST FRAME
40
BOLT BAR TO BACKREST FRAME M8X16
50
BACKREST LEFT
50
BACKREST LEFT
50
BACKREST LEFT
50
BACKREST LEFT
50
BACKREST LEFT
50
BACKREST LEFT
50
BACKREST LEFT
50
BACKREST LEFT
50
BACKREST LEFT
50
BACKREST LEFT
50
BACKREST LEFT, F 15559920050114805 9D88 711A QFT209A2206 BLACK
50
BACKREST LEFT
50
BACKREST LEFT
50
BACKREST LEFT
60
BACKREST RIGHT
60
BACKREST RIGHT
60
BACKREST RIGHT
60
BACKREST RIGHT
60
BACKREST RIGHT, "ELEGANCE" OR "AVANTGARDE" FABRIC
60
BACKREST LEATHER RIGHT
60
BACKREST RIGHT
60
BACKREST LEATHER RIGHT
60
BACKREST "AVANTGARDE" FABRIC RIGHT, F 15559920050114805 9D88 711A QFT209A2206 BLACK
60
BACKREST RIGHT
60
BACKREST RIGHT
60
BACKREST RIGHT
60
BACKREST RIGHT
60
BACKREST RIGHT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT, F 15559920050114805 9E88 711A QFT209A2205 BLACK
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER, REAR SEAT BACKREST LEFT
70
COVER FABRIC "ELEGANCE", LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER, REAR SEAT BACKREST LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER, REAR SEAT BACKREST LEFT
70
COVER LEFT
70
COVER LEFT, F 15559920050114805 9E88 711A QFT209A2205 BLACK
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER REAR SEAT BACKREST LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER, REAR SEAT BACKREST LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
80
COVER RIGHT
80
COVER RIGHT
80
COVER RIGHT
80
COVER RIGHT
80
COVER RIGHT
80
COVER RIGHT
80
COVER RIGHT
80
COVER RIGHT
80
COVER, REAR SEAT BACKREST RIGHT
80
COVER RIGHT, F 15559920050114805 9E88 711A QFT209A2205 BLACK
80
COVER RIGHT
80
COVER RIGHT
80
COVER RIGHT
80
COVER, REAR SEAT BACKREST RIGHT
80
COVER RIGHT
80
COVER RIGHT
80
COVER RIGHT
80
COVER RIGHT
80
COVER RIGHT
80
COVER RIGHT
80
COVER RIGHT
80
COVER RIGHT
80
COVER RIGHT
90
REST BACKREST
100
REST RIGHT
110
BOLT ENGINE HOOD UPPER CATCH TO ENGINE HOOD M6X18, J 11373419981002
120
LOCKING MECHANISM LEFT REAR BACKREST
120
LOCKING MECHANISM RIGHT REAR BACKREST
130
BEARING LEFT REAR BACKREST
140
BEARING RIGHT REAR BACKREST
150
SCREW BRACKET TO COVERING
150
SCREW CONSOLE TO KNEE PROTECTION PAD
160
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
170
BOLT ARMREST M8X8
180
DASHPOT SKI-BAG
185
BEARING OUTSIDE LEFT,LEFT SEAT
185
BEARING OUTSIDE RIGHT,RIGHT SEAT
190
GUIDE HEAD RESTRAINT, WITH BUTTON
190
GUIDE HEADREST INTO BACKREST
200
LOCKING MECHANISM LEFT
200
LOCKING MECHANISM RIGHT
215
CABLE CLAMP BOWDEN CABLE
220
SCREW
220
BOLT FRONT PASSENGER AIRBAG TO INSTRUMENTPANEL M5X16
220
BOLT LOCK TO CROSSMEMBER M6X11
230
CLIP CONSOLE
240
CLIP VACUUM LINE
250
FOLDING ARMREST
250
FOLDING ARMREST , F 15559920050114805 9D88 711A QFT209A2206 BLACK
250
FOLDING ARMREST
250
FOLDING ARMREST
250
FOLDING ARMREST
250
FOLDING ARMREST , Replaced By: A2039701030
250
FOLDING ARMREST , Replaced By: A2039701130
260
FOLDING ARMREST
265
TAKE-UP DEVICE FOLDING ARMREST
270
COVER ARMREST
270
COVER ARMREST, E 01938620050630805 A 66602420040430805 F 59396620040531805 R 15626520040630805 AS OF MOD. YEAR 805, ORDER NEXT HIGHER ASSEMBLY....
290
BEARING SKI BAG FLOOR MOUNT, E 01938620050630805 A 66602420040430805 F 59396620040531805 R 15626520040630805
300
TAKE-UP DEVICE SKI-BAG
310
FLAP SKI-BAG
320
COVER SIDE MEMBER
330
COVER ARMREST
340
COVER ARMREST
350
LINE FOLD DOWN HEAD RESTRAINT
360
LINING LEFT REAR BACKREST, 9F08QFT203A0147 SINGLE TONE BLACK
370
LINING RIGHT REAR BACKREST, 9F08QFT203A0147 SINGLE TONE BLACK
390
CLIP COVER TO SEAT CUSHION
400
BRACKET SEAT COVER MOUNTING,LONGITUDINAL
400
CLAMP UPHOLSTERY TACKING RIGHT 690MM
410
CLIP TRANSVERSAL TACKING
420
PLUG TUNNEL
430
CABLE CLAMP BOWDEN CABLE
440
CONSOLE REAR BACKREST MOUNTING LEFT
440
CONSOLE REAR BACKREST MOUNTING RIGHT
450
FASTENER BUTTON INSULATION TO PARTITION PANEL,RIGHT
460
RIVET BRACKET BEARING, E 01938620050630805 A 66602420040430805 F 59396620040531805 R 15626520040630805
470
HOUSING ANCHORING LUG
700
GUIDE SIGN IN DANISH, A 221779 F 190044
700
GUIDE SIGN IN PORTUGUESE, A 221779 F 190044
700
GUIDE SIGN IN SPANISH, A 221779 F 190044
700
GUIDE SIGN IN ITALIAN, A 221779 F 190044
700
GUIDE SIGN IN SWEDISH, A 221779 F 190044
700
GUIDE SIGN IN FINNISH, A 221779 F 190044
700
GUIDE SIGN IN ENGLISH, A 221779 F 190044
700
GUIDE SIGN IN FRENCH, A 221779 F 190044
700
GUIDE SIGN IN GERMAN, A 221779 F 190044
700
GUIDE SIGN IN DUTCH, A 221779 F 190044
700
GUIDE SIGN IN ARABIAN, A 221779 F 190044
