Mercedes N000000001476 - АВТОЗАПЧАСТЬ

CLK 200 KOMPRESSOR 209.442

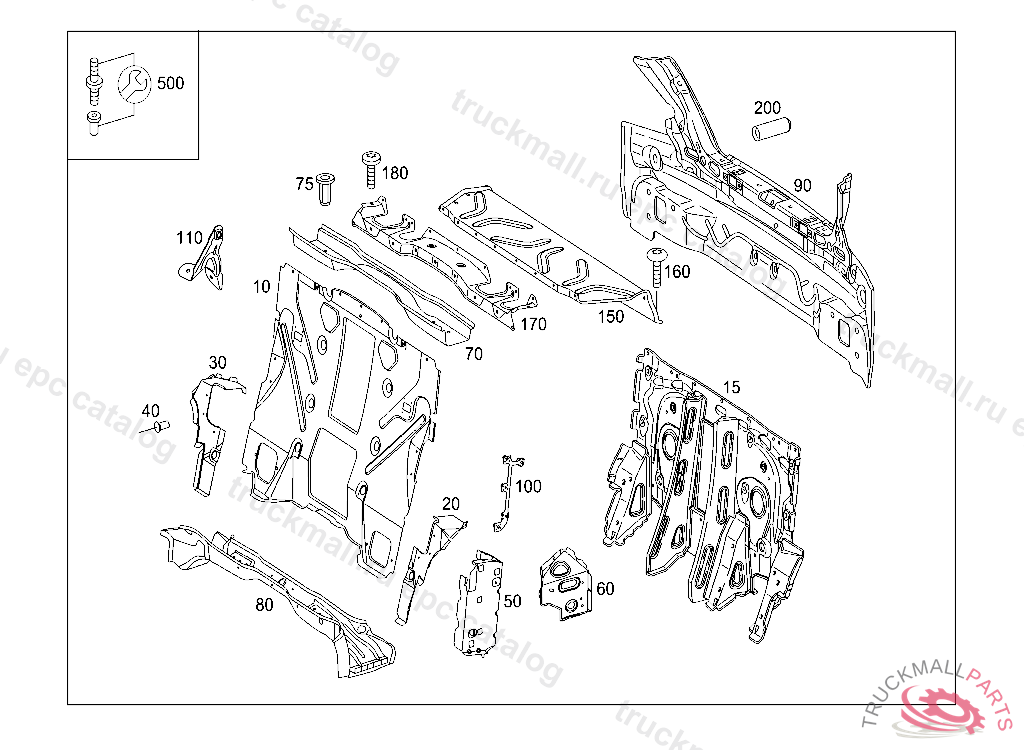

63 SIDE PANELS - 080 ROOF FRONT RAIL & SIDE PANELS ON CABRIO (CONVERTIBLE) IL. 1

Поз.
Артикул
Описание
10
A2096400560
REAR PANEL
15
A2096400760
REAR PANEL TOP
20
A2096400931
CONSOLE LEFT
30
A2096401031
CONSOLE RIGHT
40
A0039903697
RIVET BRACKET TO SUBFRAME
50
A2096400548
END PIECE LEFT
50
A2096400648
END PIECE RIGHT
60
A2096400948
END PIECE LEFT
60
A2096401048
END PIECE RIGHT
70
A2096460301
CENTRAL PART TOP INSIDE
75
A0019909858
NUT
75
N000000003627
RIVET NUT6X23,5
80
A2096400114
CROSS MEMBER
90
A2096400671
REAR END CENTER ASSEMBLY. REAR END CENTER ASSEMBLY BOTTOM
90
A2096400571
REAR APRON REAR BODY PANEL,BOTTOM, Replaced By: A2096400671
100
A2096400251
BRACKET RIGHT
100
A2096400151
BRACKET LEFT
110
A2096401731
CONSOLE LEFT
110
A2096401831
CONSOLE RIGHT
150
A2096460232
COVER
160
N000000001476
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
170
A2096462516
REINFORCEMENT
180
N000000001474
HEXALOBULAR BOLT CAN NEUTRAL POINT ON EQUIPMENT PLATE M6X10, Replaced By: A0019844329
180
N000000001475
HEXALOBULAR BOLT BRACKET ON TUBULAR SUPPORTING FRAMEWORK M6X12
180
N000000001146
SCREW CLAMP MOUNTING M 6X16
200
A2097780333
COVER FOR PIN
500
A0009901210
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
999
A0009917632
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
