Mercedes A2105014782 -

E 200 KOMPRESSOR 210.245 TO MODELLJAHR CODE 809

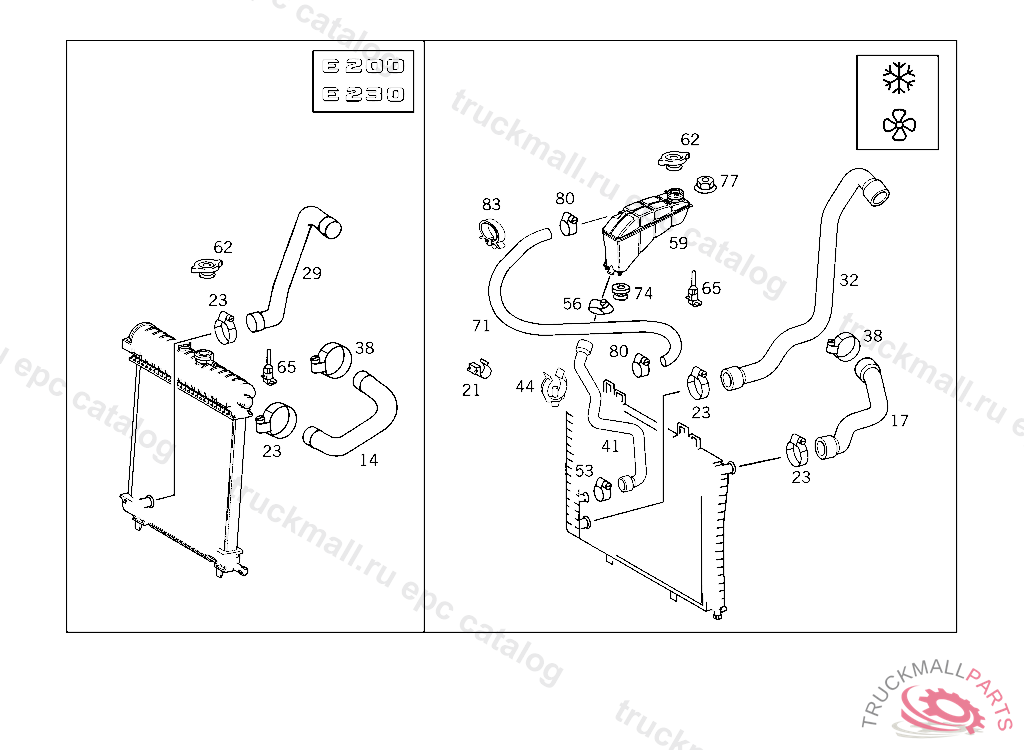

50 RADIATOR - 165 EXPANSION TANK,MOUNTING AND HOSES IL. 2

Поз.
Артикул
Описание
17
A2105014682
HOSE TOP
21
A2025010820
BRACKET , Replaced By: A2205010020
21
A2205010020
BRACKET
23
A0069974390
LOOM TIE. CLAMP HOSE FASTENING
23
A0069970590
LOOM TIE
32
A2105014782
HOSE BOTTOM
38
A0069970590
LOOM TIE
38
A0069970690
LOOM TIE. CLAMP BRAKE HOSE 45-55 MM, DISCONTINUED,PART IS NO LONGER REQUIRED
41
A2105012082
HOSE
44
A1265010020
BRACKET JACK FIXTURE
53
N916026023001
CLAMP PRESSURE REGULATOR
59
A2105000349
TANK , Replaced By: A2105000549
59
A2105000549
TANK EXPANSION TANK
62
A1245000406
CLOSING COVER RADIATOR
65
A2105450024
SWITCH,AUTOMATIC EXPANSION TANK, A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
71
N900271008019
HOSE , Replaced By: N000000000734
71
N000000000734
HOSE ENGINE BREATHING 8X15X2550MM, TO BE ADAPTED DURING ASSEMBLY
74
A2015040112
RUBBER MOUNTING EXPANSION TANK TO WHEELHOUSE
77
A0039905351
NUT MOUNTING FRAME TO SUPPORT M6
77
A0019905850
NUT EXPANSION TANK TO WHEELHOUSE
80
A0059970190
HOSE CLAMP LINE MOUNTING
83
A0009955244
CLAMP
