Mercedes A0009981147 - Разъединительный элемент

E 300 HYBRID 212.298

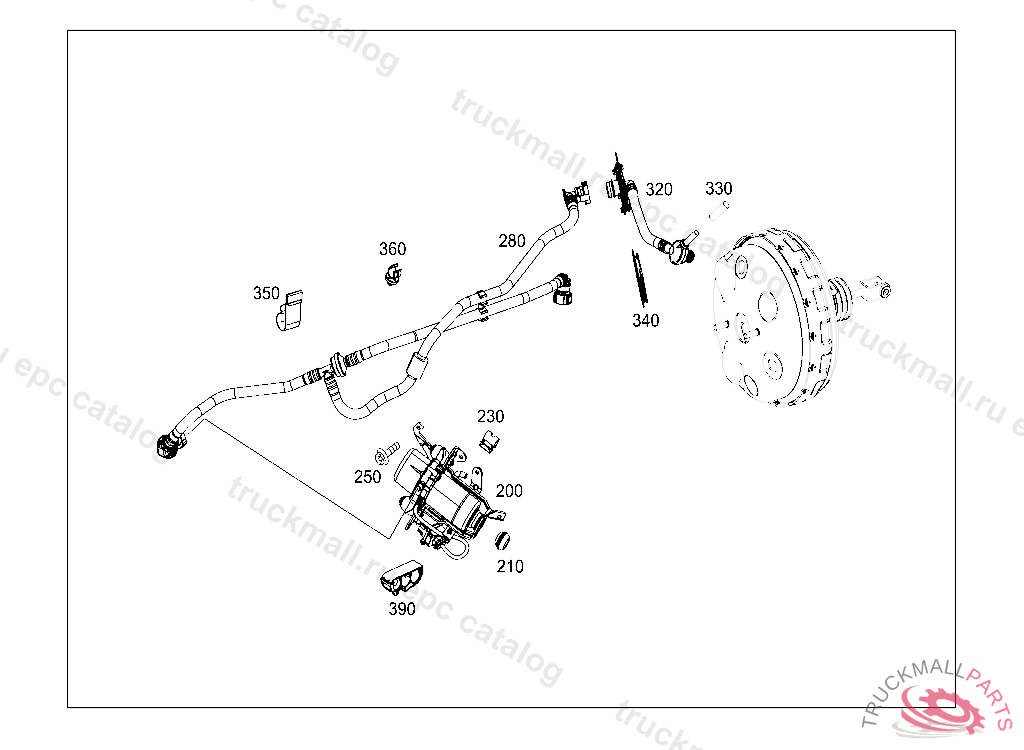

42 BRAKES - 070 VACUUM SYSTEM

Поз.
Артикул
Описание
200
A0004302832
PUMP UNIT
210
A0009981147
DECOUPLER BOTTOM
230
A0015460043
BRACKET LINE TO BRACKET
250
N910143006001
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
280
A2124303229
VACUUM LINE SEPARATION POINT TO VACUUM PUMP
280
A2124303329
VACUUM LINE SEPARATION POINT TO VACUUM PUMP
320
A2124300929
VACUUM LINE BRAKE BOOSTER TO PARTITION POINT
320
A2124302629
VACUUM LINE BRAKE BOOSTER TO PARTITION POINT
320
A2124304029
VACUUM LINE BRAKE BOOSTER TO PARTITION POINT, A 20130930 L 03919220130930 V 00271820130930
330
A0009871145
LOCKING CAP
340
A0009980203
CLOSING GROMMET
350
A0059884378
CLIP , Replaced By: A0059889178
360
A0019959377
LINE HOLDER VACUUM LINE
390
A0029957177
LINE FASTENER AT VACUUM PUMP
