Поз.
Артикул
Описание

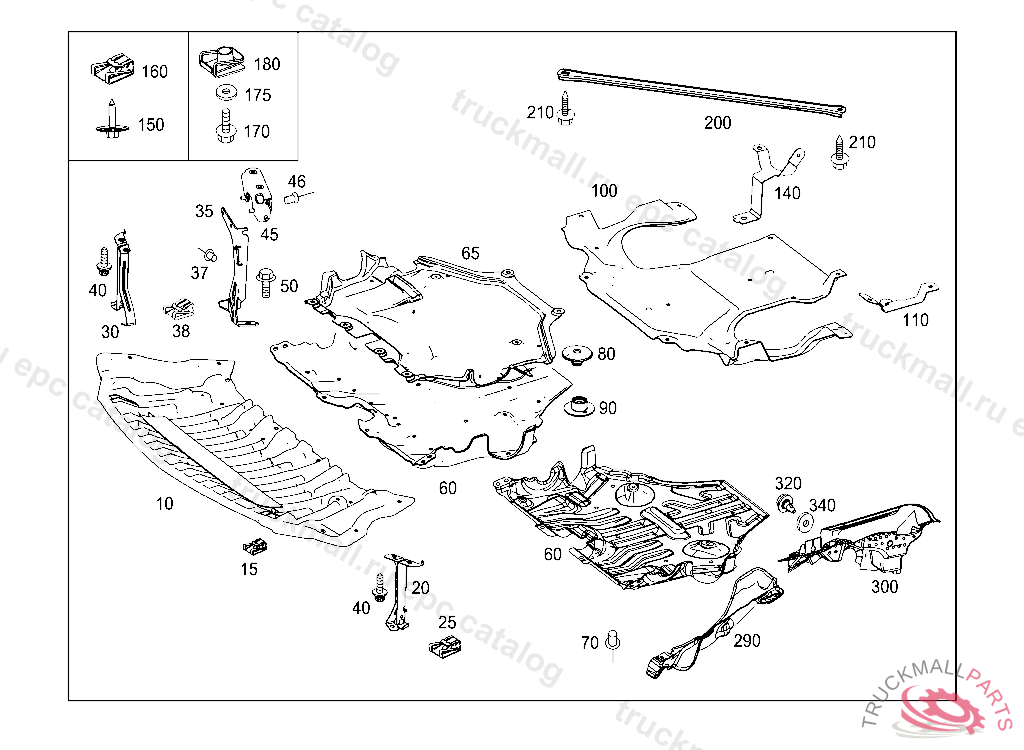

10
COVER F ENGINE COMP. BM FRONT
10
COVER F ENGINE COMP. BM FRONT
20
BRACKET FRONT LEFT
25
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
35
BRACKET FRONT RIGHT
35
BRACKET FRONT RIGHT
35
BRACKET FRONT LEFT
37
BLIND RIVET. RIVET FAN SHROUD
38
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
40
HEXALOBULAR BOLT. SCREW
45
BRACKET FRONT RIGHT
46
BLIND RIVET. RIVET FAN SHROUD
50
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
60
COVER F ENGINE COMP. BM CENTRAL
70
BLIND RIVET AT COVERING
100
COVER F ENGINE COMP. BM REAR, A 92686520131014 G 20130830 R 20131129
100
COVER F ENGINE COMP. BM REAR, A 92686620131014 G 20130830 R 20131129
110
BRACKET REAR LEFT
140
BRACKET REAR RIGHT
150
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
160
SPRING-THREAD NUT PROTECTIVE PLATE
160
LOCK. CLIP-TYPE NUT
160
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
170
SCREW BRACKET TO CROSS CONNECTION STRUT
175
WASHER BRACKET TO CAB REAR PANEL
200
STRUT BETWEEN LONGITUDINAL MEMBER ANDFRAME-TYPE INTEGRAL SUPPORT
210
HEXAGON HEAD BOLT ROCKER PANEL AT FRONT M10X23,5
