Mercedes A2187800013 - Водосточный желоб

CLS 63 AMG 4MATIC 218.992

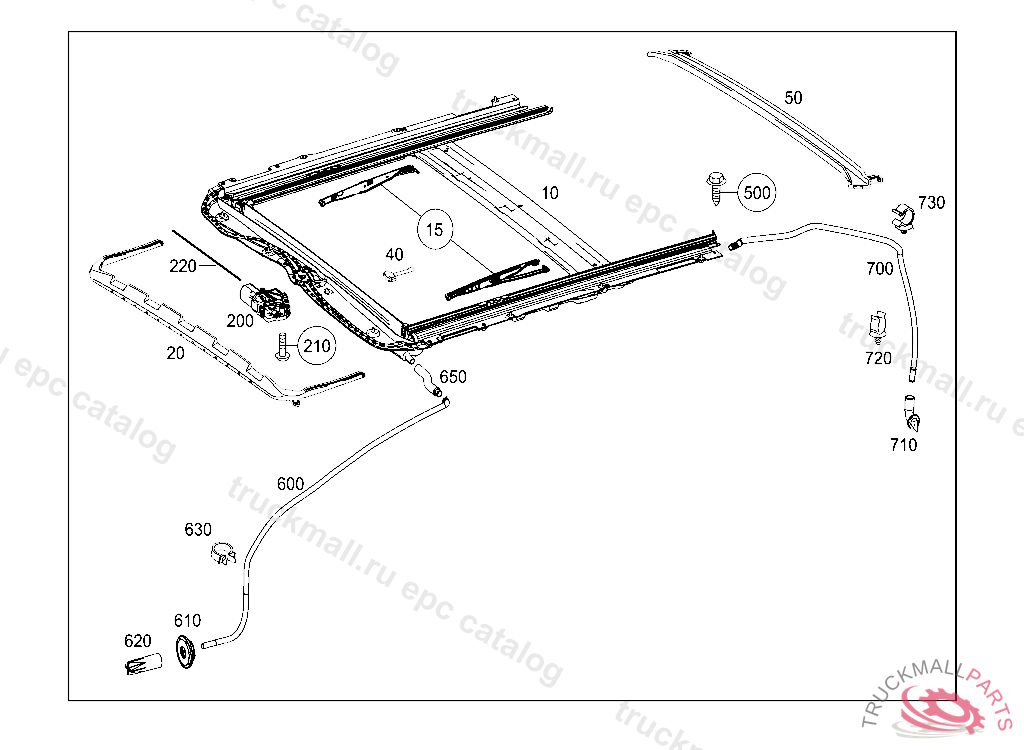

78 SLIDING ROOF - 045 SLIDING/LIFTING ROOF FRAME

Поз.
Артикул
Описание
10
A2187800329
SLIDING ROOF FRAME
15
A2187820186
SLOTTED SLIDE VALVE LEFT AND RIGHT PARTS KIT
20
A2187800044
AIR DEFLECTOR
40
A2187820086
END STOP LEFT AND RIGHT SLIDING ROOF
50
A2187800013
RAIN CHANNEL
200
A2188200142
GEARED MOTOR
210
A0119902104
TS SCREW W HXL. SOCKET DELIVERY QUANTITY3 PCS.
220
A2185400010
ELECTRICAL WIRING HARNESS SLIDING ROOF
500
A0019904110
TS HEX. HEAD TAPPING SCRE DELIVERY QUANTITY12 PCS., THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0179906301
500
A0179906301
BOLT FRAME TO ROOF
600
A2126300295
HOSE LINE FRONT RIGHT
610
A0009875244
EXPANSION PLUG SIDE MEMBER,TOP 45 MM
620
A2046391394
HOSE ASSEMBLY WATER DRAIN AT FRONT LEFT
630
A0009955244
CLAMP
650
A2186300295
HOSE ASSEMBLY AT FRAME, LEFT
700
A2186390794
HOSE ASSEMBLY RIGHT REAR SLIDING ROOF
710
A0019989301
WATER DRAIN GROMMET HOSE LINE THROUGH RIGHT WHEEL WELL
720
A0009959677
LINE HOLDER HOSE TO COMPRESSOR
730
A0009953114
LINE HOLDER WATER DRAIN
