Поз.
Артикул
Описание

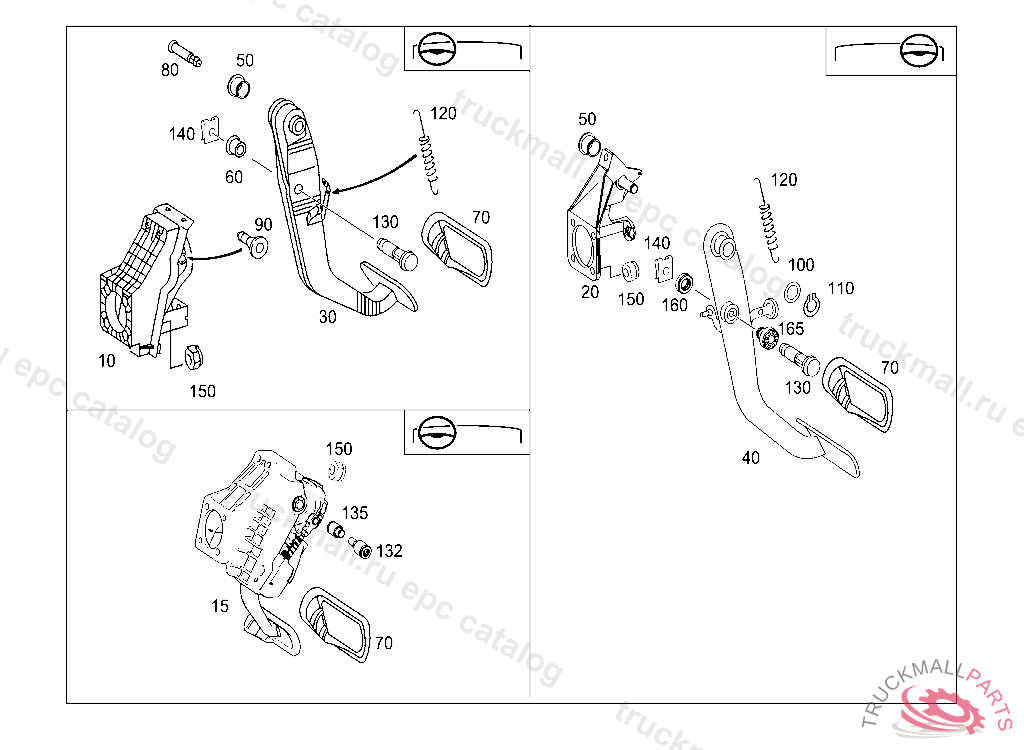

10
BEARING BRACKET
10
BEARING BRACKET PEDAL ASSEMBLY, A 02430720090731800
20
BEARING BRACKET PEDAL ASSEMBLY, A 02430720090731800
20
BEARING BRACKET
30
PEDAL
30
PEDAL BRAKE
40
PEDAL BRAKE, A 02430720090731800 IMPORTANT: ALSO ORDER BRAKE PEDAL COVER
40
PEDAL
50
BUSHING BRAKE PEDAL
60
BUSHING PEDAL ASSEMBLY
70
PAD TO BRAKE PEDAL
70
PAD BRAKE PEDAL
80
PIN CLUTCH PEDAL TO BEARING BRACKET
90
PLUG
100
WASHER PEDALS TO PIVOT PINS
110
LOCK STOP TO BEARING BRACKET
120
SPRING TO BRAKE PEDAL
120
SPRING BRAKE PEDAL RELEASE SPRING
130
PIN BRAKE PEDAL TO BRAKE BOOSTER, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 13282420071130, Replaced By: A2042920074
130
PIN BRAKE PEDAL TO BRAKE BOOSTER
130
PIN BRAKE UNIT TO PEDAL ASSEMBLY
140
LOCK PULL TO FASTENER
150
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
160
CONNECTOR TO BRAKE PEDAL, A 02654120100930801
165
CONNECTOR TO BRAKE PEDAL, A 02654120100930801
165
CONNECTOR TO BRAKE PEDAL, A 02430720090731800
