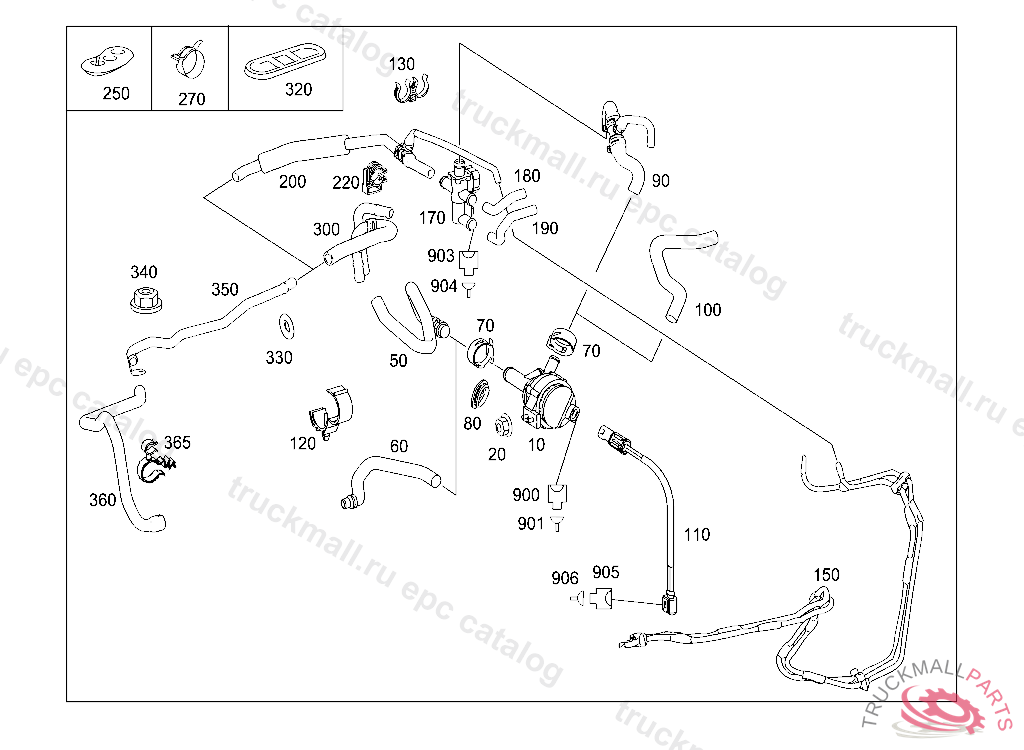

Поз.
Артикул
Описание
10
PUMP
20
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
60
HOSE FEED,BETWEEN ENGINE AND RECIRCULATING PUMP, A 02654120100930801
70
CLAMP14 MM
70
CLAMP25 MM
80
GROMMET AT RECIRCULATING PUMP
90
HOSE PUMP TO VALVE WITH T-TYPE DISTRIBUTOR
100
HOSE ASSEMBLY FEED LINE TO CIRCULATION PUMP
110
WIRING HARNESS TO PUMP
120
BRACKET AT BRACKET
130
BRACKET HOSE
150
PIPELINE TO WASHER FLUID HEATER
170
VALVE CHANGE-OVER VALVE
200
HOSE FROM INTERMEDIATE PIECE TO HEAT EXCHANGER
200
HOSE FROM INTERMEDIATE PIECE TO HEAT EXCHANGER
220
BRACKET HOSE ATTACHMENT
250
STOP PLUG BLIND PLUG
250
GROMMET PIPE LINE TO WHEELHOUSE
270
CLAMP14 MM
320
PLUG PRESSURE LINE TO SOLENOID VALVE, A 22780420080331 L 00369620080430
320
STOP PLUG PRESSURE LINE TO SOLENOID VALVE, A 22780320080331 L 00369520080430
330
GROMMET RETURN LINE
340
NUT COVERING TO CAB FIRE WALL
350
PIPELINE RETURN, Replaced By: A2218305715
350
PIPELINE RETURN
900
RECEPTACLE HOUSING RIGHT POWER WINDOW MOTOR 2-PIN SLK2.8,M10/2
901
GASKET
901
CONTACT SPRING. PLUG SOCKET0,5-1,0
903
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
904
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
905
HOUSING. PLUG PLUG, CONNECTOR, DIFFUSOR HEATER
906
SEAL. GASKET YELLOW,V 215932
906
CONTACT PIN WITH SINGLE-WIRE SEAL 0.75-1.0MM2 MLK1.2
