Поз.
Артикул
Описание

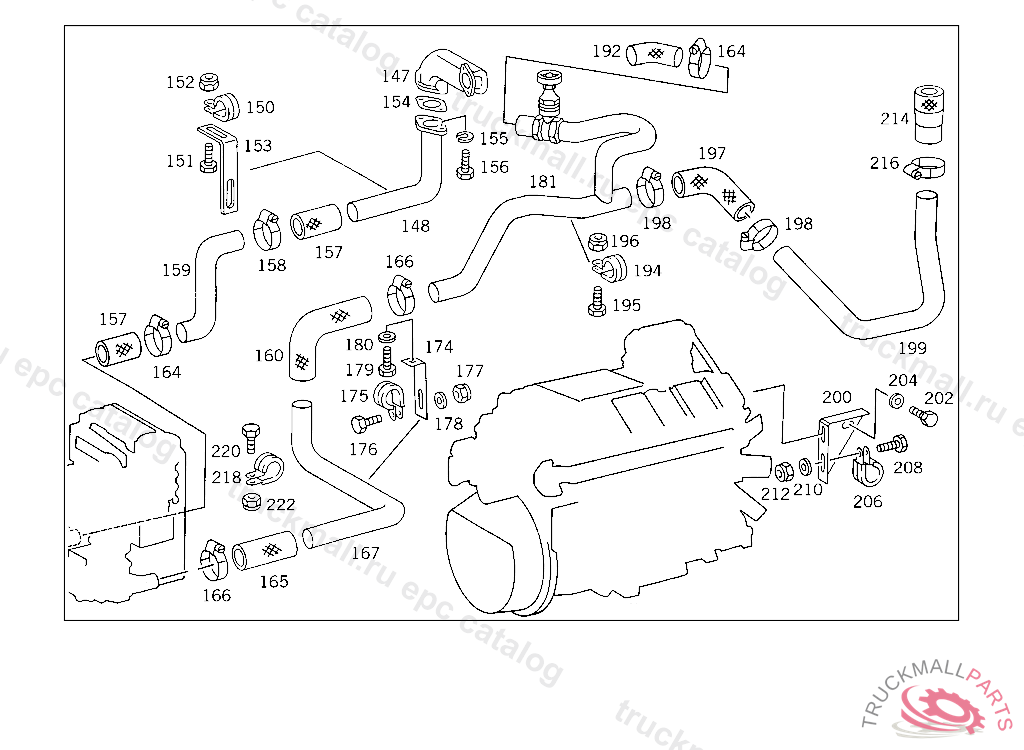

147
PIPE SOCKET COOLING WATER LINE
148
LINE COOLING WATER LINE TO ENGINE,000562
150
CLAMP HOSE TO COOLING WATER PIPE
151
SCREW CAB FLOOR COVERING M 6X25
152
NUT
153
BRACKET COOLING WATER LINE TO ENGINE MOUNTING
154
GASKET COOLING WATER LINE TO OUTLET
154
GASKET COOLING WATER LINE TO OUTLET
155
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
156
SCREW BRACKET TO SIDE MEMBER
156
SCREW , Replaced By: N304017010002
157
HOSE FEED AND RETURN LINE CONNECTION, LENGTH AVAILABLE 1000 MM
158
CLAMP HOSE FASTENING 50-70X13 MM
158
CLAMP , Replaced By: N000000000672
159
COOLING WATER PIPE OIL COOLER
160
MOLDED HOSE ,000561
164
CLAMP HOSE FASTENING 50-70X13 MM
164
CLAMP , Replaced By: N000000000672
165
HOSE FEED AND RETURN LINE CONNECTION, LENGTH AVAILABLE 1000 MM
166
CLAMP HOSE FASTENING 50-70X13 MM
166
CLAMP , Replaced By: N000000000672
167
COOLING WATER PIPE
174
BRACKET COOLING WATER PIPE TO TRANSMISSION,017855
174
BRACKET COOLING WATER PIPE TO TRANSMISSION,017855
175
CLAMP SUCTION LINE TO CROSS MEMBER
175
CLAMP SUCTION LINE TO CROSS MEMBER
176
SCREW BRACKET TO CROSS CONNECTION STRUT
176
SCREW , Replaced By: N304017008034
177
NUT , Replaced By: N913004008001
178
WASHER EXHAUST MUFFLER TO STRAP
178
WASHER , Replaced By: N000125008443
179
SCREW BRACKET TO TRANSMISSION
179
SCREW , Replaced By: N308676012038
179
SCREW BRACKET TO EXHAUST MUFFLER BRACKET
180
LOCK WASHER FITTING TO BRACKET
181
LINE COOLING WATER,021573
181
LINE COOLING WATER
181
LINE COOLING WATER
181
LINE ,004338
181
LINE FROM HOSE TO MOLDED HOSE,000562
181
LINE COOLING WATER
181
LINE
192
HOSE COOLING WATER LINE,021573
194
CLAMP SUCTION LINE TO CROSS MEMBER
194
CLAMP SUCTION LINE TO CROSS MEMBER
195
SCREW CAB FLOOR COVERING M 6X25
195
SCREW CAB FLOOR COVERING M 6X25
195
SCREW CAB FLOOR COVERING M 6X25
196
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
196
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
196
NUT , Replaced By: N910113006001
197
HOSE RETURN, TO BE ADAPTED DURING ASSEMBLY
198
CLAMP HOSE FASTENING 50-70X13 MM
198
CLAMP , Replaced By: N000000000672
199
LINE FROM MOLDED HOSE TO WATER PUMP
200
BRACKET COOLING WATER LINE TO ENGINE
200
BRACKET COOLING WATER LINE TO ENGINE
200
BRACKET COOLING WATER LINE TO ENGINE
200
BRACKET COOLING WATER LINE TO ENGINE
202
SCREW OIL LINE TO CRANKCASE
202
SCREW OIL LINE TO CRANKCASE
204
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
206
CLAMP SUCTION LINE TO CROSS MEMBER
206
CLAMP OIL LINE TO BRACKET
208
SCREW CAB FLOOR COVERING M 6X25
210
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
212
NUT
214
HOSE FEED
216
CLAMP HOSE FASTENING 50-70X13 MM
216
CLAMP , Replaced By: N000000000672
218
CLAMP SUCTION LINE TO CROSS MEMBER
220
SCREW BRACKET TO CROSS CONNECTION STRUT
220
SCREW , Replaced By: N304017008034
222
NUT BRACKET TO SIDE MEMBER
999
REPAIR KIT LOCKING VALVE
999
GASKET KIT RETARDER
999
OIL FILLER NECK , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 038111, Replaced By: A0019977130
999
999
COVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 038111, Replaced By: A0019977130
999
SCREW , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0004380471, +001A0004380280
999
999
999
999
COVER (HINGED COVER)
999
VALVE (FLOAT HOLLOW BALL)
999
SEAL RING , Replaced By: A0034301681
999
999
RUBBER MOUNTING , Replaced By: A3832401017
999
HOSE COOLING WATER FEED LINE
999
MOLDED HOSE , Replaced By: A3015010782
999
HOSE COOLING WATER LINE TO EXPANSION TANK
999
999
COUPLER TACHOGRAPH
999
COUPLER TACHOGRAPH
999
PIPE LINE , Replaced By: A3015010009
999
RUBBER MOUNTING REAR
999
RUBBER MOUNTING REAR
999
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
999
CLAMP LINES TO BRACKET
999
CLAMP , Replaced By: N000000000671
