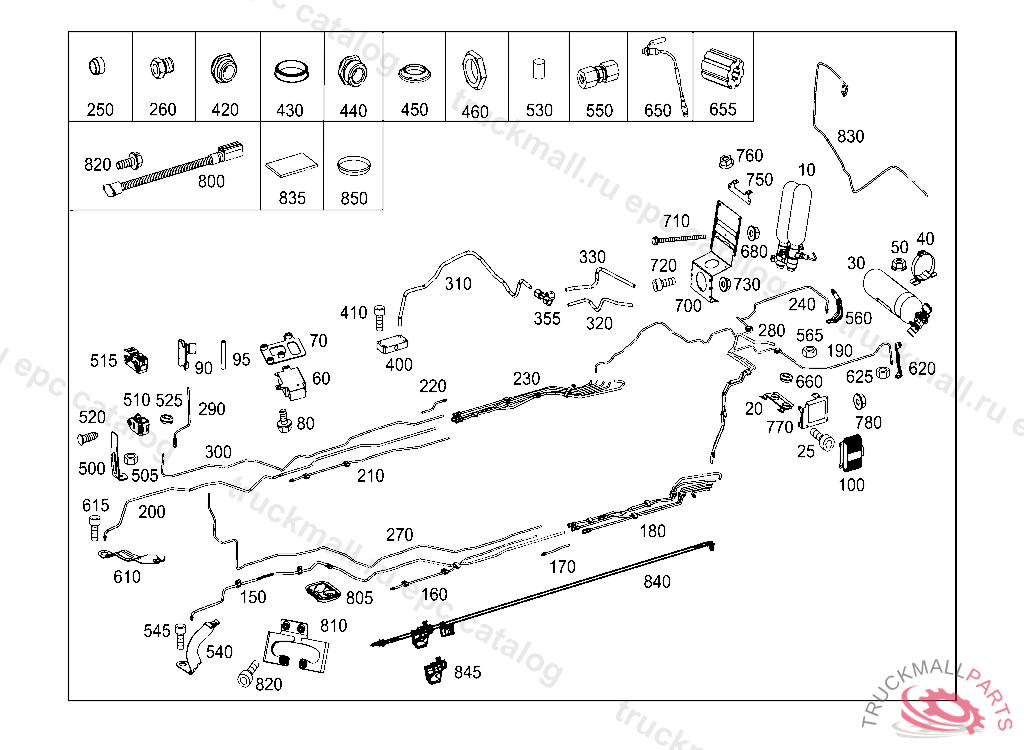

Поз.
Артикул
Описание
10
PRESSURE AGENT CONTAINER EXTINGUISHING AGENT, A 20130706
10
DASHPOT
20
CARRIER PLATE FIRE FIGHTING AGENT RESERVOIR
25
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
30
PRESSURE AGENT CONTAINER
40
BRACKET PRESSURE TANK
50
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
60
GAS SENSOR
70
BRACKET GAS SENSOR
80
HEXALOBULAR BOLT SPARE WHEEL WELL
90
CLIP FOR HOSE TO COVER
95
HOSE4.5X10X900MM
100
CONTROL UNIT
150
EXTINGUISHANT LINE LEFT FRONT
160
EXTINGUISHANT LINE LEFT CENTRAL
170
EXTINGUISHANT LINE LEFT CENTRAL
180
EXTINGUISHANT LINE LEFT REAR
190
EXTINGUISHANT LINE LEFT REAR
200
EXTINGUISHANT LINE RIGHT FRONT
210
EXTINGUISHANT LINE RIGHT CENTRAL
220
EXTINGUISHANT LINE LEFT CENTRAL
220
EXTINGUISHANT LINE RIGHT CENTRAL, A 03950520131204
230
EXTINGUISHANT LINE RIGHT REAR
240
EXTINGUISHANT LINE RIGHT REAR
250
GLAND SENSOR LINE MOUNTING
260
RETAINING SCREW
270
EXTINGUISHANT LINE LEFT FRONT
280
EXTINGUISHANT LINE LEFT REAR, A 20130706
280
EXTINGUISHANT LINE LEFT REAR, A 20130706
290
EXTINGUISHANT LINE
300
EXTINGUISHANT LINE RIGHT FRONT
310
EXTINGUISHANT LINE RIGHT REAR, A 20130706
310
EXTINGUISHANT LINE RIGHT REAR, A 20130706
320
EXTINGUISHANT LINE , A 20130706
320
EXTINGUISHANT LINE , A 20130706
330
EXTINGUISHANT LINE , A 20130706
330
EXTINGUISHANT LINE , A 20130706
355
DISTRIBUTOR BLOCK REAR RIGHT
355
DISTRIBUTOR BLOCK RIGHT
400
NOZZLE HOLDER REAR LEFT AND RIGHT
400
NOZZLE HOLDER FRONT LEFT AND RIGHT
410
HEXALOBULAR BOLT HINGES AT A-PILLAR, RIGHT 8X21/10.9
420
NOZZLE CENTRAL, A 03950520131204
420
NOZZLE CENTRAL, A 03950620131204
430
CAP EXTINGUISHING AGENT NOZZLE AT CENTER, A 03950520131204
430
STOP PLUG EXTINGUISHING AGENT NOZZLE AT CENTER, A 03950620131204
440
NOZZLE FRONT AND REAR
450
CAP EXTINGUISHING AGENT NOZZLE AT FRONT AND REAR
460
HEX NUT NOZZLE HOLDERS
500
CORNER BRACKET EXTINGUISHING AGENT LINE
500
CORNER BRACKET
505
HEXAGON NUT W COLLAR CENTER MUFFLER SHIELD AT MAIN FLOOR
505
GROMMET OIL COOLER TO BRACKET
510
LINE HOLDER FUEL LINE MOUNTING
510
LINE HOLDER FUEL LINE MOUNTING
515
LINE FASTENER FUEL LINE TO CROSS MEMBER
520
BOLT AT BRACKET
525
GROMMET OIL COOLER TO BRACKET
530
CAP
540
CORNER BRACKET EXTINGUISHING AGENT LINE
545
HEXALOBULAR BOLTM8X16
550
CONNECTION PIECE DIA., 8MM
550
CONNECTOR DIA., 10MM
560
CORNER BRACKET REAR LEFT
565
HEXAGON NUT W COLLAR CENTER MUFFLER SHIELD AT MAIN FLOOR
610
CORNER BRACKET EXTINGUISHING AGENT LINE
615
HEXALOBULAR BOLTM8X16
620
CORNER BRACKET EXTINGUISHING AGENT LINE
625
HEXAGON NUT W COLLAR CENTER MUFFLER SHIELD AT MAIN FLOOR
650
ALTERNATOR PRIMER PELLET
655
RUBBER RING SPRING STRUT LINE, FRONT RIGHT
660
GROMMET BRAKE CABLE TO REAR AXLE
680
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
700
ASSEMBLY PLATE IN REAR END, A 20130706
700
ASSEMBLY PLATE IN REAR END, A 20130706
710
HEXAGON HEAD BOLT SOLENOID VALVE TO BRACKET M8X140
720
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
730
NUT , Replaced By: N913023006001
750
RETAINING PLATE AT HAT TRAY, A 20130706
750
RETAINING PLATE AT HAT TRAY, A 20130706
760
NUT , Replaced By: N913023006001
770
BRACKET CONTROL UNIT
770
BRACKET CONTROL UNIT
780
NUT , Replaced By: N913023006001
800
TEMPERATURE SWITCH ENGINE COMPARTMENT
800
TEMPERATURE SWITCH ENGINE COMPARTMENT AT BOTTOM AND REAR-END FLOOR
805
SEALING FRAME
810
RETAINING CLIP FASTENING, TEMPERATURE SWITCH AT REAR
810
RETAINING CLIP FASTENING, TEMPERATURE SWITCH AT CENTER
820
HEXALOBULAR BOLT SPARE WHEEL WELL
820
HEXAGON HEAD BOLT BRACKET MOUNTING M6X16
820
TAPPING SCREW BRACKET TO CAB FLOOR 3.5X9.5
830
HOSE ASSEMBLY PRESSURE TANK
835
INTERMEDIATE LAYER ANTENNA COMBINER TO LATERAL LEFT COVERING IN LUGGAGE COMPARTMENT
835
SPACER TO HEADLINER FOR CABLE SUPPORT
840
HOSE ASSEMBLY GAS SENSOR
845
MOUNTING CLIP HOSE LINE ATTACHMENT, NO LONGER AVAILABLE, ORDER RANGE OF DELIVERY
850
SCREENING PLATE FRONT
850
SCREENING PLATE
