Поз.
Артикул
Описание

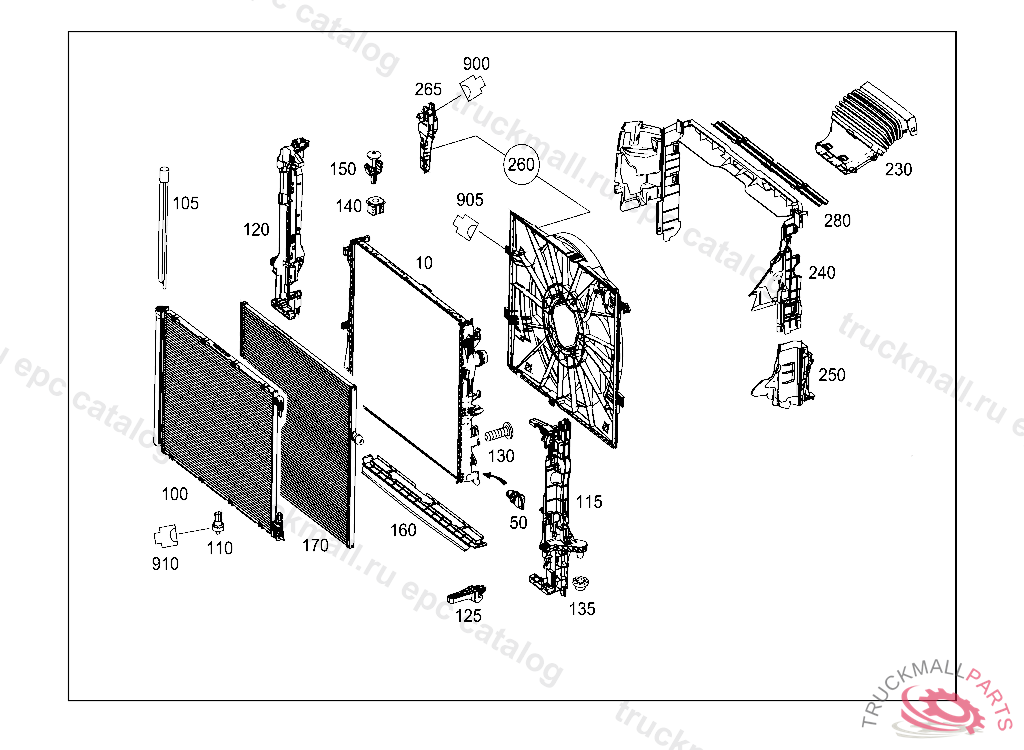

10
WATER COOLER , A 20140402
10
WATER COOLER
50
DRAIN PLUG DRAIN PLUG
100
REFRIGERANT CONDENSER
105
REFRIGERANT DRIER
110
PRESSURE SENSOR
115
SUPPORTING FRAME TO LEFT RADIATOR
120
SUPPORTING FRAME TO RIGHT RADIATOR
125
BRACKET RIGHT
125
BRACKET LEFT
130
HEXALOBULAR BOLT SPLASH GUARD TO FENDER M6X20
135
RUBBER MOUNT BOTTOM LEFT & RIGHT
140
BEARING TOP LEFT AND RIGHT, J 06236120041209
150
CLIP RADIATOR TO SUPPORT
160
RADIATOR GRILLE RADIATOR BOTTOM
170
WATER COOLER LOW TEMPERATURE
230
AIR DUCT COLD AIR INTAKE
240
AIR DUCT TOP
250
AIR DEFLECTOR BOX BOTTOM RIGHT
250
AIR DEFLECTOR BOX BOTTOM LEFT
250
AIR DUCT SEGMENT BOTTOM LEFT, A 20131004
250
AIR DUCT BOTTOM LEFT, A 20131004 L 00004720131031 V 00004720131031
250
AIR DUCT SEGMENT BOTTOM RIGHT, A 20131004 L 00004820131031 V 00004820131031
250
AIR DUCT BOTTOM RIGHT, A 20131004 L 00004720131031 V 00004720131031
260
BLOWER850 WATT
260
BLOWER
265
ACTUATOR SHUTTER
280
AIR DUCT RADIATOR
900
CLUTCH HOUSING VALVE UNIT ACTIVE BODY CONTROL Y36/2
905
COUPLING HOUSING COOLER BLOWER M4/7
910
CLUTCH. PIN BUSHING HOUSING SIREN
