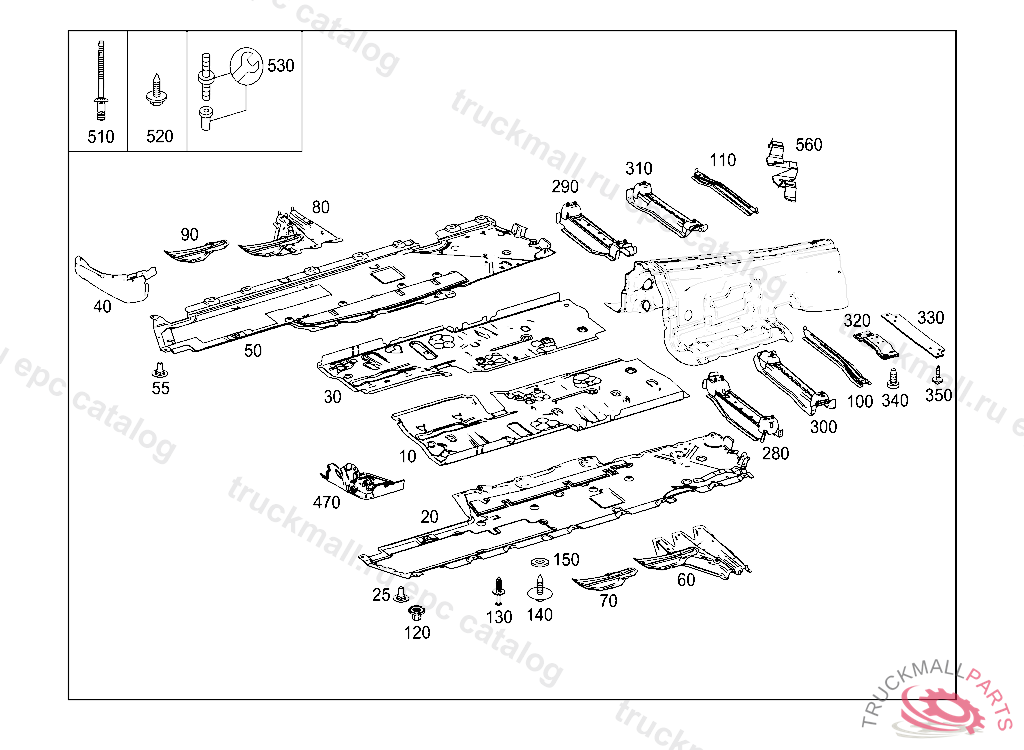

Поз.
Артикул
Описание
10
MAIN FLOOR LEFT
20
COVER SUBSTRUCTURE FLOOR,LEFT
25
HEXAGON NUT W COLLAR BRACKET MOUNTING
30
MAIN FLOOR RIGHT
40
REINFORCEMENT MAIN FLOOR,ON THE RIGHT
50
COVER SUBSTRUCTURE MAIN FLOOR,ON THE RIGHT
55
HEXAGON NUT W COLLAR BRACKET MOUNTING
60
END CROSS MEMBER LEFT
70
CONNECTING CARRIER LEFT
80
END CROSS MEMBER RIGHT
90
CONNECTING CARRIER RIGHT
100
CROSS MEMBER LEFT
110
CROSS MEMBER RIGHT
120
PLASTIC NUT WHEELHOUSE COVERING LEFT
120
LOCK RIGHT PANELLING TO SIDE MEMBER
130
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
130
RIVET COVERING TO SIDE MEMBER
140
TAPPING SCREW PROTECTIVE GRILLE 4.8X16 MM
140
SCREW BRACKET TO SIDE MEMBER M8X20
140
HEXALOBULAR BOLT BUMPER COVERING M6X20
140
HEXALOBULAR BOLT CABLE DUCT ON CANKCASE M8X20
140
HEXALOBULAR BOLT HEIGHT ADJUSTMENT,LEFT M8X16
140
HEXALOBULAR BOLT HEIGHT ADJUSTMENT, RIGHT
150
WASHER
280
CROSSMEMBER REAR SEAT FRONT LEFT
290
CROSSMEMBER REAR SEAT FRONT RIGHT
300
CROSSMEMBER REAR SEAT REAR LEFT
310
CROSSMEMBER REAR SEAT REAR RIGHT
320
STIFFENING PROPELLER SHAFT BEARING IN TUNNEL CENTER
330
STIFFENING AT TUNNEL,FRONT FLOOR
340
HEXALOBULAR BOLT REINFORCEMENT AT REAR TUNNEL M10X25, A 11853120080107 L 00481320071231 V 00024120071231 F 11609720080106 L 10000020090901
350
SCREW W RND. HEXAL. HEAD REINFORCEMENT TO TUNNEL AT CENTER M8X35
470
REINFORCEMENT FIREWALL BOTTOM LEFT
510
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
510
BLIND RIVET TO REINFORCEMENT AT BOTTOM LEFT
510
BLIND RIVET TO REINFORCEMENT AT RIGHT
520
FILLISTER HD.SCREW ATTACHMENT
530
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
560
BRACKET
