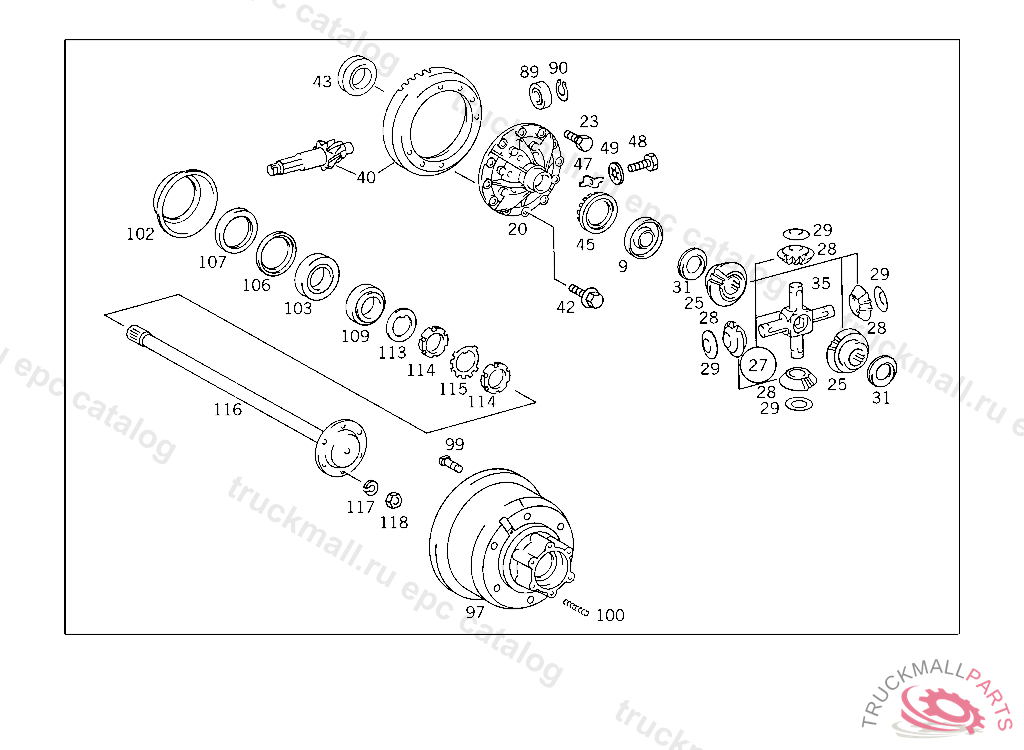

Поз.
Артикул
Описание
9
OIL COLLECTOR REAR AXLE TUBE
9
OIL COLLECTOR , Replaced By: A3093570082
20
DIFFERENTIAL GEAR , Replaced By: A3093506323
20
DIFFERENTIAL GEAR LESS RING GEAR AND PINION, 309.000-026 FROM CHASSIS 005892,309.070-091 FROM CHASSIS 001200,309.100-126 FROM CHASSIS 093945
23
SCREW CONNECTOR TO REAR SHIFTING ROD
23
SCREW , Replaced By: N304017010047
25
SIDE GEAR NUMBER OF TEETH: "16",001747, 309.0, 024330, 309.1017819
25
SIDE GEAR ,001746, 309.0, 024329, 309.1
27
REPAIR KIT DIFFERENTIAL GEAR,001747, 309.0, 024330, 309.1017819
27
REPAIR KIT DIFFERENTIAL GEAR
27
REPAIR KIT , Replaced By: A3093500040
28
DIFFERENTIAL PINION NUMBER OF TEETH: 10,001746, 309.0, 024329, 309.1
29
SPHERICAL WASHER1.00 MM
31
THRUST WASHER AS REQUIRED 1.70 MM
31
THRUST WASHER AS REQUIRED 1.75 MM
31
THRUST WASHER AS REQUIRED 1.40 MM
31
SPACER WASHER AS REQUIRED 1.70 MM,017819
31
SPACER WASHER AS REQUIRED 1.50 MM,017819
31
THRUST WASHER AS REQUIRED 1.50 MM
31
THRUST WASHER AS REQUIRED 1.80 MM
31
THRUST WASHER , Replaced By: A6693531362
31
THRUST WASHER , Replaced By: A6693531362
31
THRUST WASHER , Replaced By: A6693531562
31
THRUST WASHER , Replaced By: A6693531762
31
THRUST WASHER , Replaced By: A6693531962
31
THRUST WASHER , Replaced By: A6693532162
31
THRUST WASHER , Replaced By: A6693532362
31
THRUST WASHER AS REQUIRED 1.65 MM
31
THRUST WASHER AS REQUIRED 1.45 MM
31
THRUST WASHER AS REQUIRED 1.60 MM
31
THRUST WASHER AS REQUIRED 1.30 MM
31
THRUST WASHER AS REQUIRED 1.85 MM
35
DIFFERENTIAL SPIDER
35
DIFFERENTIAL SPIDER , Replaced By: A3093530020
40
RING GEAR AND PINION , Replaced By: A3093501539
40
RING GEAR AND PINION RATIO: 7:45
40
RING GEAR AND PINION RATIO: 7:48
42
SCREW RING GEAR TO DIFFERENTIAL CASE
42
SCREW , Replaced By: A3199901801
42
SCREW , Replaced By: A6709900501
43
TAPERED ROLLER BEARING DRIVE SHAFT
43
TAPERED ROLLER BEARING DRIVE SHAFT
43
TAPERED ROLLER BEARING OUTSIDE
43
TAPERED ROLLER BEARING OUTSIDE
45
SCREW COLLAR DIFFERENTIAL GEAR ADJUSTMENT
47
LOCK , Replaced By: A6693530073
47
LOCK DIFFERENTIAL GEAR ADJUSTMENT
48
SCREW
49
TOOTHED WASHER LEVER TO AIR SPRING VALVE,K 186867
89
CYLINDR. ROLLER BEARING PINION,INSIDE
89
CYLINDR. ROLLER BEARING PINION,INSIDE
89
CYLINDR. ROLLER BEARING PINION,INSIDE
90
LOCK RING BEARING BRACKET,4 972621
97
DRUM HUB
99
WHEEL MOUNTING BOLT , Replaced By: A3094020271
99
WHEEL MOUNTING BOLT
100
STUD REAR AXLE SHAFT TO HUB
102
OIL COLLECTOR WHEEL BEARING
103
TAPERED ROLLER BEARING INSIDE 60.325 MM
103
TAPERED ROLLER BEARING DRIVE SHAFT, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
103
TAPERED ROLLER BEARING INSIDE 60.325 MM
103
TAPERED ROLLER BEARING INSIDE 60.325 MM
103
TAPERED ROLLER BEARING INSIDE 60.325 MM
103
TAPERED ROLLER BEARING DRIVE SHAFT, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
103
TAPERED ROLLER BEARING DRIVE SHAFT, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
106
SPACER RING WHEEL BEARING
107
SEAL RING WHEEL BEARING
107
SEAL RING , Replaced By: A0199975847
109
TAPERED ROLLER BEARING DRIVE SHAFT
109
TAPERED ROLLER BEARING OUTSIDE
109
TAPERED ROLLER BEARING DRIVE SHAFT
109
TAPERED ROLLER BEARING OUTSIDE
113
SPACER WASHER WHEEL BEARING
113
SPACER WASHER , Replaced By: A3093560052
114
NUT WHEEL BEARING
115
LOCK PLATE WHEEL BEARING
116
REAR AXLE SHAFT , Replaced By: A3093570401
116
REAR AXLE SHAFT
117
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
118
NUT , Replaced By: N304032010002
118
NUT
999
TAPERED ROLLER BEARING , 019705, Replaced By: A0029819405, +001A3093530151, +001A3093530451
999
RING GEAR AND PINION RATIO: 6:39
999
DRUM HUB , Replaced By: A3093560402
999
DIFFERENTIAL PINION , Replaced By: A3093500040
999
CLAMP BRAKE LINE MOUNTING
999
DIFFERENTIAL CASE , 017819, Replaced By: A3093503623, +002A3093530215, +002A6693531362, +008N000933010058
999
DIFFERENTIAL CASE , 017819, Replaced By: A3093503623, +002A3093530215, +002A6693531362, +008N000933010058
999
TAPERED ROLLER BEARING , 019705, Replaced By: A0029818505, +001A3093530151, +001A3093530451
