Mercedes N009021005202 - ШАЙБА

O 309 B 309.071

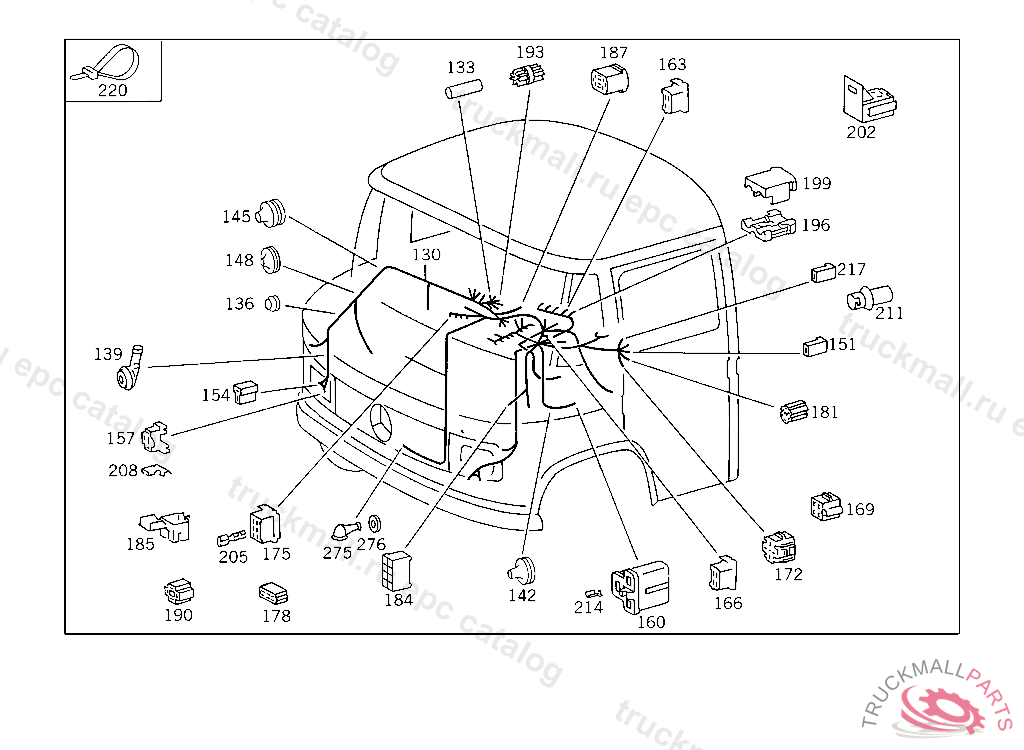

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 001 ELECTRICAL EQUIPMENT AND INSTRUMENTS IL. 2
  • Поз.
    Артикул
    Описание
  • 130
    CABLE HARNESS , Replaced By: A3095404505
  • 130
    CABLE HARNESS CAB MAIN CABLE HARNESS, 309.0 FROM IDENT NO. 184087-299104,EXCEPT FOR MODEL 050 FROM IDENT NO. 192298 299104
  • 130
    CABLE HARNESS , Replaced By: A3095407605
  • 130
    CABLE HARNESS CAB MAIN CABLE HARNESS, FROMIDENT NO. 299104-556499 EXCEPT FOR 551588,552392,556181,556184,556189,556194,556195,556196,556197.
  • 130
    CABLE HARNESS CAB MAIN CABLE HARNESS, FROM IDENT NO. 556500 ALSO INSTALLED ON 551588,552392,556181,556184,556189,556194,556195,556196,556197.
  • 130
    CABLE HARNESS CAB MAIN CABLE HARNESS, FROM IDENT NO. 002799-184086,EXCEPT FOR MODEL 050 UP TO IDENT NO. 192297
  • 130
    CABLE HARNESS , Replaced By: A3095404605
  • 130
    CABLE HARNESS CAB MAIN CABLE HARNESS, 309.0 FROM IDENT NO. 184087-299104,EXCEPT FOR MODEL 050 FROM IDENT NO. 192298 299104
  • 130
    CABLE HARNESS CAB MAIN CABLE HARNESS, FROMIDENT NO. 299104-556499 EXCEPT FOR 551588,552392,556181,556184,556189,556194,556195,556196,556197.
  • 130
    CABLE HARNESS CAB MAIN CABLE HARNESS, FROM IDENT NO. 556500 ALSO INSTALLED ON 551588,552392,556181,556184,556189,556194,556195,556196,556197.
  • 133
    GROMMET1.75 MM
  • 133
    GROMMET3.0 MM
  • 133
    GROMMET5.0 MM
  • 133
    GROMMET HOSE LINE PROTECTION TO 000 546 16 30,71 30
  • 136
    GROMMET
  • 136
    GROMMETD6/32
  • 139
    GROMMET HEADLAMP
  • 139
    GROMMET
  • 142
    GROMMET , Replaced By: A3459977481
  • 142
    GROMMET , Replaced By: A3359970081
  • 142
    GROMMET
  • 145
    GROMMET ,299103
  • 145
    GROMMET
  • 148
    GROMMET ,580898
  • 151
    PIN BUSHING HOUSING UNIPOLAR
  • 154
    PIN BUSHING HOUSING BIPOLAR
  • 157
    PIN BUSHING HOUSING 3-POLE
  • 160
    PIN BUSHING HOUSING , Replaced By: A0055450228
  • 160
    COVER , Replaced By: A0055450228
  • 160
    PIN BUSHING HOUSING 3-POLE
  • 163
    PIN BUSHING HOUSING 4-POLE
  • 166
    PIN BUSHING HOUSING 4-POLE
  • 169
    PIN BUSHING HOUSING WINDSHIELD WASHER FOOT OPERATED SWITCH
  • 172
    PIN BUSHING HOUSING 5-POLE
  • 175
    PIN BUSHING HOUSING , Replaced By: A0015458128
  • 175
    PIN BUSHING HOUSING 6-POLE
  • 178
    PIN BUSHING HOUSING 6-POLE
  • 181
    PIN BUSHING HOUSING 7-POLE
  • 184
    PIN BUSHING HOUSING 8-POLE
  • 185
    PIN BUSHING HOUSING 4-POLE
  • 187
    PIN BUSHING HOUSING HAZARD WARNING LIGHT SWITCH,5 220080
  • 190
    PIN BUSHING HOUSING , UP TO IDENT NO. 655197 EXCEPT FOR 500001-599999
  • 193
    PLUG HAZARD WARNING LIGHT SWITCH, FROM IDENT NO. 655198 ALSO INSTALLED ON 500001-5999995 107260
  • 196
    PLUG , Replaced By: A0025454928
  • 196
    PLUG , Replaced By: A0085453728, +002A0035452626, +001A0085453828
  • 196
    PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
  • 199
    CAP ,4 248860
  • 202
    PIN BUSHING HOUSING TIME-LAG RELAY, Replaced By: A0008250518
  • 205
    PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
  • 205
    PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
  • 205
    PIN BUSHING , Replaced By: A0075458226
  • 205
    PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 4-6 MM2
  • 205
    PIN BUSHING , Replaced By: A0005453726
  • 205
    PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
  • 208
    PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 1-2.5 MM2
  • 208
    PIN BUSHING LESS DETENT 1-2.5 MM2
  • 208
    PIN BUSHING WITH DETENT,LESS CATCH FOR HOUSING 6 MM2,5 097182
  • 208
    PIN BUSHING , Replaced By: A0075457426
  • 208
    PIN BUSHING OFFSET 4 MM2
  • 208
    PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2.5 MM2
  • 211
    PLUG SOCKET6-10 MM2,303364
  • 214
    PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2.5 MM2
  • 214
    PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 4 MM2
  • 217
    BOOT PIN BUSHING
  • 220
    LOOM TIE LINE MOUNTING 280 MM
  • 275
    BOOT HEATER PLUGS
  • 276
    WASHER , Replaced By: N009021005205
  • 276
    WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
  • 999
    CLAMP , Replaced By: A3099950140
  • 999
    CLAMP LINE TO CAB
  • 999
    CABLE HARNESS CAB MAIN CABLE HARNESS, FROM IDENT NO. 145737-184086 EXCEPT FOR: 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913,145914,145915,145916,145917,146138. ALSO INSTALLED ON: 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701.
  • 999
    ELECTRIC CABLE FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR, UP TO IDENT NO.042865 ALSO INSTALLED ON 042868-042871,042876,042878-042881,042891,042892,042896,042902,042921,042943,042950,043013,043021.
  • 999
    ELECTRIC CABLE STOP LIGHT SWITCH,303365
  • 999
    ELECTRIC CABLE IGNITION COIL TO SOLENOID VALVE,245835
  • 999
    ELECTRIC CABLE , Replaced By: A3095402238
  • 999
    CABLE HARNESS CAB MAIN CABLE HARNESS, FROM IDENT NO. 002799-145736 ALSO INSTALLED ON 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913,145914,145915,145916,145917,146138. EXCEPT FOR: 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701.
  • 999
    BRACKET SPEEDOMETER ADAPTER,182065
  • 999
    CABLE HARNESS CAB MAIN CABLE HARNESS,002798
  • 999
    CABLE HARNESS ,002798, Replaced By: A3095402005
  • 999
  • 999
    ELECTRIC CABLE FUSES NOS.3-4
  • 999
  • 999
    PLUG , FROM IDENT NO.556500 ALSO INSTALLED ON 543411,543418,551771,552021,552551,552687,552694,552840,552846,553000,553005,553105,553112,553264, 553332,554081,554103,554213,554266,554270,554993,555186,555885,555992,556138,556169,556187.
  • 999
    PLUG
