Поз.
Артикул
Описание

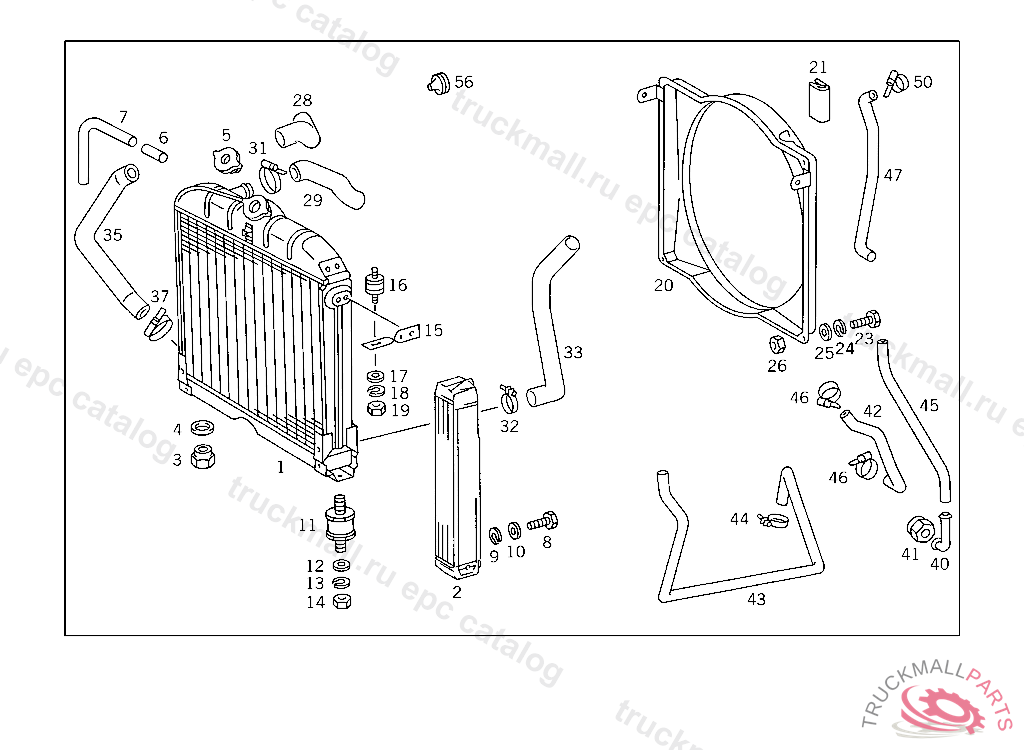

1
RADIATOR WATER,556500
1
RADIATOR WATER
1
RADIATORBEHR, 309.0 UP TO CHASSIS 001150, 309.1 UP TO CHASSIS 015696 EXCEPT FOR:015539,015594,015609
1
RADIATOR , FROM CHASSIS 611358 EXCEPT FOR 611519,611537 ALSO INSTALLED ON 610763,610832,610834,610848,610863
2
RADIATOR OIL TO 309 500 64 02
3
SCREW PLUG WATER DRAIN
4
SEAL RING FUEL LINE TO FEED PUMP
5
RADIATOR CAPTO 335 500 12 03
5
RADIATOR CAP WITH PRESSURE RELIEF VALVE
6
DRAIN PIPE
7
HOSE , Replaced By: A0139978682
8
SCREW COVER PLATE TO COVER PLATE M 6 X 10
8
SCREW , Replaced By: N304017006034
9
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
10
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
11
RUBBER BUFFER BRACKET TO SUPPORT
12
WASHER RADIATOR MOUNTING,BOTTOM,599737
12
WASHER RADIATOR TO RUBBER MOUNTING
12
WASHER , Replaced By: N000125010532
13
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
14
NUT BRACKET TO SUPPORT AND TO END PIECE
15
BRACKET ,556499
15
BRACKET RADIATOR BRACING,TOP,556500
15
BRACKET COMPRESSED AIR LINE TO FRAME
15
BRACKET , 309.0 UP TO CHASSIS 001150, 309.1 UP TO CHASSIS 015696 EXCEPT FOR:015539,015594,015609
16
RUBBER BUFFER COVERING TO FRAME
17
WASHER EXHAUST MUFFLER TO STRAP
17
WASHER BRACKET TO LEFT SIDE MEMBER
17
WASHER , Replaced By: N000125008443
17
WASHER , Replaced By: N009021008213
18
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
19
NUT
20
FAN SHROUD , 309.0 FROM CHASSIS 001151, 309.1 FROM CHASSIS 015697 ALSO INSTALLED ON:015539,015594,015609
20
FAN SHROUD ,556500
20
FAN SHROUD , 309.0 UP TO CHASSIS 001150, 309.1 UP TO CHASSIS 015696 EXCEPT FOR:015539,015594,015609
21
RUBBER SECTION AT LEFT SIDE MEMBER 85 MM
23
SCREW IN CASE OF SUBSEQUENT INSTALLATION
23
SCREW COVER PLATE TO COVER PLATE M 6 X 10
23
SCREW BRACKET TO TAIL LAMP BRACKET
23
SCREW , Replaced By: N304017006034
24
SPRING WASHER LICENSE PLATE TO BRACKET
25
WASHER COMPRESSED AIR LINE TO BRACKET
26
NUT , Replaced By: N913004006001
26
NUT PUMP TO BRACKET
28
HOSE FROM THERMOSTAT TO RADIATOR, 309.0 FROM CHASSIS 003613-556499
28
HOSE FROM THERMOSTAT TO RADIATOR, 309.0 FROM CHASSIS 001151-003612, 309.1 FROM CHASSIS 015697-059317 ALSO INSTALLED ON:015539,015594,015609
28
HOSE FROM THERMOSTAT TO RADIATOR, 309.0 UP TO CHASSIS 001150, 309.1 UP TO CHASSIS 015696 EXCEPT FOR:015539,015594,015609
29
HOSE FROM THERMOSTAT TO RADIATOR,352306-556499
29
HOSE FROM THERMOSTAT TO RADIATOR,352305028345
29
HOSE ,556500
31
CLAMP , Replaced By: N000000000670
31
CLAMP
32
CLAMP
32
CLAMP , Replaced By: N000000000671
33
HOSE FROM RADIATOR TO WATER PUMP, 309.0 FROM CHASSIS 003903-556499
33
HOSE FROM RADIATOR TO WATER PUMP, 309.0 UP TO CHASSIS 001150, 309.1 UP TO CHASSIS 015696 EXCEPT FOR:015539,015594,015609
35
HOSE FROM RADIATOR TO THERMOSTAT,352305028345
35
HOSE FROM RADIATOR TO THERMOSTAT,352306
37
CLAMP , Replaced By: N000000000671
37
CLAMP
40
PIPE ELBOW FROM CYLINDER HEAD TO HEAT EXCHANGER,373687
41
UNION NUT LINE CONNECTION
42
HOSE FROM CYLINDER HEAD TO HEAT EXCHANGER,373688-556499
42
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
43
HOSE FROM CYLINDER HEAD TO HEAT EXCHANGER,556500
44
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
44
CLAMP , Replaced By: N000000000667
45
HOSE FROM HEATING WATER PIPE TO HEAT EXCHANGER,599736
46
CLAMP , Replaced By: N000000000667
46
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
47
HOSE FROM HEAT EXCHANGER TO WATER PUMP,028345
47
HOSE FROM HEAT EXCHANGER TO WATER PUMP,556499
50
CLAMP , Replaced By: N000000000667
50
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
56
GROMMETD6/32
999
RADIATOR FILLER CAP. RADIATOR CAP
999
GASKET O.D., 37 MM
999
RADIATOR CAPTO 309 500 17 02
999
RUBBER BUFFER , Replaced By: A0019875240
999
RUBBER BUFFER EXHAUST MUFFLER
999
SCREW PLUG , Replaced By: N007604014101
999
RADIATOR , Replaced By: A3095001702
999
FAN HOUSING , FIRST EXHAUST STOCK OF OLD PARTS FROM IDENT NO. 015699-064721 ALSO INSTALLED ON 015539,015594,015609,015697., Replaced By: A3095051555
999
HOSE , FIRST EXHAUST STOCK OF OLD PARTS FROM IDENT NO. 015699-064721 ALSO INSTALLED ON 015539,015594,015609,015697., Replaced By: A3095011382
999
HOSE , Replaced By: A3095061335
999
HOSE , Replaced By: A3095061235
999
HOSE , EXHAUST STOCK OF OLD PARTS FROM CHASSIS 373688-514819, Replaced By: A3095062735
