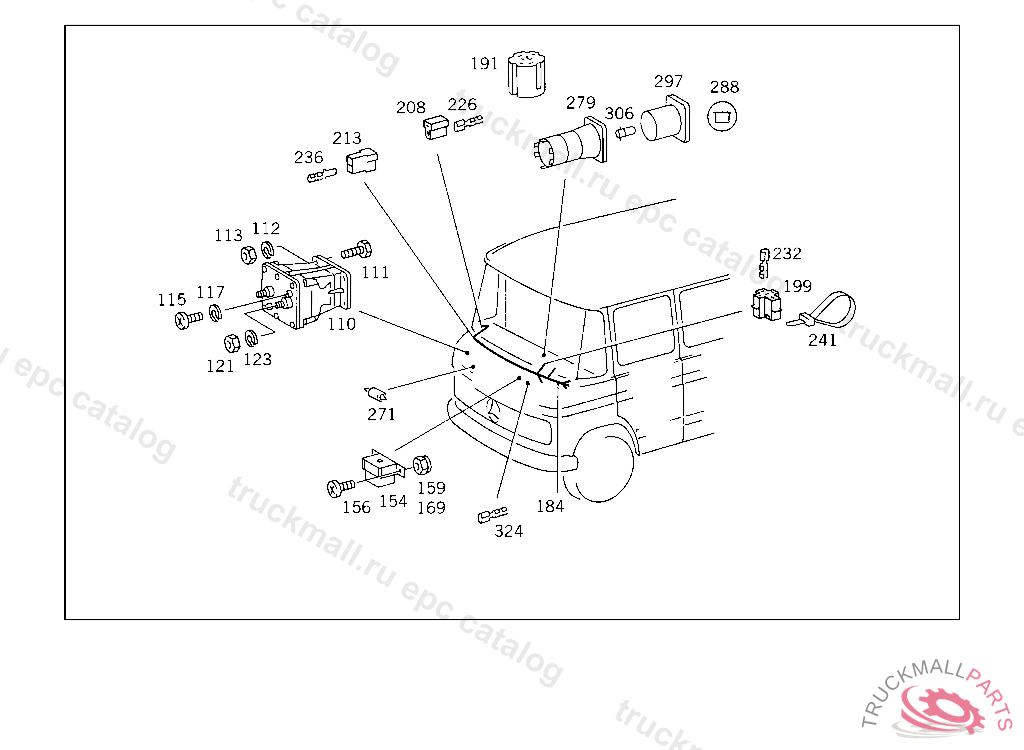

Поз.
Артикул
Описание
110
SWITCH (BATTERY MASTER SWITCH)
111
SCREW , Replaced By: N304017008034
111
SCREW BRACKET TO CROSS CONNECTION STRUT
112
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
113
NUT
115
SCREW STEP SWITCH AM 5X10
117
LOCK WASHER BRACKET TO STEERING COLUMN END
121
NUT BRACKET TO SUPPORT AND TO END PIECE
121
NUT STRAP TO SUPPORT,5 149419
123
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
123
LOCK WASHER FITTING TO BRACKET
154
CASE DIODES,TO BATTERY MASTER SWITCH TYP: AK 336.9
156
SCREW STEP SWITCH AM 5X10
159
NUT TWO-WAY VALVE TO BRACKET
169
NUT TWO-WAY VALVE TO BRACKET
184
ELECTRIC CABLE FROM BATTERY MASTER SWITCH TO RELAY & CAB PLUG CONNECTION
191
PIN BUSHING HOUSING 7-POLE
199
PIN BUSHING HOUSING 5-POLE
208
PIN BUSHING HOUSING BIPOLAR
213
PIN BUSHING HOUSING. PLUG HOUSING FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH
226
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
232
PIN BUSHING , Replaced By: A0075458226
232
PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 4-6 MM2
236
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
241
LOOM TIE LINE MOUNTING 280 MM
271
FUSEA8
271
FUSE , Replaced By: N072581008101
279
SWITCH ENGINE COMPARTMENT LAMP,5 220080
288
LENS PUSHBUTTON SWITCH
297
CAP REAR FOGLAMP SWITCH
306
BULB TELL-TALE LAMP
324
PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 4-6 MM2
999
PLUG TO PLUG THE FREE BORES IN INSTRUMENT PANEL,5 220080
999
POSITIVE CABLE , Replaced By: N922002050000, +002N046234010008
999
ELECTRIC CABLE FROM BATTERY MASTER SWITCH TO CABLE CONNECTOR
999
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR
999
CABLE SHOE BATTERY CABLE TO BATTERY MASTER SWITCH
999
ELECTRIC CABLE , Replaced By: A6735460011
