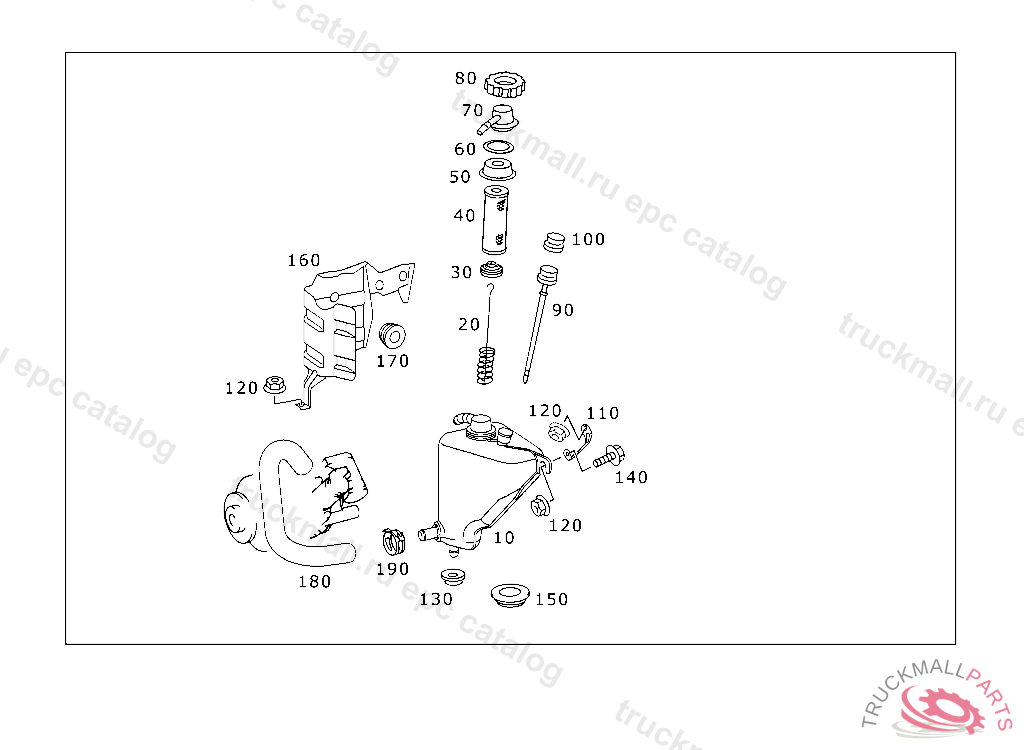

Поз.
Артикул
Описание
10
DASHPOT OIL RESERVOIR
20
SPRING ABC RESERVOIR
30
SEAL RING , 116.020 092526 024,025 099723 028,029 043105 032,033 072837
40
OIL FILTER ABC RESERVOIR
50
GROMMET ABC RESERVOIR
60
SEAL RING
70
COVER SUPPLY TANK
80
NUT
90
OIL DIPSTICK ABC RESERVOIR
100
PROTECTIVE CAP
110
BRACKET OIL RESERVOIR TO WHEELHOUSE
110
BRACKET OIL RESERVOIR TO WHEELHOUSE
120
NUT BRACKET TO BODY SHELL M6
130
GROMMET UNDER OIL RESERVOIR, TO BE ADAPTED DURING ASSEMBLY
140
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
140
HEXALOBULAR BOLT LINE MOUNTING M6 X 25
150
STOP PLUG A-PILLAR, OUTSIDE RIGHT 22.5 MM
160
SCREENING AT OIL TANK
160
PROTECTIVE PLATE AT OIL TANK, Replaced By: A2303200186, +002A0009901210
170
RUBBER MOUNTING EXPANSION TANK TO WHEELHOUSE
180
SUCTION HOSE FROM OIL TANK TO PUMP
190
CLAMP POWER STEERING PUMP TO OIL TANK, FROM MODEL YEAR 2000CODE 800
