Поз.
Артикул
Описание

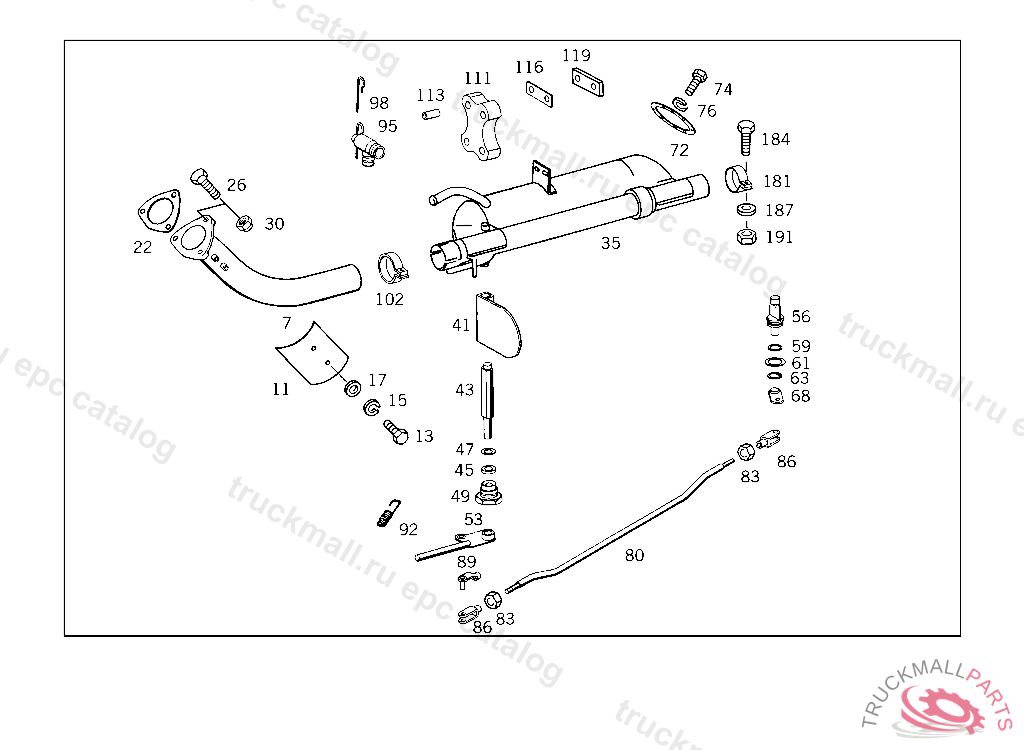

7
EXHAUST PIPE ,002915, Replaced By: A3174902019, +001A3174920007
11
PROTECTIVE PLATE FRONT EXHAUST PIPE
13
SCREW CLAMP TO BRACKET AND TO PIPE
15
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
17
WASHER EXHAUST MUFFLER TO STRAP
17
WASHER , Replaced By: N000125008443
22
FLANGE GASKET FRONT EXHAUST PIPE TO EXHAUST MANIFOLD, ELIMINATED - NO LONGER REQUIRED
22
FLANGE GASKET , Replaced By: A4424920080
22
FLANGE GASKET , Replaced By: A3024900080
26
SCREW CONNECTOR TO EXHAUST MANIFOLD
30
NUT EXHAUST PIPE TO EXHAUST MANIFOLD
35
HEATING UNIT (EXHAUST-OPERATED WATER HEAT EXCHANGER),002915
41
FLAP
43
SHAFT
45
SEAL RING
47
SPACER WASHER
49
NUT
53
LEVER
56
FLAP
59
SEAL RING
61
SPACER WASHER
63
LOCK RING CONVERTER PRESSURE MAINTAINING
68
LEVER
72
GASKET
74
SCREW COVER PLATE TO COVER PLATE M 6 X 10
74
SCREW , Replaced By: N304017006034
76
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
80
ROD ,003362
83
NUT BALL PIVOT TO LEVER
86
YOKE OPERATING ROD TO BRACKET
89
PIN OPERATING ROD TO BRACKET
89
PIN , Replaced By: N918001006000
92
SPRING
95
VALVE ,4 263013
98
SPRING ,4 263013
102
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
111
DAMPING PAD EXHAUST MUFFLER TO SUPPORT
113
SPACER TUBE BRACKET
116
BASE PLATE EXHAUST MUFFLER TO SUPPORT
119
INSULATION EXHAUST MUFFLER TO SUPPORT
181
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
184
SCREW END PIECE TO EXHAUST PIPE M 10X25
187
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
191
NUT BRACKET TO SUPPORT AND TO END PIECE
999
DAMPING PAD EXHAUST MUFFLER TO SUBSTRUCTURE,047203
999
999
999
999
999
SUSPENSION ,047202, Replaced By: A3054920182, +004N000125008418, +002N000931008244, +002N000931008246, +004N913004008005
999
DAMPING PAD , Replaced By: A3054920082
999
REPAIR KIT , Replaced By: A3024900037
999
DAMPING PAD MOUNTING PARTS
999
EXHAUST PIPE FRONT,FRONT PART
999
999
999
EXHAUST MUFFLER
999
EXHAUST PIPE FRONT,REAR PART
999
999
999
999
999
999
999
999
DAMPING PAD , Replaced By: A0004920082
999
SCREW VALVE TO BRACKET
999
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
999
NUT COVER PLATE
999
SCREW COVERING TO BRACKET
999
SCREW EXHAUST MUFFLER TO SUPPORT
999
CLAMPING SLEEVE STEERING WHEEL TILT ADJUSTMENT,4 231946-4 430729
999
CLAMPING SLEEVEKNORR
999
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
999
LOCK WASHER FITTING TO BRACKET
999
NUT BRACKET TO SIDE MEMBER
