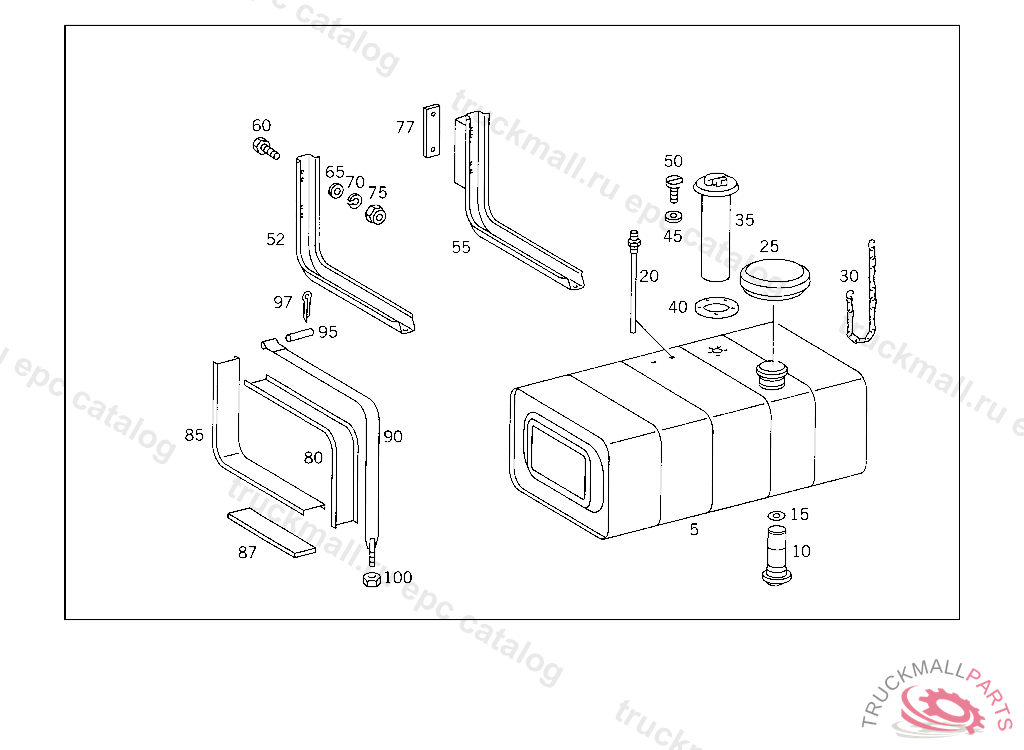

Поз.
Артикул
Описание
5
FUEL TANK LESS SENDER UNIT 300 L
5
FUEL TANK LESS SENDER UNIT 300 L
5
FUEL TANK LESS SENDER UNIT 300 L
10
FUEL STRAINER
15
SEAL RING FUEL STRAINER SCREEN
20
RISING PIPE , 344.058 UP TO SHASSIS 659793
25
FILLER CAP
30
CHAIN FILLER CAP
35
SENDER UNIT
35
SENDER UNIT , Replaced By: A3505427017
35
SENDER UNIT , Replaced By: A3455427617
40
GASKET FUEL GAUGE SENDER UNIT TO FUEL TANK
45
SEAL RING SENDER UNIT AND COVER TO FUEL TANK
50
SCREW COMPRESSED AIR LINE MOUNTING
52
CONSOLE FUEL TANK
55
SUPPORT FUEL TANK
60
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
60
SCREW , Replaced By: N308676014012
65
WASHER BRACKET TO SIDE MEMBER,5 703114
65
WASHER BATTERY CASE
70
LOCK WASHER SUPPORT TO SIDE MEMBER
75
NUT , Replaced By: N910113014000
77
BASE CONSOLE TO SIDE MEMBER
80
CARDBOARD FUEL TANK TO CONSOLE
85
CARDBOARD FUEL TANK TO CONSOLE
87
MOUNTING PLATE FUEL TANK TO CONSOLE
87
SHIM BRAKE ANCHOR
90
STRAP FUEL TANK TO SUPPORT
95
PIN STRAP TO SUPPORT
97
COTTER PIN STRAP TO SUPPORT
100
NUT FUEL TANK TO SUPPORT
100
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
999
NUTTO 345 997 74 36/364 997 71 36
999
VALVE PART
999
KNOB
999
MAGNET24 V, TO 364 997 71 36
999
BANJO UNION , Replaced By: N915052008019
999
SEAL RING
999
CLAMP LINE MOUNTING
999
RISING PIPE
999
BRACKET FUEL LINE
999
CLAMP LINE MOUNTING
999
CLAMP , Replaced By: A1109950401
999
CLAMP
999
HOSE THRU SIDE MEMBER AND APPARATUS SUPPORT,600892
999
BRACKET LINE MOUNTING
999
FUEL STRAINER , Replaced By: A3124711620
999
LINE FROM FUEL TANK TO RUBBER HOSE
999
LINE FROM RUBBER HOSE TO FUEL TANK
999
LINE FROM RUBBER HOSE TO FUEL TANK
999
LINE FROM FUEL TANK TO "T" CONNECTION FITTING
999
LINE RETURN
999
LINE LEAK RETURN
999
HOSE
999
FUEL TANK LESS SENDER UNIT 300 L
999
LINE , Replaced By: A3504707365
999
LINE , Replaced By: A3504707465
999
LINE FROM FUEL TANK TO FILTER,787696
999
SENDER UNIT , Replaced By: A3455427917
999
LINE FROM THREE-WAY VALVE TO T-FITTING
999
LINE
999
LINE FROM THREE-WAY VALVE TO T-FITTING
999
LINE FROM T-FITTING TO SOLENOID VALVE
999
LINE
999
LINE FROM T-FITTING TO VALVE, NOT USED
999
LINE FROM T-FITTING TO T-FITTING, NOT USED
999
CONNECTOR , Replaced By: A3454297736
999
INTERMEDIATE PIECE CONNECTION OF FUEL LINES
999
LINE FROM FUEL TANK TO FITTING, FROM IDENT NO. 680089
999
LINE FROM FUEL TANK TO FITTING, FROM IDENT NO. 680089
999
LINE FROM ENGINE TO RUBBER HOSE, 350.033 UP TO IDENT NO. 680088
999
LINE FROM TANK TO RUBBER HOSE, 013 FROM CHASSIS 325815
999
LINE FROM RUBBER HOSE TO TANK, 013 FROM CHASSIS 325815
999
LINE LEAK RETURN, 013 FROM CHASSIS 325815
999
LINE FILTER TO RUBBER HOSE
999
LINE FILTER TO RUBBER HOSE, 350.033 UP TO IDENT NO. 680088
999
CLAMP CONNECTION OF FUEL LINES ONE BELOW THE OTHER
999
FUEL STRAINER AT TANK
999
CAP TO PLUG THE FREE BORES USED FOR SWITCHES IN INSTRUMENT PANEL,071184
999
CAP REPAIR KIT
999
MAGNET12 V, TO 345 997 74 36
999
LINE , Replaced By: A3444707265
999
LINE , Replaced By: A3444707465
999
LINE , Replaced By: A3444707765
999
LINE , Replaced By: A3444707865
999
LINE , Replaced By: A3444707965
999
LINE , Replaced By: A3444708165
999
LINE , Replaced By: A3444708265
999
LINE , Replaced By: A3444708365
999
RISING PIPE , Replaced By: A3444700126
999
FUEL TANK , Replaced By: A3444700401
999
LINE , Replaced By: A3444703964
999
LINE , Replaced By: A3444704064
999
LINE , Replaced By: A3444704164
999
LINE , Replaced By: A3444704264
999
BALL-TYPE NIPPLE
999
FITTING
