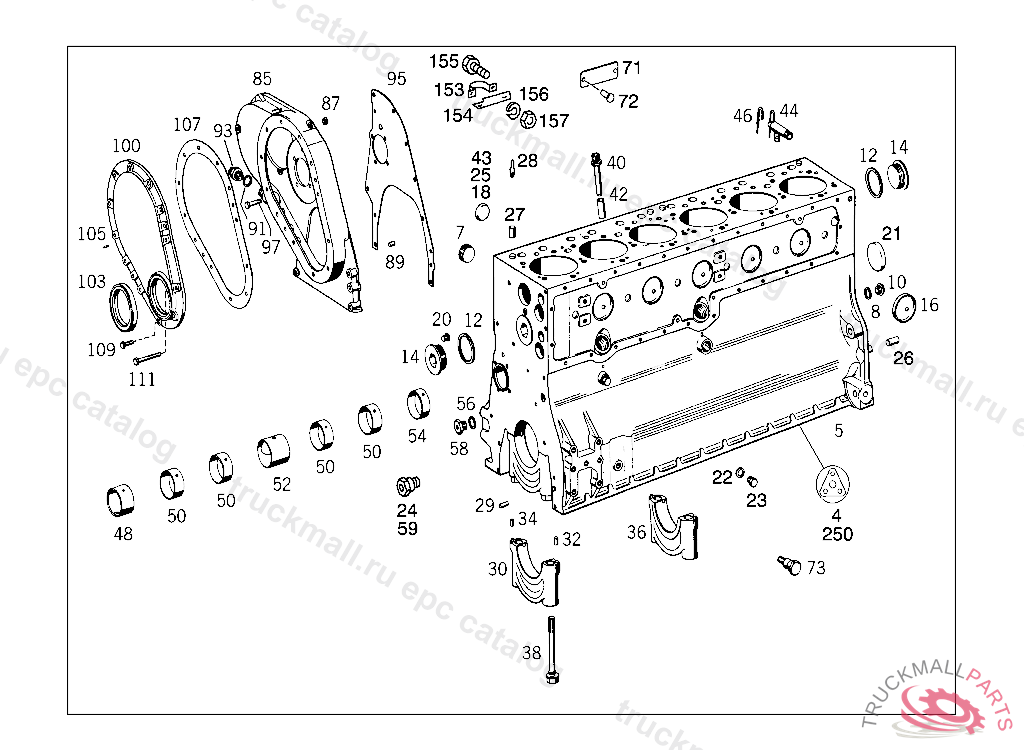

Поз.
Артикул
Описание
4
GASKET KIT CYLINDER CRANKCASE, FOR BREAK-DOWN OF OF GASKET KIT, SEE END OF GROUP 01
4
GASKET KIT , EXHAUST STOCK OF OLD PART NUMBER FIRST THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3605860790, +001A3275860190
4
GASKET KIT , Replaced By: A3600105508
4
GASKET KIT , Replaced By: A3600100280
5
ENGINE , UP TO ENGINE 002884 EXCEPT FOR 002754-002757,002811-002834,002836-002865,002867-002881., Replaced By: A3270101108, +001A3270110008, +001A3520184216, +001A3271502072, +001A3271500275, +001A3272010680, +001A3522036439, +001A3272030073, +001A3276180053, +001A0039976746, +001A0039975692, +002N000931010111
5
CRANKCASE , FROM ENGINE 002885 ALSO INSTALLED ON 002754-002757,002811-002834,002836-002865,002867-002881, Replaced By: A3270101108, +001A3520184216, +001A3270180053, +001A3279971071
5
CRANKCASE , Replaced By: A3270101108, +001A3270110008, +001A3520184216, +001A3270180053, +001A0039976746
5
CRANKCASE WITH CAMSHAFT BEARINGS,LESS BELL HOUSING
7
SCREW PLUG CORE HOLE IN PUSH ROD CHAMBER
8
SEAL RING TEMPERATURE GAUGE SENDER UNIT
10
SCREW PLUG OIL PASSAGE,REAR
12
SEAL RING REAR CORE HOLE
14
SCREW PLUG REAR CORE HOLE
16
EXPANSION PLUG CORE HOLE,OIL COOLER SIDE
18
EXPANSION PLUG P.T.O.
20
THREADED CHUCK
21
EXPANSION PLUG CAMSHAFT BEARINGS NO. 7
22
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
23
SCREW PLUG RELAY VALVE,CONNECTION "20",RIGHT
25
EXPANSION PLUG P.T.O. HOUSING
25
CAP. EXPANSION PLUG , UP TO ENGINE 002884 EXCEPT FOR, 002754-002757,002811-002834,002836-002865,002867-002881
26
CYLINDRICAL PIN FLYWHEEL HOUSING TO CYLINDER CRANKCASE
27
CYLINDRICAL PIN CYLINDER HEAD TO CYLINDER CRANKCASE
28
GROOVED PIN CYLINDER HEAD TO CYLINDER CRANKCASE
29
CYLINDRICAL PIN
29
CYLINDER PIN. CYLINDRICAL PIN , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
29
CYLINDRICAL PIN ,A 057455, 341.023,027,032,034,036,038,041,042,043,044,045 FROM IDENT NO. A 057456 SEE SPARE PARTS LIST 713.0, MF 859A 077314, 341.116 FROM IDENT NO. A 077315 SEE SPARE PARTS LIST 713.0, MF 859
30
BEARING CAP
32
CYLINDRICAL PIN , Replaced By: N000007008108
32
CYLINDER PIN. CYLINDRICAL PIN
34
CYLINDRICAL PIN
36
BEARING CAP
38
SCREW
40
GUIDE TUBE
42
SPACER TUBE GUIDE TUBE TO CYLINDER CRANKCASE
44
VALVE ,4 263013
46
SPRING ,4 263013
48
CAMSHAFT BEARINGNO. 1
50
CAMSHAFT BEARINGNO. 2, NO. 3, NO. 5, NO. 6
52
CAMSHAFT BEARINGNO. 4
54
CAMSHAFT BEARINGNO. 7
56
SEAL RING TEMPERATURE GAUGE SENDER UNIT
58
FITTING FRONT SIDE
59
FITTING OIL PRESSURE GAUGE CONNECTION
71
ENGINE PLATE , 001929
72
RIVET ENGINE PLATE TO ENGINE
72
RIVET , Replaced By: A0039909597
73
SUSPENSION EYE
85
TIMING CASE
85
TIMING CASE
87
SCREW PLUG STABILIZER
89
CYLINDER PIN. CYLINDRICAL PIN , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
91
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
93
SCREW FITTING
95
GASKET TIMING CASE TO CYLINDER CRANKCASE
95
GASKET , Replaced By: A3600150480
95
GASKET , Replaced By: A3600150480
97
SCREW PROPELLER SHAFT TO COUPLING FLANGE
100
COVER
103
SEAL RING
103
SEAL RING , Replaced By: A0119975647
103
SEAL RING
105
POINTER
105
POINTER
107
GASKET TIMING CASE COVER TO TIMING CASE
107
GASKET , Replaced By: A3600150120
109
SCREW
111
SCREW
153
CLAMP BREATHER PIPE TO OIL PAN
154
BRACKET BREATHER PIPE TO OIL PAN
155
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
155
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
155
SCREW , Replaced By: N304017008016
156
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
156
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
157
NUT
157
NUT BALL PIVOT TO LEVER
250
GASKET KIT CYLINDER CRANKCASE, FOR BREAK-DOWN OF OF GASKET KIT, SEE END OF GROUP 01
250
GASKET KIT , Replaced By: A3600105508
999
FILLER CAP , Replaced By: A0000101485
999
FILLER CAP
999
GASKET OIL FILTER BOWL WITH FULL-FLOW FILTER TO OIL FILTER HEAD
999
GASKETTO 366 180 09 10
999
GASKET FILTER HOUSING TO FILTER HEAD
999
BRACKET
999
SEAL RING FUEL FILTER COVER
999
SEAL RING ,D 031246
999
SEAL RING INJECTION TIMING DEVICE
999
SEAL RING CRANKSHAFT SEALING,REAR
999
SEAL RING OIL FILLER PIPE
999
SEAL RING
999
FLANGE GASKET COVER TO TIMING CASE
999
SEAL RING , Replaced By: A0000180180
999
SEAL RING ANGLE DRIVE
999
INSTRUCTION PLATE AT CYLINDER HEAD COVER,028243
999
SEAL HOLDER
999
GASKET KIT , Replaced By: A3600103320
999
COVER , UP TO ENGINE 002293 EXCEPT FOR, SEE FOOTNOTE 020
999
COVER , Replaced By: A3270150501, +001A3270150131, +001A0119975647
999
GUIDE TUBE
999
ENGINE , SEE ENGINE SPARE PARTS LIST OM 360.935, Replaced By: A3600107803
999
ENGINE , SEE ENGINE SPARE PARTS LIST OM 360.935, Replaced By: A3600107803
999
GASKET , Replaced By: A3600150120
999
GASKET , Replaced By: A3600150122
999
GASKET , Replaced By: A3600150380
999
CYLINDER HEAD COVER , 006675, Replaced By: A3600160005, +001A3520100168
999
CYLINDER HEAD GASKET , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3600160320
999
GASKET , Replaced By: A3600180280
999
GASKET , Replaced By: A3600350080
999
GASKET , Replaced By: A3550750080
999
SEAL FUEL LEAK LINE
999
GASKET , Replaced By: A3601410480
999
GASKET , Replaced By: A3661840080
999
GASKET , Replaced By: A3601860080
999
GASKET , Replaced By: A3602030080
999
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A3880170160
999
SEAL RING NOZZLE HOLDER TO CYLINDER HEAD 1.5 MM
999
SEAL RING , Replaced By: A0169978248
999
CAP , Replaced By: A0000180702
999
GASKETTO 352 010 01 68
999
GASKET , Replaced By: A3522032480
999
GASKET , Replaced By: A3522032080
999
GASKET , Replaced By: A3522032280
999
GASKET COVER TO THERMOSTAT HOUSING,078816
999
GASKET COVER TO THERMOSTAT HOUSING, NOT USED
999
GASKET , Replaced By: A3522032680
999
GASKET DE-AERATION LINE TO HEATING LINE
999
SEAL RING DELIVERY LINES
999
GASKET
999
GASKET INJECTION PUMP DRIVE TO TIMING CASE
999
GASKET OUTLET TO ENGINE
999
GASKET , Replaced By: A3600140322
999
GASKET OIL PAN TO CYLINDER CRANKCASE
999
GASKET , Replaced By: A3600150222
999
GASKET PUSH ROD CHAMBER COVER TO CYLINDER CRANKCASE
999
GASKET , Replaced By: A3600150480
999
GASKET COVER TO CYLINDER CRANKCASE
999
GASKET , Replaced By: A3600150480
999
GASKET , Replaced By: A3600160221
999
GASKET CYLINDER HEAD COVER TO CYLINDER HEAD
999
CYLINDER HEAD GASKET , Replaced By: A3600160520
999
CYLINDER HEAD GASKET
999
GASKET CYLINDER SIDE COVER TO CYLINDER CRANKCASE
999
GASKET
999
GASKET , Replaced By: A3550770080
999
GASKET INTAKE MANIFOLD
999
GASKET , 001590
999
GASKET EXHAUST MANIFOLD TO CYLINDER HEAD
999
GASKET SUCTION PIPE TO OIL PUMP HOUSING
999
GASKET , Replaced By: A3602010380
999
GASKET WATER PUMP TO CYLINDER CRANKCASE
999
GASKET UPPER COOLING WATER LINE TO CYLINDER HEAD
999
SEAL RING OIL COOLER CONNECTION
999
GASKET COVER TO TIMING CASE, Replaced By: A0259976947
999
GASKET , Replaced By: A3661840180
999
GASKET OIL FILTER TO CYLINDER CRANKCASE
999
GASKET , Replaced By: A3661310080
999
SEAL RINGBOSCH
999
SEAL RING SCREW PLUG
999
SEAL RING BRACKET TO CYLINDER HEAD
999
SEAL RING , Replaced By: N007603010110
999
SEAL RING
999
SEAL RING PNEUMATIC VALVE
999
SEAL RING LINE CONNECTION
999
SEAL RING , Replaced By: N007603012111
999
SEAL RING FROM FUEL TANK TO FUEL TANK
999
SEAL RING FUEL LINE TO FEED PUMP
999
SEAL RING VALVE TO VALVE,K 025179
999
SEAL RING , 001778
999
SEAL RING LINE CONNECTION
999
SEAL RING AIR RESERVOIR,CONNECTIONS: "24,34"
999
SEALING RING. SEAL RING OIL DRAIN
999
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
999
SEAL RING OIL LINE TO OIL COOLER
999
SEAL RING
999
GASKET HEATING PIPE TO ENGINE
999
GASKET , Replaced By: N917003040006
999
GASKET. SEAL , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3559970149
