Поз.
Артикул
Описание

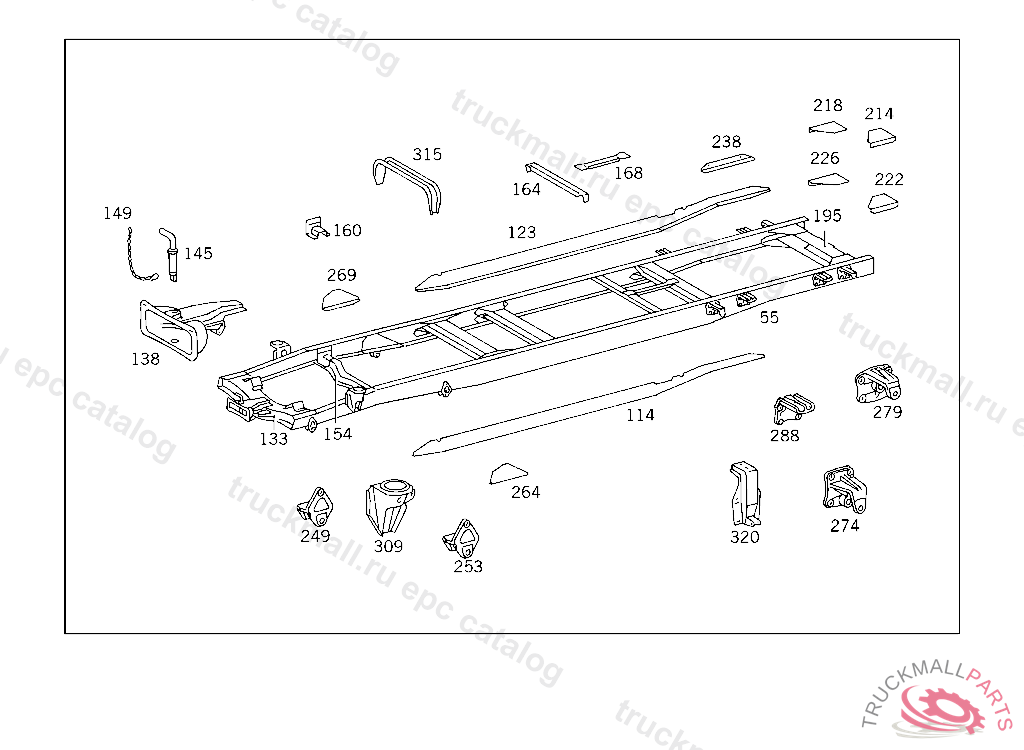

133
ENGINE CROSS MEMBER FRONT, UP TO CHASSIS 010021 ALSO INSTALLED ON 010040-010043,010097,010494
133
ENGINE CROSS MEMBER FRONT, FROM CHASSIS 010022 EXCEPT FOR 010040-010043,010097,010494
138
ENGINE CROSS MEMBER , Replaced By: A3283100326
138
BRACKET
145
COUPLING PIN
149
FASTENER TO SECURE PIN
154
ENGINE CROSS MEMBER REAR, 015537
160
STAY LEFT AND RIGHT
195
CROSS MEMBER RAIL AND PLATE TO SPRING, 002,007,008 ON SPECIAL REQUEST, FRAME EXTENSION FOR THE GERMAN FEDERAL POST
249
FRONT SPRING BRACKET FRONT
253
FRONT SPRING BRACKET REAR
264
ANGLE LEFT SIDE MEMBER
269
ANGLE RIGHT SIDE MEMBER
274
REAR SPRING BRACKET REAR, 034 UP TO CHASSIS A 006891, 042 UP TO CHASSIS A 006845
279
REAR SPRING BRACKET REAR
288
HELPER SPRING BRACKET HELPER SPRING
309
BODY SUPPORT , Replaced By: A3283100367
315
SUPPORT , Replaced By: A3523101767, +002A3523171201
315
BODY SUPPORT CAB
315
BODY SUPPORT CAB
320
BODY SUPPORT , Replaced By: A3523101667
320
BODY SUPPORT
999
LOCK WASHER FITTING TO BRACKET
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
RIVET12X58 MM, TO BE ADAPTED DURING ASSEMBLY
999
RIVET REAR CROSS MEMBER 12X42 MM
999
RIVET12X28 MM, TO BE ADAPTED DURING ASSEMBLY
999
RIVET12X26 MM, TO BE ADAPTED DURING ASSEMBLY
999
RIVET BEARING BRACKET TO SIDE MEMBER, TO BE ADAPTED DURING ASSEMBLY
999
RIVET REAR CROSS MEMBER 10X38 MM
999
RIVET10X32 MM, TO BE ADAPTED DURING ASSEMBLY
999
RIVET CROSS MEMBER TO SIDE MEMBERS 10X30 MM, TO BE ADAPTED DURING ASSEMBLY
999
RIVET REINFORCEMENT TO SIDE MEMBER
999
RIVET GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS 10X26 MM
999
RIVET10X24 MM, TO BE ADAPTED DURING ASSEMBLY
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
999
NUT
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW , Replaced By: N000961012051
999
SCREW BRACKET TO LEFT SIDE MEMBER
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
999
SCREW , Replaced By: N308676012026
999
SCREW BEARING BRACKET TO FRAME
999
NUT BRACKET TO SIDE MEMBER
999
NUT STRAP TO SUPPORT
999
NUT STRAP TO SUPPORT,5 149419
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW REAR EXHAUST PIPE TO MUFFLER
999
SCREW , Replaced By: N304017010002
999
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREWTO 000 431 94 14,000 431 96 14
999
SCREW CONSOLES TO SIDE MEMBER M 10X25
999
WASHER
999
WASHER RADIATOR TO RUBBER MOUNTING
999
WASHER , Replaced By: N000125010532
999
COTTER PINROCKINGER TYP 260 G140
999
CONSOLE CAB
999
SCREW , Replaced By: A3219901601
999
HELPER SPRING BRACKET HELPER SPRING, ON SPECIAL REQUEST, RUBBER-CUSHIONED HELPER SPRING BRACKETS
999
RUBBER SPRING SPRING STOP TO FRAME BOTTOM SIDE, ON SPECIAL REQUEST, REAR SPRINGS
999
GUSSET PLATE TOP RIGHT, ON SPECIAL REQUEST, LOW-MOUNTED TRAILER COUPLING FOR THE GERMAN FEDERAL POST
999
GUSSET PLATE TOP LEFT, BOTTOM RIGHT
999
TRUSS RIGHT
999
TRUSS LEFT
999
FRAME , FROM CHASSIS 010022 EXCEPT FOR 010040-010043,010097,010494
999
FRAME , UP TO CHASSIS 010021, ALSO INSTALLED ON 010040-010043,010097,010494, TOGETHER WITH, SEE FOOTNOTE 002, Replaced By: A3283108901
999
BODY SUPPORT , Replaced By: A3413107267
999
CONSOLE REAR
999
SCREW CONSOLES TO SIDE MEMBER
999
PLATE REAR SPRING
999
SHIM CONSOLES TO SIDE MEMBER
999
BODY SUPPORT , Replaced By: A3283100467
999
SCREWM 14X14X22X40
999
SCREW , Replaced By: A3169900014
999
WASHER
999
WASHER
999
CONSOLE RUBBER BUFFER, ON SPECIAL REQUEST, RUBBER-CUSHIONED HELPER SPRING BRACKETS
999
STAY RIGHT, 015536
999
STAY LEFT, 015536
999
MOUNTING PLATE CROSS MEMBER TO SIDE MEMBERS
999
ENGINE CROSS MEMBER REAR, 015536
999
CROSS MEMBER REAR SHOCK ABSORBERS, ON SPECIAL REQUEST, TELESCOPIC SHOCK ABSORBER
999
SLEEVE
999
DOWEL PIN
999
RIVET , Replaced By: N910005010027
999
RIVET TO CONNECT THE FRAME PARTS 10X34 MM
999
RIVET , Replaced By: N910005010006
999
RIVET , Replaced By: N910005010005
999
RIVET , Replaced By: N910005010004
999
RIVET , Replaced By: N910005010003
999
RIVET , Replaced By: N910005010002
999
RIVET , Replaced By: N910005010001
999
RIVET , Replaced By: N910005012020
999
RIVET , Replaced By: N910005012001
999
RIVET , Replaced By: N910005012012
999
TRAILER COUPLING , Replaced By: A0013150299
999
BUSHING TOP
999
COUPLING PINROCKINGER,TYP 59 U150
999
BUSHING BOTTOM ROCKINGER,TYP 59 U150
999
COUPLING MOUTH
999
FOLLOWER
