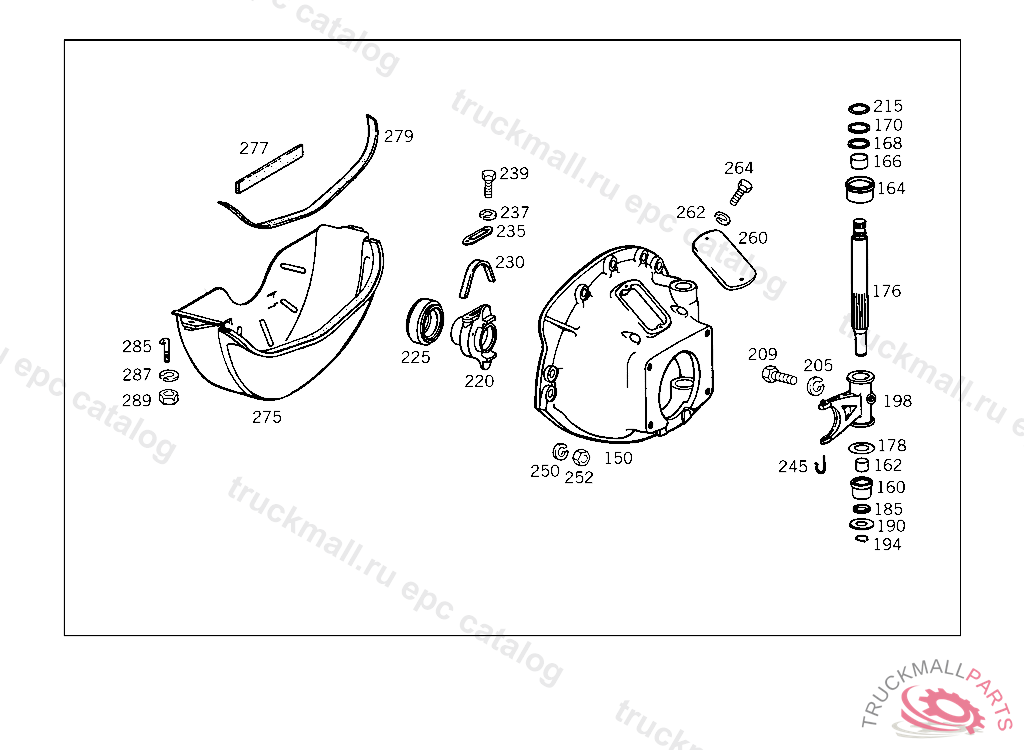

Поз.
Артикул
Описание
150
160
BUSHING RELEASE SHAFT,BOTTOM
162
BUSHING RELEASE SHAFT,BOTTOM 24X27 MM
164
BUSHING TOP
166
BUSHING TOP
168
FELT RING
170
COVER PLATE
176
SHAFT (PARTS KIT),RELEASE SHAFT, DELIVER ADDITIONALLY:AS REQUIRED 1X 317 293 01 77-06 77
176
REPAIR KIT , DELIVER ADDITIONALLY:AS REQUIRED 1X 317 293 01 77-06 77, Replaced By: A3632500114
178
WASHER AS REQUIRED 1.3 MM
178
WASHER AS REQUIRED 1.10 MM
178
WASHER AS REQUIRED 1.00 MM
178
WASHER AS REQUIRED 1.20 MM
178
WASHER AS REQUIRED 0.90 MM
178
WASHER AS REQUIRED 0.80 MM
185
FELT RING
190
SPACER WASHER RELEASE SHAFT,BOTTOM
194
LOCK RING RELEASE SHAFT,BOTTOM
198
RELEASE LEVER CLUTCH ACTUATION
198
RELEASE LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 758189, Replaced By: A6202540108
205
LOCK WASHER FITTING TO BRACKET
209
SCREW BRACKET TO TRANSMISSION
215
220
225
230
STRIP RELEASE COLLAR LUBRICATION
235
COVER RELEASE BEARING
237
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
239
SCREW EXHAUST BRAKE SEPARATION POINT
245
SPRING RELEASE BEARING TO RELEASE LEVER
250
LOCK WASHERROCKINGER TYP 59 G140,59 G150
252
NUT SPARE WHEEL CARRIER TO SIDE MEMBER
252
NUT , Replaced By: N308673016001
260
END COVER , Replaced By: A3602510004
260
END COVER TOP,4 696330
262
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
264
SCREW COVER PLATE TO COVER PLATE M 6 X 12
264
SCREW , Replaced By: N304017006018
275
277
279
285
287
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
289
NUT BRACKET TO SUPPORT AND TO END PIECE
999
999
RIVET , Replaced By: A0002521175
999
999
999
999
RIVET , Replaced By: A0002524075
999
999
HOUSING
999
LEAF SPRING , REBORE HOLE IN SUPPORTING PLATE FROM 5.2MM TO 6.2MM, Replaced By: A0002524419, +002A0002523975
999
RIVET
999
LEAF SPRING
999
NEEDLE BEARING CLUTCH RELEASE SHAFT
999
999
SNAP RING
999
LOCK , Replaced By: A0009940640
999
999
RELEASE YOKE
999
WASHER CLUTCH RELEASE SHAFT
999
SEAL RING RELEASE SHAFT,TOP
999
999
999
999
999
999
999
999
RELEASE SHAFT
999
NEEDLE BEARING ON DRIVE END
999
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
999
LOCK RING22X1.2,TO 001 431 71 14
999
LOCK RING
999
SCREW RADIATOR M 10X45
999
FITTED WASHER CLUTCH RELEASE SHAFT
999
SEAL RING CLUTCH RELEASE SHAFT
999
LOCK PLATE RELEASE LEVER TO SHAFT
999
KEY
