Поз.
Артикул
Описание

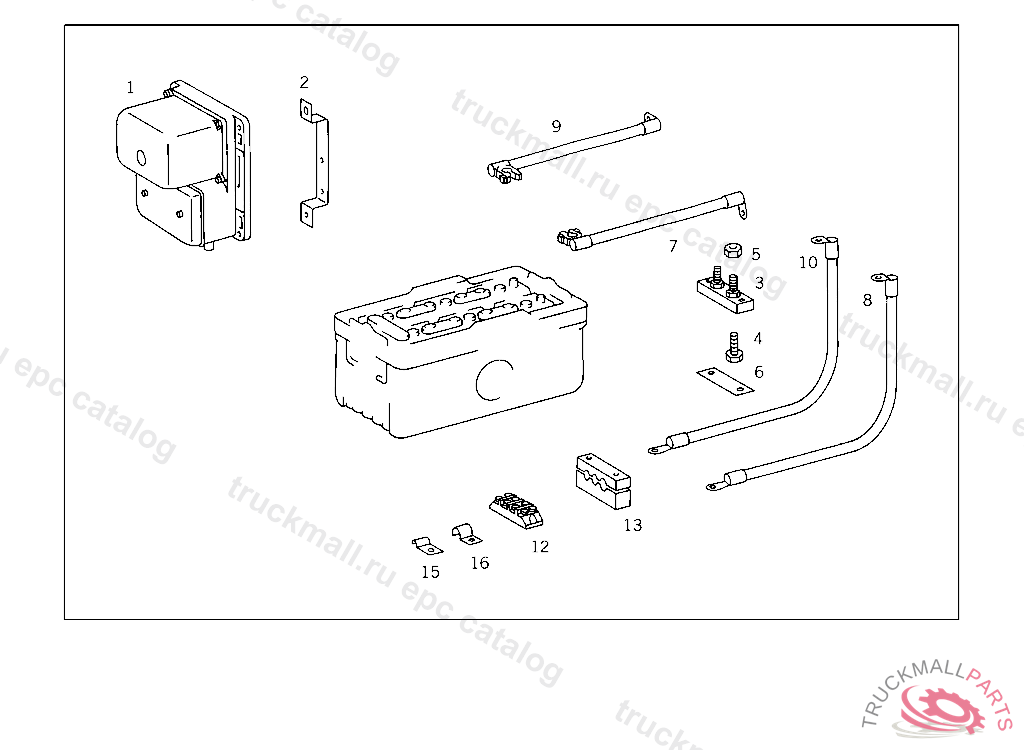

1
REGULATOR AND CUT-OUT USED FOR 1000 W/12 V,D.C.GENERATOR
2
BRACKET REGULATOR AND CUT-OUT
3
CABLE CONNECTOR BIPOLAR
3
CABLE CONNECTOR , Replaced By: A3045460141, +002N000084010114, +002N000439010210
4
SCREW BATTERY CABLE MOUNTING,5 193595
5
NUT
5
NUT , Replaced By: N304035010001
6
CAP CABLE CONNECTOR
7
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
7
ELECTRIC CABLE , Replaced By: A6735460013
7
ELECTRIC CABLE , Replaced By: N922002070000
7
POSITIVE CABLE , Replaced By: N072551070880, +001N046234010007, +001N072332013100
7
POSITIVE CABLE. POS.CABLE , Replaced By: N072551070880, +001N046234010007, +001N072332013100
8
NEG. CABLE , Replaced By: N072551070880, +002N046234010007
9
NEG. CABLE , Replaced By: N072551070880, +001N046234010007, +001N072332013800
10
NEG. CABLE , Replaced By: N072551070880, +002N046234010007
12
CABLE CONNECTOR 4-POLE
13
CLAMPING PIECE 3-POLE
15
CLAMP
16
CLAMP FEED LINE TO THERMOSTAT
16
CLAMP
999
WASHER CABLE CONNECTOR
999
REINFORCEMENT
999
POS.CABLE , Replaced By: A3355401230
999
POS.CABLE , Replaced By: N072551070880, +002N046234010007
999
POS.CABLE. POSITIVE CABLE , Replaced By: A3525400530
999
ELECTRIC CABLE FROM ALTERNATOR TO REGULATOR
999
SCREW PROTECTION PLATE TO BRACKET
999
SCREW
999
SCREW BATTERY CABLE
999
SCREW , Replaced By: N304017008027
999
NUT BALL PIVOT TO LEVER
999
SCREW , Replaced By: N007985006580
999
SCREW APPARATUS PLATE TO CAB,K 062140
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
CABLE SHOE BATTERY CABLE 10-70 MM
999
SOLDERING TERMINAL BATTERY POS. POLE 70 MM2
999
SOLDERING TERMINAL BATTERY NEG. POLE 70 MM2
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
NUT
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
