Поз.
Артикул
Описание

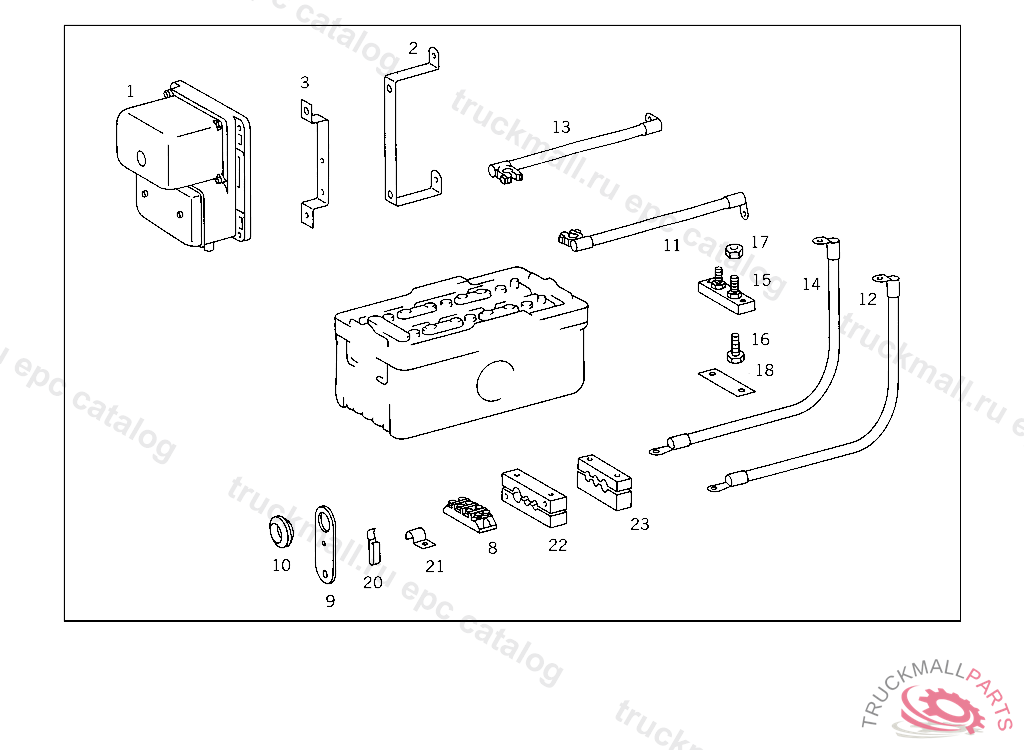

1
REGULATOR AND CUT-OUT
1
REGULATOR AND CUT-OUT , Replaced By: A0011547806
2
BRACKET REGULATOR AND CUT-OUT
3
BRACKET REGULATOR AND CUT-OUT
8
CABLE CONNECTOR 4-POLE
9
BRACKET BRACKET TO SIDE MEMBER
10
GROMMET SHIFT PATTERN,W/REAR AXLE 48:7,8.25-20 TIRES, MEASURG.RANGE,90KM/H,OR 60MPH
11
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
12
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
13
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
14
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
15
CABLE CONNECTOR BIPOLAR
16
SCREW BATTERY CABLE MOUNTING,5 193595
17
NUT , Replaced By: N304035010001
17
NUT
18
CAP CABLE CONNECTOR
20
CLAMP
21
CLAMP FEED LINE TO THERMOSTAT
22
CLAMPING PIECE 3-POLE
23
CLAMPING PIECE 3-POLE
999
ELECTRIC CABLE , Replaced By: A6735460013
999
RIVETED NUT REFRIGERANT LINE TO CAB REAR PANEL
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
NUT
999
NUT IN CASE OF SUBSEQUENT INSTALLATION
999
NUT , Replaced By: N304032005005
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
SOLDERING TERMINAL BATTERY NEG. POLE 70 MM2
999
SOLDERING TERMINAL BATTERY POS. POLE 70 MM2
999
CABLE SHOE BATTERY CABLE 10-70 MM
999
WASHER BRACKET TO COVERING
999
WASHER , Replaced By: N009021010209
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER , Replaced By: N009021006208
999
NUT , Replaced By: N304032010002
999
NUT
999
NUT BALL PIVOT TO LEVER
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW , Replaced By: N304017008027
999
SCREW LOOM TIE
999
SCREW FLOOR TO FRAME M 6X16
999
SCREW FOLLOWER TO SHIFTING ROD
999
SCREW BATTERY CABLE
999
LOCK WASHER
999
WASHER
999
SCREW BRACKET TO CAB CROSS MEMBER
999
SCREW FUEL GAUGE SENDER UNIT TO FUEL TANK, ON MOTOR 352-358 UP TO IDENT NO. 4 292267,ON MOTOR 360 UP TO IDENT NO. 4 675310
999
POSITIVE CABLE , Replaced By: N072551070880, +001N046234010007, +001N072332013100
999
POSITIVE CABLE. POS.CABLE , Replaced By: N072551070880, +001N046234010007, +001N072332013100
999
ELECTRIC CABLE INSTRUMENT PANEL CROSS MEMBER
999
ELECTRIC CABLE INSTRUMENT PANEL CROSS MEMBER
999
POS.CABLE. POSITIVE CABLE , Replaced By: A3525400530
999
POS.CABLE , FROM CHASSIS 000847 ALSO INSTALLED ON:000829,000842,000843, Replaced By: N072551070880, +001N046234010007, +001N072332013100
999
NEG. CABLE , Replaced By: N072551070880, +001N046234010007, +001N072332013200
999
NEG. CABLE , Replaced By: N072551070880, +002N046234010007
999
NEG. CABLE , Replaced By: N072551070880, +001N046234010007, +001N072332013800
999
POS.CABLE , Replaced By: N072551070880, +002N046234010007
999
POS.CABLE , Replaced By: A3355401230
999
REINFORCEMENT
999
CLAMP
999
CABLE CONNECTOR , Replaced By: A3045460141, +002N000084010114, +002N000439010210
999
REGULATOR AND CUT-OUT
999
CLIP STARTING MOTOR BRANCH-OFF
999
RIVETED NUT , Replaced By: N913010006106
999
RIVETED NUT
