Поз.
Артикул
Описание

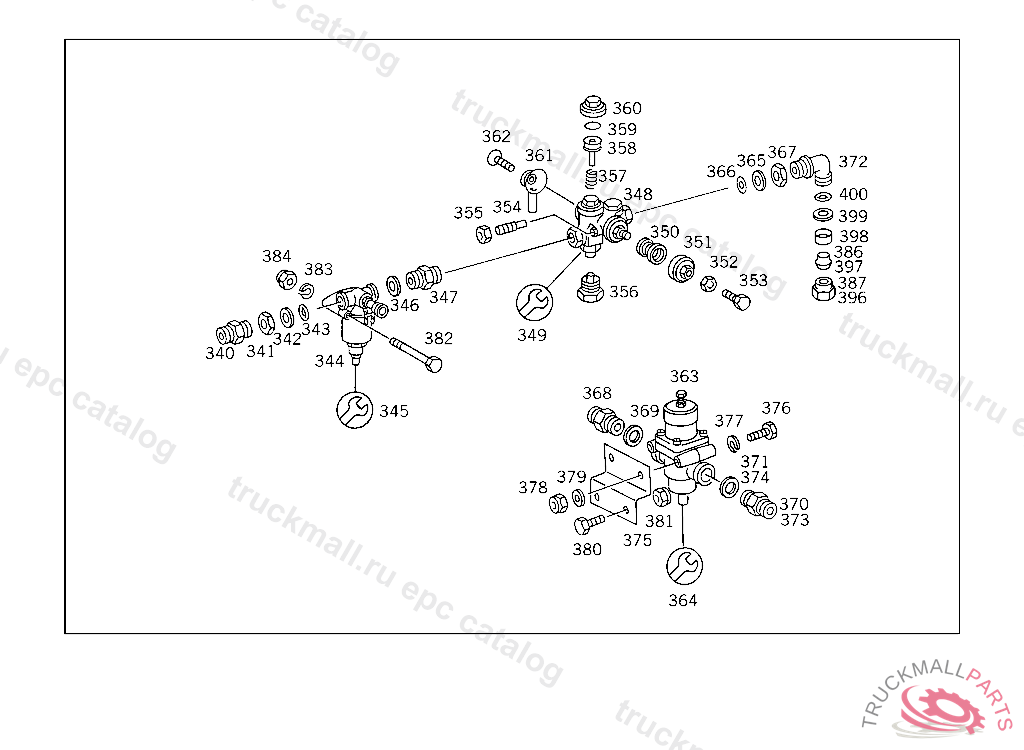

340
FITTING AIR RESERVOIR,CONNECTION: "13"
340
FITTING AIR RESERVOIR,CONNECTION: "2"
341
NUT CHECK VALVE TO AIR RESERVOIR
342
THRUST RING CHECK VALVE TO AIR RESERVOIR
342
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
343
O-RING CHECK VALVE TO AIR RESERVOIR
344
AIR CLEANER. TIRE INFLATOR CYLINDER ,511032
344
TIRE INFLATOR CYLINDER , Replaced By: A3445910019
345
REPAIR KIT
346
SEAL RING LINE CONNECTION
347
FITTING , Replaced By: A0019972372
347
FITTING SHUTTLE VALVE,CONNECTION: "20"
348
PRESSURE REGULATOR
349
REPAIR KIT ,511032
350
COMPENSATOR
351
SCREW PLUG
352
NUT LEVER TO SHIFTING SHAFT
353
SCREW LINES TO BRACKET
354
STUD
355
NUT TACHOGRAPH TO BRACKET
356
SCREW PLUG
357
SPRING
358
PISTON
359
WASHER
360
SCREW PLUG
361
BREATHER PIPE
362
SCREW ,511032
363
VALVEWABCO
364
REPAIR KIT , Replaced By: A0004201671
364
REPAIR KITTO 001 431 69 06
365
THRUST RING CHECK VALVE TO AIR RESERVOIR
365
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
366
O-RING CHECK VALVE TO AIR RESERVOIR
367
NUT CHECK VALVE TO AIR RESERVOIR
370
SCREW-IN FITTING AT PRESSURE REGULATOR
372
FITTING
372
ELBOW FITTING ANTI-FREEZE DEVICE,CONNECTION: "10", BUTT CONNECTION
375
BRACKET PRESSURE REGULATOR
375
BRACKET PRESSURE REGULATOR,376447
376
SCREW PRESSURE REGULATOR TO BRACKET M 8X75
376
SCREW VALVE BODY ASSEMBLY TO TRANSMISSION M 8X55
377
LOCK WASHER RAIL TO BATTERY SUPPORT
378
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
382
SCREW LINES TO BRACKET
383
LOCK WASHER RAIL TO BATTERY SUPPORT
384
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
396
UNION NUT BUTT SCREW CONNECTION
397
GLAND LINE CONNECTION
399
THRUST RING BUTT SCREW CONNECTION
400
SEAL RING , Replaced By: N007603012121
999
SPRING
999
PISTON
999
THRUST PIN
999
HOHLSCHRAUBE FUR. HOLLOW SCREW MASTER CYLINDER,CONNECTION "2.1",4 338292
999
HOLLOW SCREW
999
CONNECTOR
999
PROTECTIVE CAP BRAKE BOOSTER
999
WHEEL BRAKE CYLINDER
999
CABLE PULLEYTO 044 420 01 18
999
PROTECTIVE CAP
999
DISTRIBUTOR , Replaced By: A3454287024
999
CONNECTOR BRAKE LINE TO BRAKE MASTER CYLINDER, ONLY ON INSTALLATION OF DIAPHRAGM CYLINDER OF MAKE "WESTINGHOUSE"
999
HOLLOW SCREW AT BRAKE MASTER CYLINDER
999
VALVE , Replaced By: A3454307081
999
FILLER CAP
999
STRAINER , Replaced By: A3084317034
999
WASHER , Replaced By: A3454317076
999
RESERVOIR WITH LOCKING CAP
999
CUP , Replaced By: A3454317186
999
SPRINGTO 044 430 02 01,A 030543 BM 341.038 USED WITH HYDRAULIC BRAKE,BM 341,041,042,044 UP TO IDENT NO. A 059728 EXCEPT FOR A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
999
PISTON , Replaced By: A3454317083
999
SPRING , Replaced By: A3454317093
999
PISTON , Replaced By: A3454317183
999
SPRING , Replaced By: A3454317293
999
REPAIR KITTO 001 420 85 18,344 420 71 18
999
REPAIR KITTO 001 420 92 18, NOT USED
999
SNAP RING
999
SNAP RINGTO 001 420 92 18, 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7 NOT USED
999
SEAL RING
999
BRAKE SHOE , Replaced By: A3444207520
999
ELECTRIC CABLE , Replaced By: A3445401361
999
STRAINER
999
FITTING
999
INSPECTION HOLE COVER
999
RIVET
999
BRACKET , NO LONGER AVAILABLE
999
BRAKE SHOE WITH LINING "FRAS-LE"
999
BRAKE SHOE WITH LINING "LONAFLEX"
999
BRAKE SHOE REPAIR SIZE I "LONAFLEX"
999
BRAKE SHOE REPAIR SIZE II "LONAFLEX"
999
BRAKE SHOE WITH LINING "JURID"
999
BRAKE SHOE REPAIR SIZE I "JURID"
999
BRAKE SHOE REPAIR SIZE II "JURID"
999
BRAKE LINING
999
BRAKE LINING REPAIR SIZE I 11.3 MM,"JURID"
999
BRAKE LINING REPAIR SIZE II 12.3 MM,"JURID"
999
BRAKE LINING STANDARD 10.4 MM,"FRAS-LE"
999
BRAKE LINING REPAIR SIZE I 11.3 MM,"FRAS-LE"
999
BRAKE LINING REPAIR SIZE II 12.3 MM,"FRAS-LE"
999
BRAKE LINING STANDARD 10.4 MM,"LONAFLEX"
999
BRAKE LINING REPAIR SIZE I 11.3 MM,"LONAFLEX"
999
BRAKE LINING REPAIR SIZE II 12.3 MM,"LONAFLEX"
999
BRAKE MASTER CYLINDERTEVES, NOT USED
999
DISTRIBUTOR BRAKE MASTER CYLINDER TO 344 430 78 01, 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
HOLLOW SCREW DISTRIBUTOR TO MASTER CYLINDER
999
DISTRIBUTOR MASTER CYLINDER TO BRAKE VALVE,548520, 031,032,033,034
999
VALVETO 044 430 02 01,A 030543 BM 341.038 USED WITH HYDRAULIC BRAKE,BM 341,041,042,044 UP TO IDENT NO. A 059728 EXCEPT FOR A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
999
WASHERTO 002 430 71 01
999
PISTONTO 002 430 71 01
999
SPRINGTO 044 430 02 01,A 030543 BM 341.038 USED WITH HYDRAULIC BRAKE,BM 341,041,042,044 UP TO IDENT NO. A 059728 EXCEPT FOR A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
999
PISTONTO 002 430 71 01
999
CUPTO 002 430 71 01
999
SPRING
999
SPRING
999
PARKING BRAKE
999
BRAKE LINING , Replaced By: A3444210010
999
BRAKE LINING , Replaced By: A3444210110
999
BRAKE LINING , Replaced By: A3444210210
999
INTERMEDIATE PIECE , Replaced By: A3445401561
999
SPRING , Replaced By: A3454317193
999
SPRING
999
SPRING , Replaced By: H983454310793
999
GLAND , Replaced By: A0019901667
999
GLAND , Replaced By: A0019901167
999
SEAL RING BOTTOM
999
UNION NUT
999
UNION NUT
999
UNION NUT LINE MOUNTING
