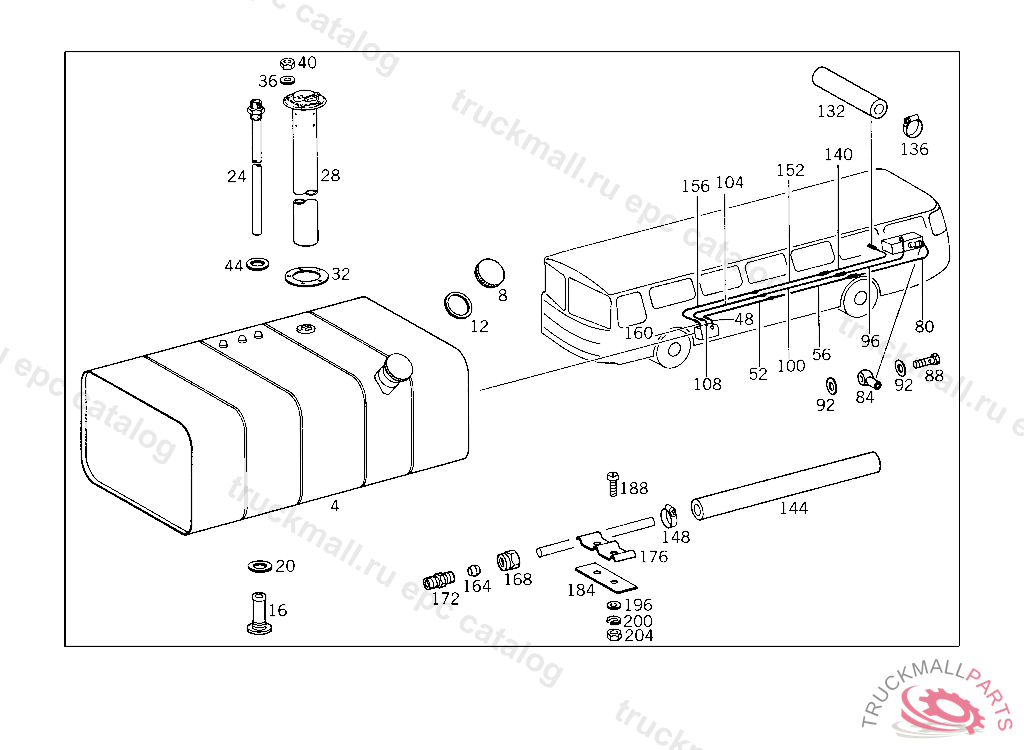

Поз.
Артикул
Описание
4
FUEL TANK LESS SENDER UNIT 300 L
8
FILLER CAP
12
SEAL RING
16
FUEL STRAINER
16
FUEL STRAINER , Replaced By: A3504700006
16
FUEL STRAINER AT TANK
20
SEAL RING FUEL STRAINER SCREEN
24
RISING PIPE , Replaced By: A3444700126
28
SENDER UNIT , Replaced By: A3455427617
28
SENDER UNIT , Replaced By: A3455427917
28
SENDER UNIT , Replaced By: A3505427017
28
SENDER UNIT
32
GASKET FUEL GAUGE SENDER UNIT TO FUEL TANK
36
SEAL RING SENDER UNIT AND COVER TO FUEL TANK
40
NUT TACHOGRAPH TO BRACKET
44
SEAL RING AT TANK
48
LINE , Replaced By: A3444703964
48
LINE FROM FUEL TANK TO CONNECTOR I
52
LINE FROM CONNECTOR I TO CONNECTOR II
52
LINE , Replaced By: A3444704064
56
56
80
80
84
BANJO UNION FUEL LINE TO FUEL TANK
84
CONNECTOR FROM HOSE TO FEED PUMP, 344.058 UP TO SHASSIS 659793
88
HOLLOW SCREW
92
SEALING RING. SEAL RING ENGINE BREATHING
96
96
100
100
104
LINE FROM CONNECTOR I TO CONNECTOR II
104
LINE , Replaced By: A3444704164
108
LINE , Replaced By: A3444703964
108
LINE FROM FUEL TANK TO CONNECTOR I
132
HOSE , ORDER BY THE METER
132
HOSE , Replaced By: A3440780081
132
HOSE , Replaced By: A3769978182
136
CLAMP LINE MOUNTING
140
140
144
HOSE
148
148
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
148
LOOM TIE , Replaced By: N916017011000
148
148
CLAMP , Replaced By: N916017011001
152
152
156
LINE FROM CONNECTOR I TO CONNECTOR II
156
LINE , Replaced By: A3444704264
160
LINE , Replaced By: A3444703964
160
LINE FROM FUEL TANK TO CONNECTOR I
164
SEAL CONE , 344.058 UP TO SHASSIS 659793
164
BALL-TYPE NIPPLE. SEAL CONE , Replaced By: A3449907067
168
NUT. UNION NUT RETURN
172
FITTING
172
FITTING OIL LINES
176
CLAMP LINE MOUNTING
184
BRACKET FUEL LINES
188
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
196
WASHER PLUG SOCKET TO BRACKET
200
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
204
NUT
999
FITTING
999
RISING PIPE , 344.058 UP TO SHASSIS 659793
999
SHEET METAL SCREW BRACKET TO CAB 4,2X13
999
SCREW CAP TO BRACKET
