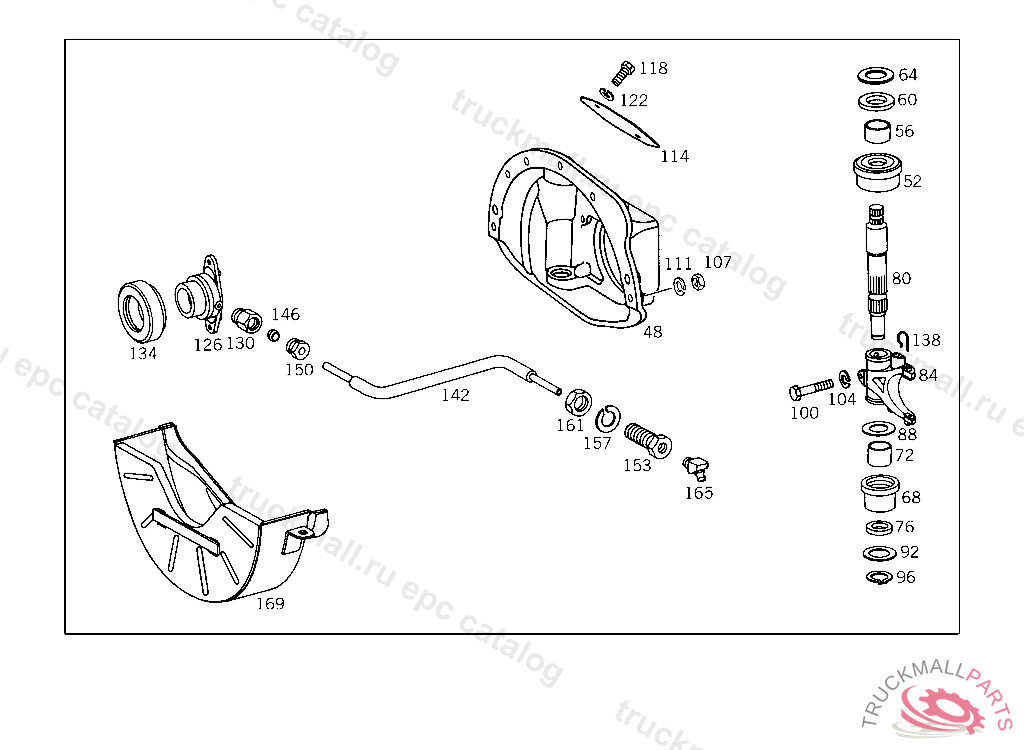

Поз.
Артикул
Описание
48
52
BUSHING
56
BUSHING TOP
60
FELT RING
64
COVER PLATE
68
BUSHING BOTTOM
72
BUSHING RELEASE SHAFT,BOTTOM 24X27 MM
76
FELT RING
80
RELEASE SHAFT
84
RELEASE YOKE
84
RELEASE LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 758189, Replaced By: A6202540108
84
RELEASE YOKE , Replaced By: A3452930111
88
WASHER AS REQUIRED 1.20 MM
88
WASHER AS REQUIRED 1.3 MM
88
WASHER AS REQUIRED 0.80 MM
88
WASHER AS REQUIRED 0.90 MM
88
WASHER AS REQUIRED 1.10 MM
88
WASHER AS REQUIRED 1.00 MM
92
SPACER WASHER RELEASE SHAFT,BOTTOM
96
LOCK RING RELEASE SHAFT,BOTTOM
100
SCREW , Replaced By: N304017012002
104
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
107
NUT FRONT SPRINGS TO FRONT AXLE
111
LOCK WASHERROCKINGER TYP 59 G140,59 G150
114
END COVER TOP,4 696330
118
SCREWM 6X12
122
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
126
130
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
134
RELEASE BEARING
138
SPRING LOCK RELEASE LEVER TO RELEASE BEARING, UP TO CHASSIS 4 691315, FROM CHASSIS 4 691316 SEE STANDARD VERSION
142
HOSE , Replaced By: A0005732636
146
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
150
UNION SCREW RELEASE BEARING LUBRICATION
153
SLEEVE RELEASE COLLAR LUBRICATION
157
SPRING WASHER COMPRESSOR TO MOUNTING PLATE
161
NUT , Replaced By: N308675014000
165
GREASE NIPPLE
165
GREASE NIPPLE
169
999
RIVET , Replaced By: A0002521275
999
999
999
RIVETTO 345 250 74 03,345 250 75 03
999
REPAIR KIT TO 345 250 71 03
999
LOCK WASHER , Replaced By: N912004010102
999
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
