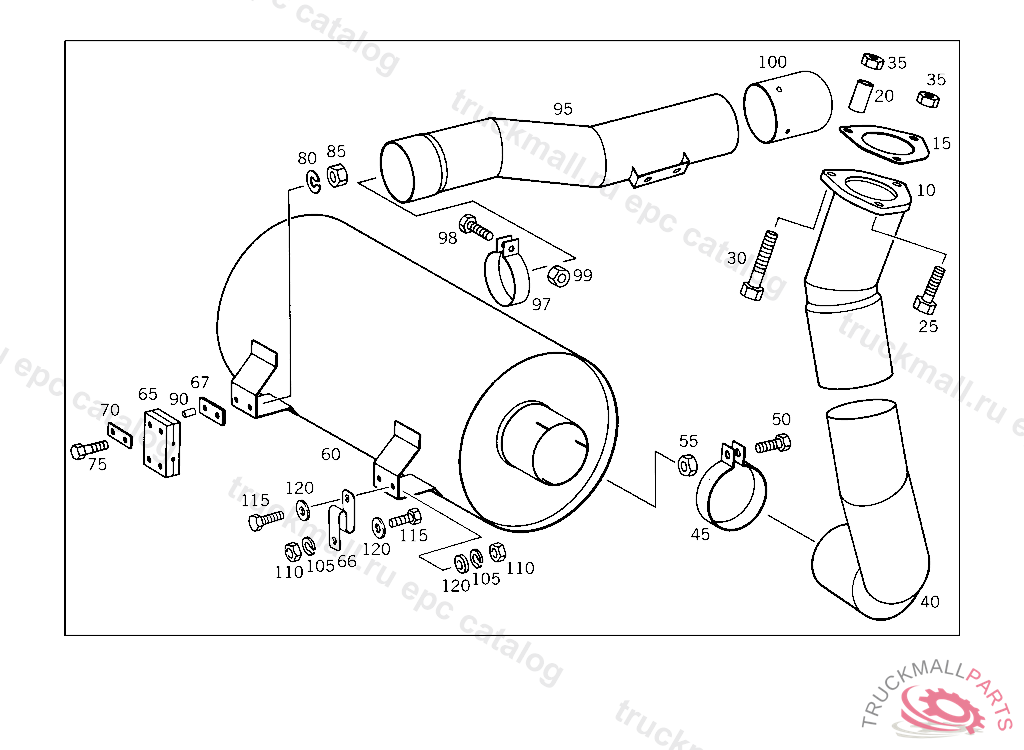

Поз.
Артикул
Описание
10
15
FLANGE GASKET FRONT EXHAUST PIPE TO EXHAUST MANIFOLD, ONLY APPLICABLE TO SUPERCHARGING SYSTEM
20
SPACER TUBE , Replaced By: A3179911040
25
SCREW FRONT EXHAUST PIPE TO EXHAUST MANIFOLD
30
SCREW HOUSING TO CYLINDER CRANKCASE, INAPPLICABLE TO SUPERCHARGING SYSTEM609835
35
NUT CONNECTOR TO EXHAUST MANIFOLD
35
NUT , Replaced By: N913004012010
40
45
CLAMP FRONT EXHAUST PIPE TO MUFFLER
50
SCREW , Replaced By: N304017010002
55
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
60
EXHAUST MUFFLER ,D 061565
60
EXHAUST MUFFLER ,D 061565
65
DAMPING PAD , Replaced By: A3054920082
65
DAMPING PAD EXHAUST MUFFLER TO SUPPORT
66
CLAMPING PIECE EXHAUST MUFFLER TO SUBSTRUCTURE
67
INSULATION EXHAUST MUFFLER TO SUPPORT
67
INSULATION EXHAUST MUFFLER TO SUBSTRUCTURE, UP TO CHASSIS 13021697
70
BASE PLATE EXHAUST MUFFLER TO SUBSTRUCTURE, UP TO CHASSIS 13021697
70
BASE PLATE EXHAUST MUFFLER TO SUPPORT
75
SCREW COVERING TO BRACKET
80
LOCK WASHER RAIL TO BATTERY SUPPORT
85
NUT
90
SPACER TUBE BRACKET
95
97
CLAMP REAR EXHAUST PIPE TO MUFFLER
98
SCREW LINES TO BRACKET
99
NUT LEVER TO SHIFTING SHAFT
100
100
END PIECE
105
LOCK WASHER RAIL TO BATTERY SUPPORT
110
NUT
115
SCREW OIL LINE TO ENGINE SUPPORT,6 900042
120
WASHER A 8,4 DIN 9021. WASHER MOUNTING TO SUBSTRUCTURE
999
WASHER , Replaced By: N009021006208
999
NUT
999
SCREW DELIVERY AND SUCTION LINES TO ENGINE, FRONT M 6X35
999
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
999
SCREW CHROMIUM JACKET TO REAR EXHAUST PIPE
