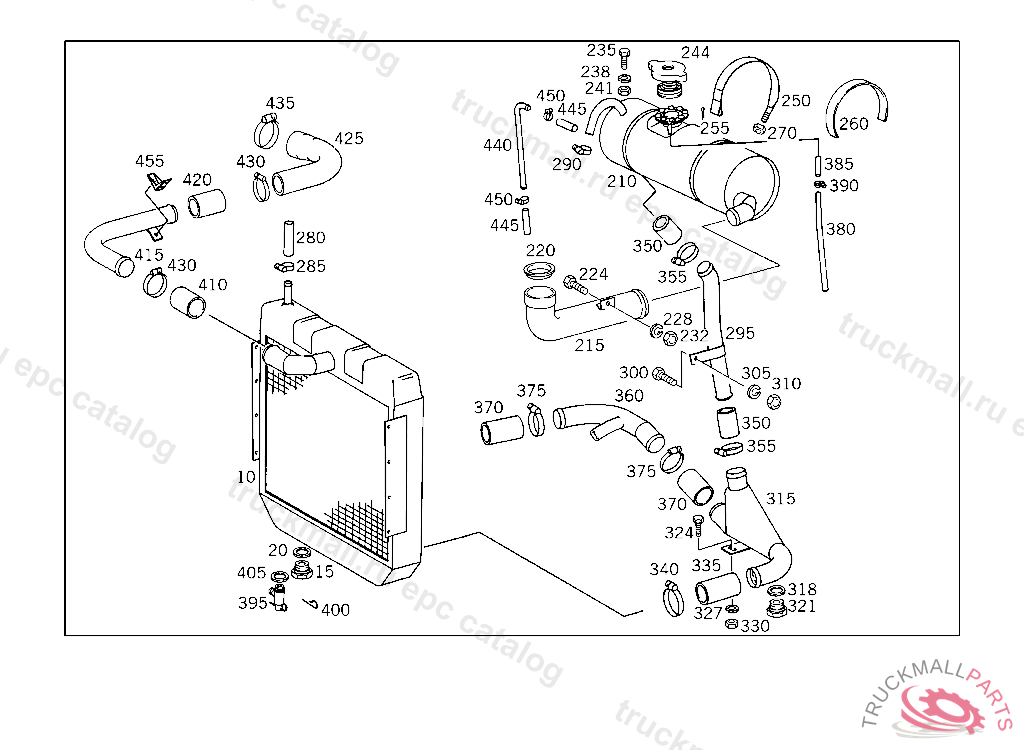

Поз.
Артикул
Описание
10
RADIATOR
10
RADIATOR
10
RADIATOR , Replaced By: A3445017201
15
SCREW PLUG
20
SEAL RING
210
TANK , Replaced By: A3455007249
215
FILLER NECK
220
SEAL RING
220
SEAL RING , Replaced By: A3445010060
224
SCREW PLUG SOCKET TO FRAME
228
LOCK WASHER RAIL TO BATTERY SUPPORT
232
NUT LEVER TO SHIFTING SHAFT
235
SCREW 3/2-WAY VALVE TO BRACKET
238
LOCK WASHER PLUG SOCKET
241
HEX. NUT M 5 DIN 934-5 S. NUT PLUG SOCKET TO FRAME
244
RADIATOR CAP
250
CLAMP
250
FLAP , Replaced By: A3445000446
255
COTTER PIN6.3X63 MM
260
RUBBER STRIP EXPANSION TANK TO SUPPORT
260
RUBBER STRIP , Replaced By: A3449870214
270
NUT LEVER TO SHIFTING SHAFT
280
HOSE FROM EXPANSION TANK TO RADIATOR
285
LOOM TIE HOSE TO HEATING PIPE
290
CLAMP HOSE TO OIL TANK AND TO SUCTION LINE
295
LINE FROM SEPARATOR TO TANK
295
LINE , Replaced By: A3445000789
295
LINE , Replaced By: A3445000789
300
SCREW PLUG SOCKET TO FRAME
305
LOCK WASHER RAIL TO BATTERY SUPPORT
310
NUT LEVER TO SHIFTING SHAFT
315
SEPARATOR
318
SEAL RING VALVE TO VALVE,K 025179
321
SCREW PLUG WATER DRAIN
324
SCREW PLUG SOCKET TO FRAME
327
LOCK WASHER RAIL TO BATTERY SUPPORT
330
NUT LEVER TO SHIFTING SHAFT
335
HOSE FROM RADIATOR TO OIL COOLER 210 MM,617872
340
LOOM TIE. CLAMP FEED, FROM ENGINE TO RETARDER
340
CLAMP HOSE FASTENING 50-70X13 MM
340
CLAMP , Replaced By: N000000000672
350
HOSE THERMOSTAT,HEATING CONNECTION 38 X 50 X 430
355
LOOM TIE HOSE TO FILLER NECK
360
LINE FROM SEPARATOR TO OIL RADIATOR
360
LINE , Replaced By: A3445000589
370
HOSE FROM RADIATOR TO OIL COOLER 210 MM,617872
375
LOOM TIE. CLAMP FEED, FROM ENGINE TO RETARDER
375
CLAMP HOSE FASTENING 50-70X13 MM
375
CLAMP , Replaced By: N000000000672
380
BREATHER PIPE
380
THREADED UNION , Replaced By: A3445010125
385
HOSE FROM RADIATOR TO WATER EXPANSION TANK
385
HOSE , Replaced By: A3449970482
390
PART NAME MISSING. LOOM TIE FROM RADIATOR TO EXPANSION TANK,630854
390
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
390
CLAMP HOSE TO FITTING AND TO OIL TANK
390
LOOM TIE. CLAMP HOSE TO HEATING PIPE
395
DRAIN COCK HEATING RETURN
395
VALVE , Replaced By: A3445007025
400
SPRING ,4 263013
405
SEALING RING. SEAL RING ENGINE BREATHING
410
HOSE BRACKET TO RETAINING CLAMP,JB796308
415
LINE FROM THERMOSTAT TO RADIATOR
415
LINE , Replaced By: A3445000189
420
HOSE BRACKET TO RETAINING CLAMP,JB796308
425
HOSE
425
HOSE , Replaced By: A3445010182
430
LOOM TIE HOSE TO FILLER NECK
430
CLAMP , Replaced By: A0019972590
435
LOOM TIE. CLAMP FEED, FROM ENGINE TO RETARDER
435
CLAMP. LOOM TIE (DRY FILTER)
440
BREATHER PIPE
440
COOLING WATER PIPE , Replaced By: A3445010025
445
HOSE
450
PART NAME MISSING. LOOM TIE FROM RADIATOR TO EXPANSION TANK,630854
450
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
450
CLAMP HOSE TO FITTING AND TO OIL TANK
450
LOOM TIE. CLAMP HOSE TO HEATING PIPE
455
BRACKET
455
BRACKET , Replaced By: A3445010220
999
999
999
999
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
