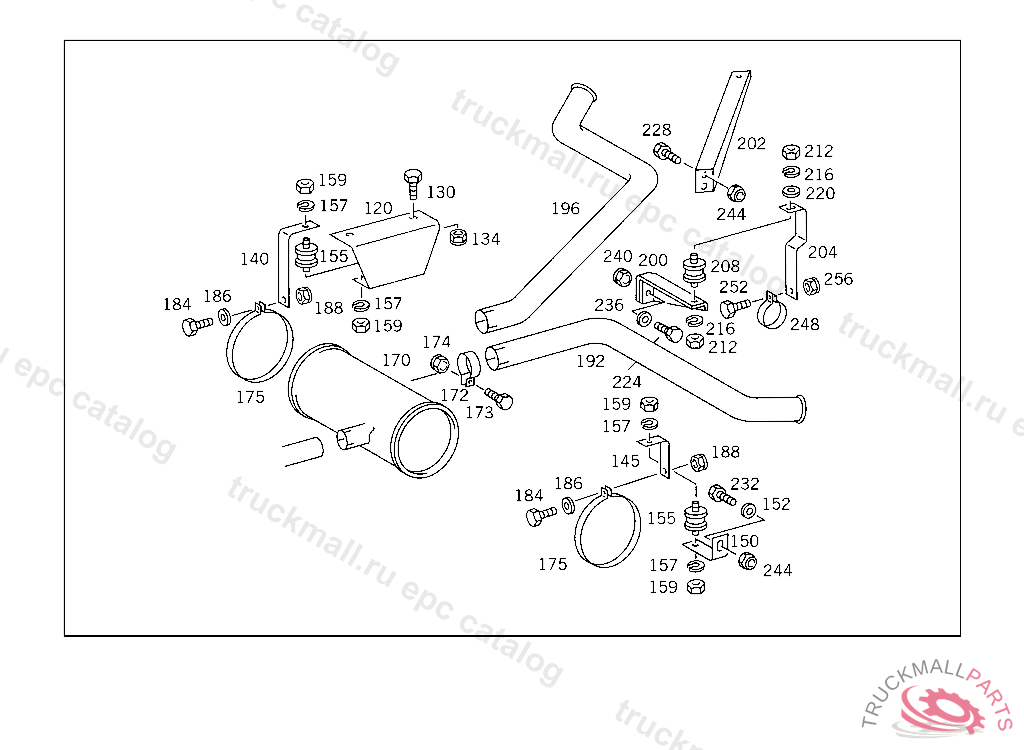

Поз.
Артикул
Описание
120
BRACKET EXHAUST MUFFLER TO CROSS MEMBER
130
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
130
SCREW , Replaced By: N308676012026
134
NUT SUPPORT TO SIDE MEMBER
140
BRACKET RUBBER MOUNT
145
BRACKET REAR EXHAUST PIPE
150
BRACKET EXHAUST MUFFLER TO SIDE MEMBER
152
WASHER , Replaced By: N000125015019
152
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
155
RUBBER MOUNTING
157
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
159
NUT BRACKET TO SUPPORT AND TO END PIECE
170
EXHAUST MUFFLER ,4 858540
172
CLAMP INTERMEDIATE PIECE
172
CLAMP EXHAUST PIPE TO MUFFLER,4 858540
173
SCREW BRACKET TO SIDE MEMBER
173
SCREW , Replaced By: N304017010002
174
NUT , Replaced By: N910113010000
174
NUT STRAP TO BRACKET
175
CLAMP EXHAUST MUFFLER TO BRACKET
184
SCREW BRACKET TO SUPPORT
186
WASHER , Replaced By: N000125010532
186
WASHER RADIATOR TO RUBBER MOUNTING
188
NUT , Replaced By: N910113010000
188
NUT STRAP TO BRACKET
192
REAR EXHAUST PIPE ,4 858540
196
REAR EXHAUST PIPE ,4 858540
200
BRACKET EXHAUST MUFFLER, TO BE ADAPTED DURING ASSEMBLY
202
BRACKET REAR EXHAUST PIPE,4 858540
204
BRACKET REAR EXHAUST PIPE,4 858540
208
RUBBER MOUNTING
212
NUT BRACKET TO SUPPORT AND TO END PIECE
216
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
220
WASHER RADIATOR TO RUBBER MOUNTING
220
WASHER , Replaced By: N000125010532
224
SCREW SUPPORT TO CROSS MEMBER M 10X28
228
SCREW BRACKET TO SIDE MEMBER
232
SCREW , Replaced By: N308676014020
232
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
236
WASHER RADIATOR TO RUBBER MOUNTING
236
WASHER , Replaced By: N000125010532
240
NUT STRAP TO BRACKET
240
NUT , Replaced By: N910113010000
244
NUT , Replaced By: N910113014001
244
NUT BRACKET TO SIDE MEMBER
248
CLAMP INTERMEDIATE PIECE
252
SCREW , Replaced By: N304017010002
252
SCREW BRACKET TO SIDE MEMBER
256
NUT , Replaced By: N910113010000
256
NUT STRAP TO BRACKET
999
CLAMP , Replaced By: A3874900041
999
PROTECTIVE PLATE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3464900330
999
SCREW BRACKET TO SIDE MEMBER M 12X40
