Поз.
Артикул
Описание

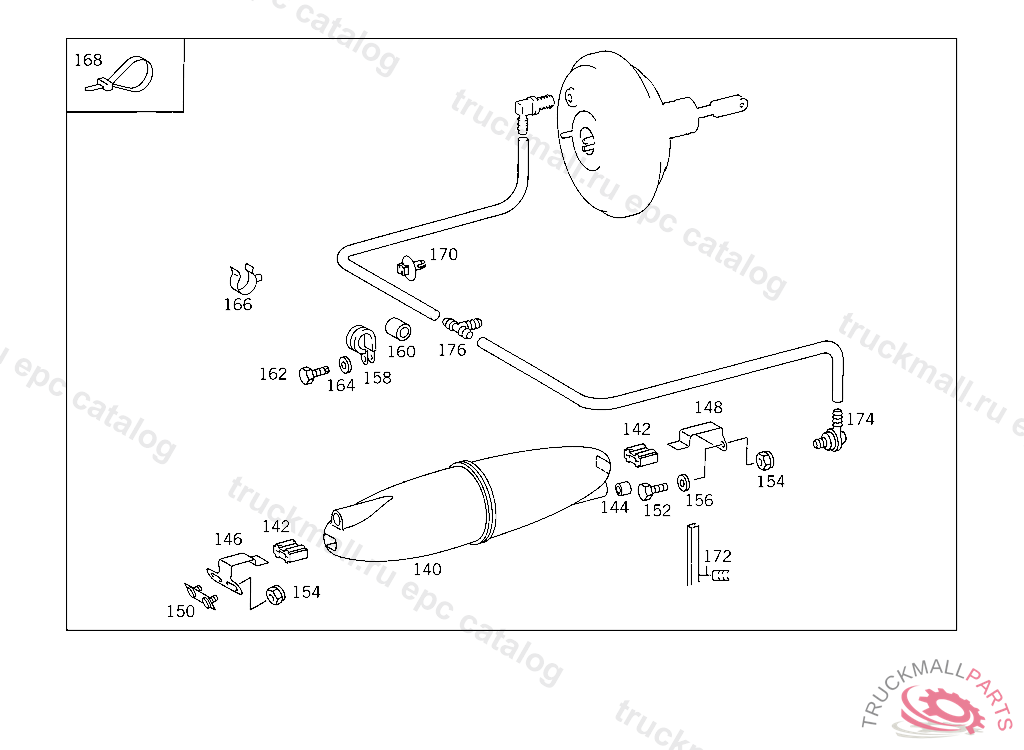

140
RESERVOIR VACUUM TANK 5 L
142
RUBBER BUFFER VACUUM TANK TO BRACKET
144
GASKET AT AIR RESERVOIR
146
BRACKET RESERVOIR, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
148
BRACKET RESERVOIR, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
150
BRACKET BRACKET TO FRAME, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
152
SCREW PIPE CLAMP
154
NUT STRAP TO BRACKET
156
WASHER EXHAUST MUFFLER TO STRAP
158
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
160
SPACER TUBE REFRIGERANT LINE TO CAB
160
HOSE (RETURN LINE),FROM STEERING TO OIL TANK
160
SPACER TUBE , Replaced By: A1242670050
162
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
166
CLAMP6/14-15 MM
166
CLAMP
168
LOOM TIE LINE MOUNTING 280 MM
170
FASTENER BUTTON , Replaced By: A0019881581
170
FASTENER BUTTON ELECTRIC CABLE TO FIRE WALL
174
VALVE (CHECK VALVE), FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
174
VALVE
176
T-FITTING
